1b55
;PH DOMAIN FROM BRUTON'S TYROSINE KINASE IN COMPLEX WITH INOSITOL 1,3,4,5-TETRAKISPHOSPHATE ;
SAXS Profile

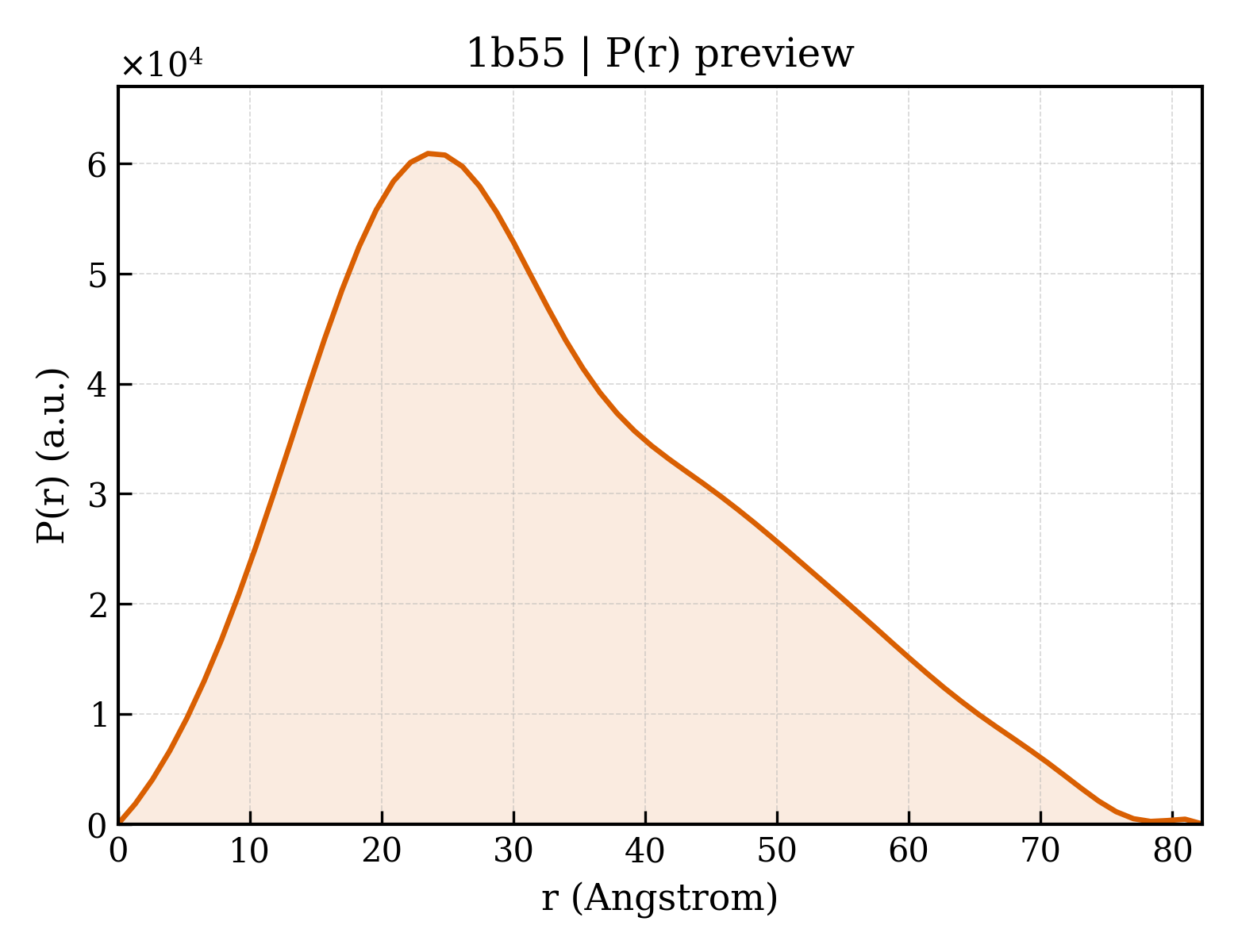

P(r) Distribution
1. Structure Basics
| entry_id | 1b55 |
| deposition_date | 1999-01-12 |
| title | ;PH DOMAIN FROM BRUTON'S TYROSINE KINASE IN COMPLEX WITH INOSITOL 1,3,4,5-TETRAKISPHOSPHATE ; |
| keywords | ;TRANSFERASE, PH DOMAIN, BTK MOTIF, ZINC BINDING, X-LINKED AGAMMAGLOBULINEMIA, TYROSINE-PROTEIN KINASE, INOSITOL 1, 3, 4, 5-TETRAKISPHOSPHATE ;; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.13 Å |
| rg_electron | 24.17 Å |
| i0 | 27113200.00 |
| molecular_weight | 39588.0 kDa |
| excluded_volume | 49494 ų |
| envelope_volume | 59610 ų |
| shell_volume | 21746 ų |
| envelope_diameter | 84.0 Å |
| shell_rg | 29.89 Å |
| envelope_rg | 24.47 Å |
| shape_rg | 24.08 Å |
| total_rg | 25.19 Å |
| total_atoms | 2768 |
| n_residues | 325 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.3 Å |
| rg_real | 25.30 Å |
| rg_real_error | 0.67 Å |
| i0_real | 2.7110e+07 |
| i0_real_error | 4.0580e+05 |
| rg_reciprocal | 25.25 Å |
| i0_reciprocal | 27110000.0000 |
| total_estimate | 0.8466 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.5 Å |
| skewness | 0.510 |
| kurtosis | -0.406 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5954000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.825; Smooth: 0.934 |
