1b5j
OLIGO-PEPTIDE BINDING PROTEIN (OPPA) COMPLEXED WITH KQK

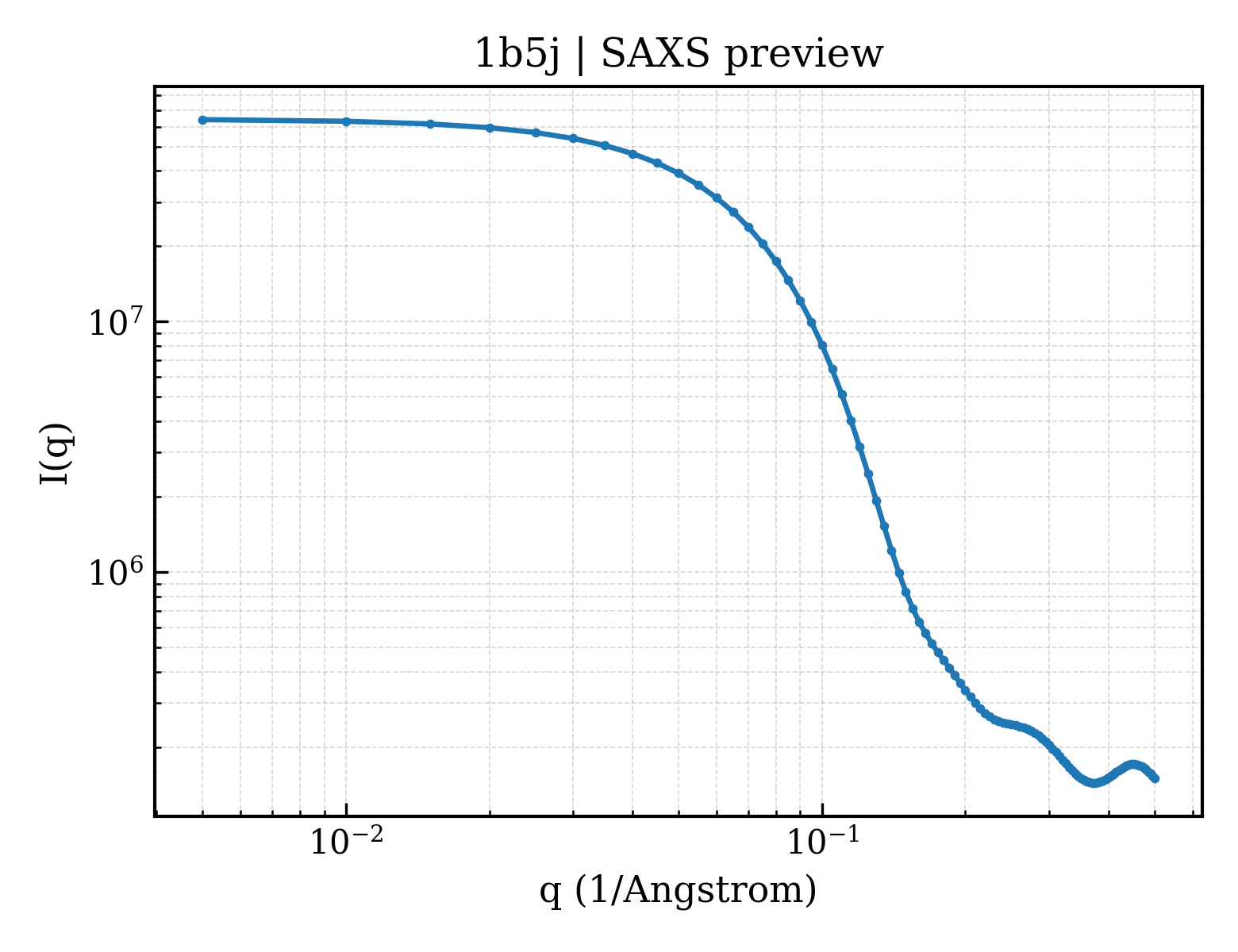

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b5j |
| deposition_date | 1999-01-06 |
| title | OLIGO-PEPTIDE BINDING PROTEIN (OPPA) COMPLEXED WITH KQK |
| keywords | COMPLEX (PEPTIDE TRANSPORT-PEPTIDE), PEPTIDE TRANSPORT, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.39 Å |
| rg_electron | 23.15 Å |
| i0 | 64329100.00 |
| molecular_weight | 61109.0 kDa |
| excluded_volume | 74974 ų |
| envelope_volume | 84504 ų |
| shell_volume | 29711 ų |
| envelope_diameter | 80.7 Å |
| shell_rg | 30.98 Å |
| envelope_rg | 23.32 Å |
| shape_rg | 22.96 Å |
| total_rg | 24.52 Å |
| total_atoms | 4201 |
| n_residues | 520 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.8 Å |
| rg_real | 24.27 Å |
| rg_real_error | 0.39 Å |
| i0_real | 6.4330e+07 |
| i0_real_error | 8.0720e+05 |
| rg_reciprocal | 24.30 Å |
| i0_reciprocal | 64330000.0000 |
| total_estimate | 0.9006 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 29.3 Å |
| skewness | 0.223 |
| kurtosis | -0.397 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10160000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.993 |
