1b5m
RAT OUTER MITOCHONDRIAL MEMBRANE CYTOCHROME B5

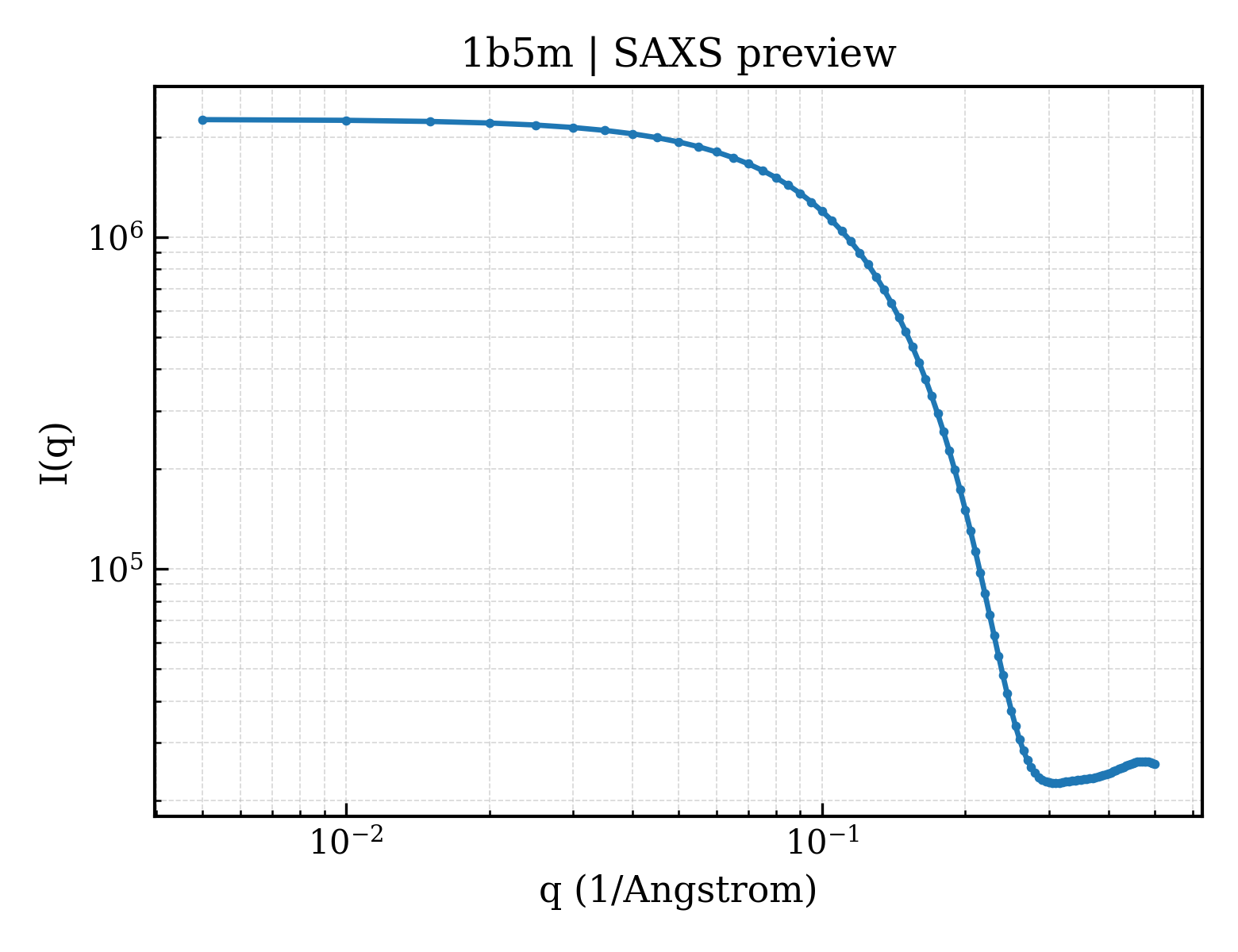

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b5m |
| deposition_date | 1996-11-07 |
| title | RAT OUTER MITOCHONDRIAL MEMBRANE CYTOCHROME B5 |
| keywords | CYTOCHROME, ELECTRON TRANSPORT, HEME; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.73 Å |
| rg_electron | 12.35 Å |
| i0 | 2262760.00 |
| molecular_weight | 10184.0 kDa |
| excluded_volume | 12617 ų |
| envelope_volume | 13835 ų |
| shell_volume | 9732 ų |
| envelope_diameter | 41.0 Å |
| shell_rg | 17.83 Å |
| envelope_rg | 12.72 Å |
| shape_rg | 12.34 Å |
| total_rg | 13.66 Å |
| total_atoms | 719 |
| n_residues | 84 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.2 Å |
| rg_real | 13.65 Å |
| rg_real_error | 0.24 Å |
| i0_real | 2.2630e+06 |
| i0_real_error | 2.4380e+04 |
| rg_reciprocal | 13.66 Å |
| i0_reciprocal | 2263000.0000 |
| total_estimate | 0.7447 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.161 |
| kurtosis | -0.336 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 349800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.876; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.993; Smooth: 0.951 |
