SAXSdb — 1b69

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (INTEGRASE)

Enterococcus faecalis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 3–71	Fragment：N-TERMINAL DNA BINDING DOMAIN Mutation：C57A	;DNA (5'-D(GPAPGPTPAPGPTPAPAPAPTPTPC)-3') ; × 1 ;DNA (5'-D(GPAPAPTPTPTPAPCPTPAPCPTPC)-3') ; × 1	SOLUTION NMR NMR measurement conditions：pH 6；305 K	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1B69	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BB8 N-TERMINAL DNA BINDING DOMAIN FROM TN916 INTEGRASE, NMR, 25 STRUCTURES Deposited 1998-04-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–73（71 aa） Fragment：N-TERMINAL DNA BINDING DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；300 K NMR sample composition H2O	Resolution not provided
1TN9 THE SOLUTION STRUCTURE OF TN916 INTEGRASE N-TERMINAL DOMAIN/DNA COMPLEX Deposited 1999-01-21	Parsed fields agree	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 3–71（69 aa） Fragment：N-TERMINAL DNA BINDING DOMAIN	Mutation：C57A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；305 K	Resolution not provided
2BB8 N-TERMINAL DNA BINDING DOMAIN FROM TN916 INTEGRASE, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-05-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–73（71 aa） Fragment：N-TERMINAL DNA BINDING DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；300 K NMR sample composition H2O	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNR6_ENTFA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–69； UniProt 3–71

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b69
Deposition date deposition_date	1999-01-21
Structure title title	THE SOLUTION STRUCTURE OF TN916 INTEGRASE N-TERMINAL DOMAIN/DNA COMPLEX
Keywords keywords	INTEGRASE, DNA BINDING, TRANSPOSITION, COMPLEX, BETA-SHEET RECOGNITION, INTEGRASE-DNA COMPLEX; INTEGRASE/DNA
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.51 Å
Radius of gyration Rg (electron density) rg_electron	15.48 Å
Forward intensity I(0) i0	8196470.00
Molecular weight molecular_weight	16078.0 kDa
Excluded volume excluded_volume	17974 Å³
Envelope volume envelope_volume	23317 Å³
Hydration-shell volume shell_volume	13042 Å³
Envelope diameter envelope_diameter	54.7 Å
Shell Rg shell_rg	20.90 Å
Envelope Rg envelope_rg	15.81 Å
Shape Rg shape_rg	15.40 Å
Total Rg total_rg	16.47 Å
Total atoms total_atoms	1991
Residues n_residues	95
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.3 Å
Rg (real space) rg_real	16.44 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	8.1960e+06
I(0) uncertainty (real space) i0_real_error	9.3230e+04
Rg (reciprocal space) rg_reciprocal	16.44 Å
I(0) (reciprocal space) i0_reciprocal	8196000.0000
Solution quality estimate total_estimate	0.8839
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	53.9 Å
Skewness Skewness skewness	0.212
Kurtosis Kurtosis kurtosis	-0.402
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1317000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(GPAPGPTPAPGPTPAPAPAPTPTP*C)-3') ;
Molecular weight formula_weight	4014.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	1991

GAGTAGTAAATTC

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(GPAPAPTPTPTPAPCPTPAPCPTP*C)-3') ;
Molecular weight formula_weight	3925.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GAATTTACTACTC

Entity 3 Entity 3 polymer

Description description	PROTEIN (INTEGRASE)
Molecular weight formula_weight	8177.3 kDa
Mutation mutation	C57A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

EKRRDNRGRILKTGESQRKDGRYLYKYIDSFGEPQFVYSWKLVATDRVPAGKRDAISLREKIAELQKDI

来源 Source

来源生物 organism	Enterococcus faecalis
NCBI Class编号 ncbi_taxonomy_id	1351
宿主生物 host_organism	Escherichia coli BL21(DE3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1b69a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.10 — DNA-binding domain
Superfamily Superfamily superfamily	d.10.1 — DNA-binding domain
Family Family family	d.10.1.1 — DNA-binding domain from tn916 integrase

CATH v4.4 (1 domains)

Domain ID domain_id	1b69A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/b6/1b69/1b69.fit
pddf	/app/data/pr_computation/b6/1b69/1b69.pr.out
profile	/app/data/saxs_computation/b6/1b69/1b69.dat

THE SOLUTION STRUCTURE OF TN916 INTEGRASE N-TERMINAL DOMAIN/DNA COMPLEX

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (INTEGRASE)

State in the Current Structure

Other States of the Same Protein in the Database

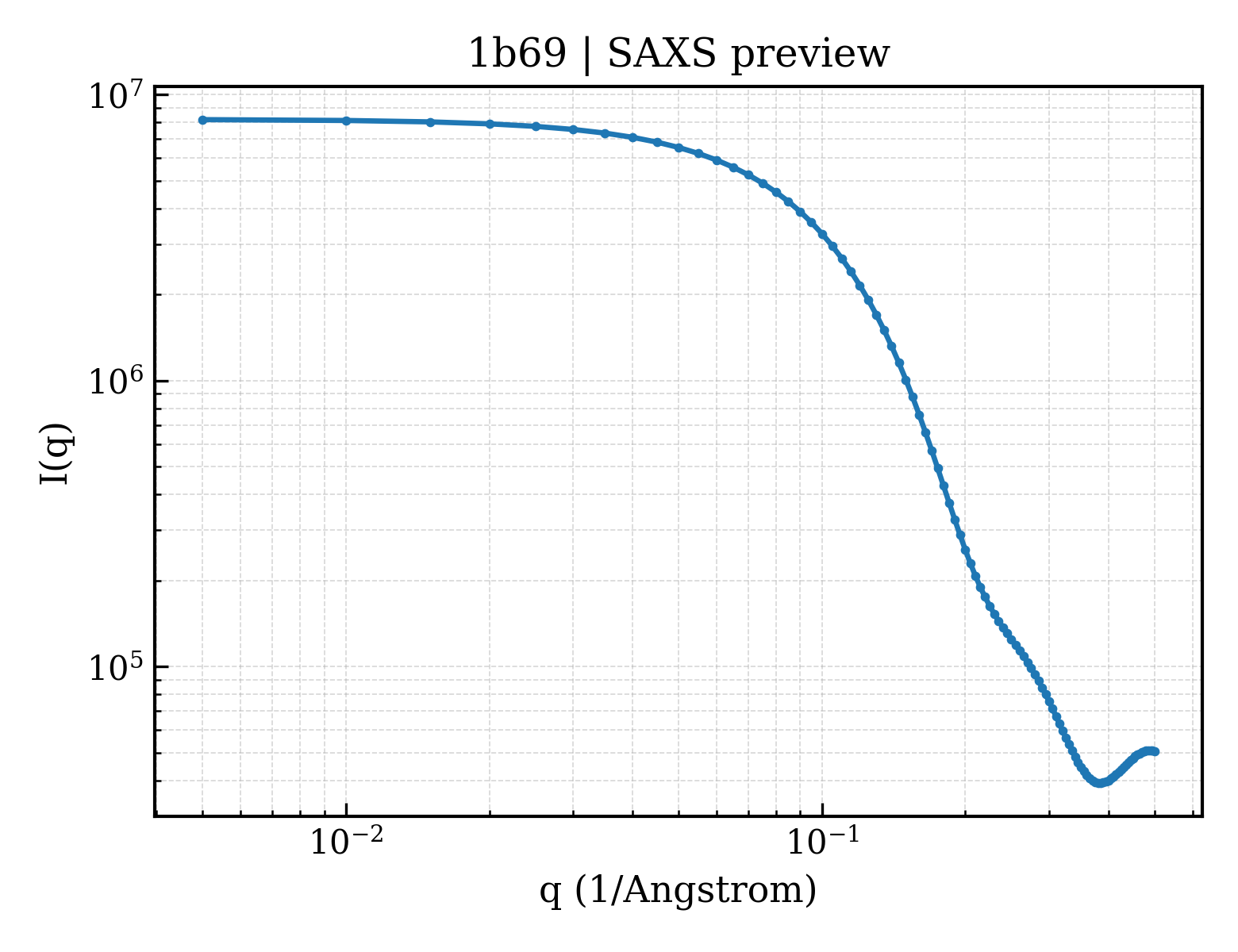

SAXS scattering curve SAXS Profile
