1b6s

STRUCTURE OF N5-CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHETASE

Method: X-RAY DIFFRACTION D_max: 141.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (N5-CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHETASE)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–355 Chain B； UniProt 1–355	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.50 Å
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–355 Chain D； UniProt 1–355	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1B6S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B6R N5-CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHETASE FROM E. COLI Deposited 1999-01-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–355（355 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.8；100MM HEPPS, PH 7.8 0.575 M AMMONIUM SULFATE	Resolution 2.10 Å
3ETH Crystal structure of E. coli Purk in complex with MgATP Deposited 2008-10-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–355（355 aa） Chain B 1–355（355 aa）	Mutation：E61Q, Q205R Mutation：E61Q, Q205R	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20-25% monomethylether poly(ethylene glycol) 5000, 10 mM MgATP, 10 mM aminopyrazole ribonucleotide, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.228
3ETJ Crystal structure E. coli Purk in complex with Mg, ADP, and Pi Deposited 2008-10-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–355（355 aa） Chain B 1–355（355 aa）	Mutation：E61Q, Q205R Mutation：E61Q, Q205R	ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 4 PI HYDROGENPHOSPHATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；monomethylether poly(ethylene glycol) 5000, MgATP, 5-aminoimidazole ribonucleotide, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.215

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PURK_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–355； UniProt 1–355 Author chain B； PDBConstruct 1–355； UniProt 1–355 Author chain C； PDBConstruct 1–355； UniProt 1–355 Author chain D； PDBConstruct 1–355； UniProt 1–355

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b6s
Deposition date deposition_date	1999-01-18
Structure title title	STRUCTURE OF N5-CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHETASE
Keywords keywords	ATP-GRASP, CARBOXYPHOSPHATE, PURINE BIOSYNTHESIS, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.77 Å
Radius of gyration Rg (electron density) rg_electron	41.55 Å
Forward intensity I(0) i0	374837000.00
Molecular weight molecular_weight	158110.0 kDa
Excluded volume excluded_volume	197690 Å³
Envelope volume envelope_volume	253570 Å³
Hydration-shell volume shell_volume	52014 Å³
Envelope diameter envelope_diameter	148.7 Å
Shell Rg shell_rg	45.60 Å
Envelope Rg envelope_rg	41.10 Å
Shape Rg shape_rg	41.56 Å
Total Rg total_rg	41.72 Å
Total atoms total_atoms	11141
Residues n_residues	1406
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

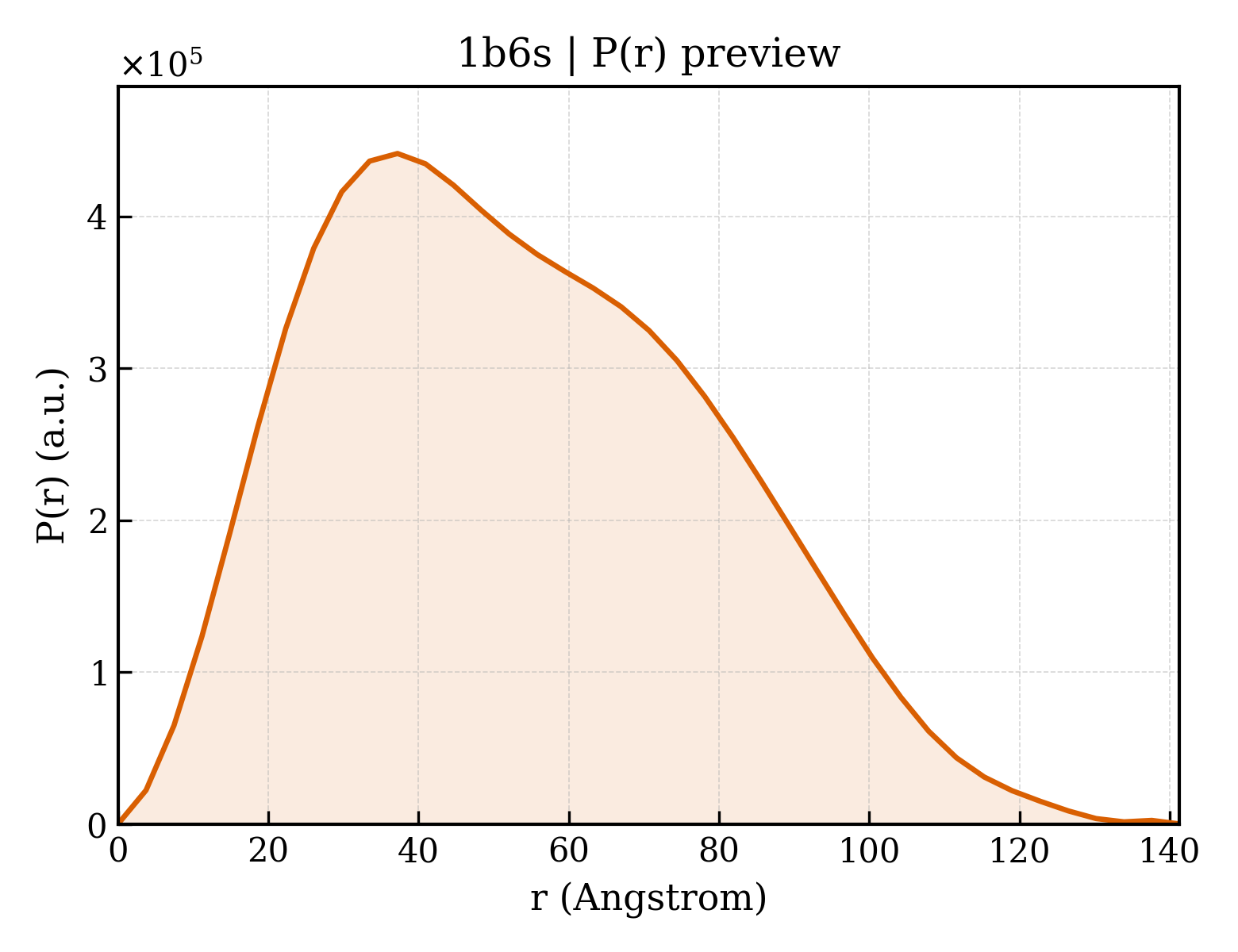

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	141.3 Å
Rg (real space) rg_real	41.91 Å
Rg uncertainty (real space) rg_real_error	1.28 Å
I(0) (real space) i0_real	3.7480e+08
I(0) uncertainty (real space) i0_real_error	6.4820e+06
Rg (reciprocal space) rg_reciprocal	41.77 Å
I(0) (reciprocal space) i0_reciprocal	374800000.0000
Solution quality estimate total_estimate	0.8640
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.2 Å
Skewness Skewness skewness	0.366
Kurtosis Kurtosis kurtosis	-0.551
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	93400000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.826; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.807

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (N5-CARBOXYAMINOIMIDAZOLE RIBONUCLEOTIDE SYNTHETASE)
Molecular weight formula_weight	39529.0 kDa
EC 编号 ec_number	4.1.1.21
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11632

MKQVCVLGNGQLGRMLRQAGEPLGIAVWPVGLDAEPAAVPFQQSVITAEIERWPETALTRELARHPAFVNRDVFPIIADRLTQKQLFDKLHLPTAPWQLLAERSEWPAVFDRLGELAIVKRRTGGYDGRGQWRLRANETEQLPAECYGECIVEQGINFSGEVSLVGARGFDGSTVFYPLTHNLHQDGILRTSVAFPQANAQQQARAEEMLSAIMQELGYVGVMAMECFVTPQGLLINELAPRVHNSGHWTQNGASISQFELHLRAITDLPLPQPVVNNPSVMINLIGSDVNYDWLKLPLVHLHWYDKEVRPGRKVGHLNLTDSDTSRLTATLEALIPLLPPEYASGVIWAQSKFG

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	491

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1b6sa1
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.2 — Rudiment single hybrid motif
Family Family family	b.84.2.1 — BC C-terminal domain-like

Domain ID domain_id	d1b6sa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.1 — BC N-terminal domain-like

Domain ID domain_id	d1b6sa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.2 — BC ATP-binding domain-like

Domain ID domain_id	d1b6sb1
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.2 — Rudiment single hybrid motif
Family Family family	b.84.2.1 — BC C-terminal domain-like

Domain ID domain_id	d1b6sb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.1 — BC N-terminal domain-like

Domain ID domain_id	d1b6sb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.2 — BC ATP-binding domain-like

Domain ID domain_id	d1b6sc1
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.2 — Rudiment single hybrid motif
Family Family family	b.84.2.1 — BC C-terminal domain-like

Domain ID domain_id	d1b6sc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.1 — BC N-terminal domain-like

Domain ID domain_id	d1b6sc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.2 — BC ATP-binding domain-like

Domain ID domain_id	d1b6sd1
Class class	b — All beta proteins
Fold Fold fold	b.84 — Barrel-sandwich hybrid
Superfamily Superfamily superfamily	b.84.2 — Rudiment single hybrid motif
Family Family family	b.84.2.1 — BC C-terminal domain-like

Domain ID domain_id	d1b6sd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.1 — BC N-terminal domain-like

Domain ID domain_id	d1b6sd3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.2 — BC ATP-binding domain-like

CATH v4.4 (12 domains)

Domain ID domain_id	1b6sA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1b6sA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1b6sA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

Domain ID domain_id	1b6sB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1b6sB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1b6sB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

Domain ID domain_id	1b6sC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1b6sC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1b6sC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

Domain ID domain_id	1b6sD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1b6sD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1b6sD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, A domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	60.600 Å
Unit-cell length b length_b	92.100 Å
Unit-cell length c length_c	102.600 Å
Unit-cell angle α angle_alpha	66.10 °
Unit-cell angle β angle_beta	82.70 °
Unit-cell angle γ angle_gamma	81.80 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1850
R_free r_free	—
