1b9u
MEMBRANE DOMAIN OF THE SUBUNIT B OF THE E.COLI ATP SYNTHASE

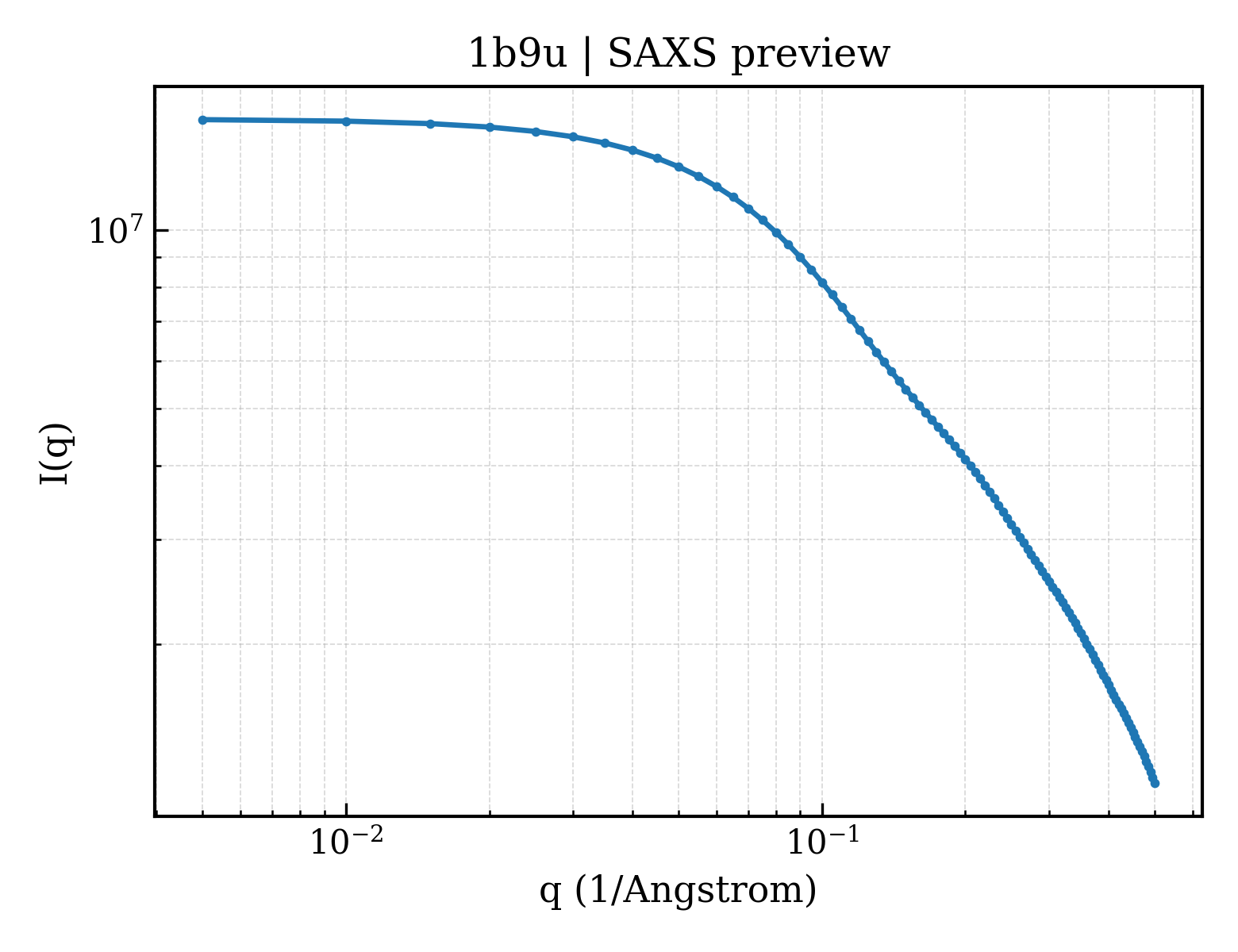

SAXS Profile

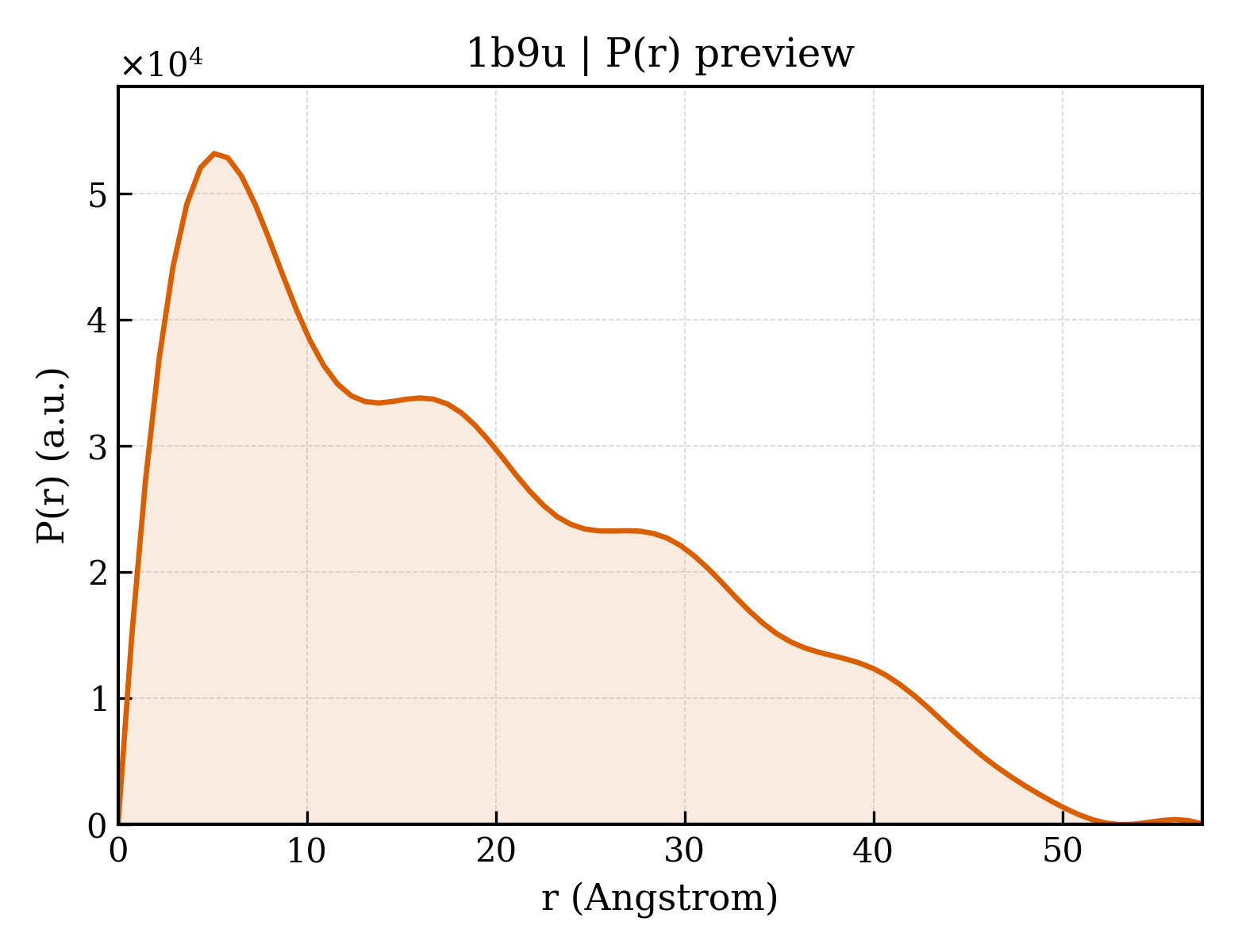

P(r) Distribution
1. Structure Basics
| entry_id | 1b9u |
| deposition_date | 1999-02-15 |
| title | MEMBRANE DOMAIN OF THE SUBUNIT B OF THE E.COLI ATP SYNTHASE |
| keywords | ATP SYNTHASE, MEMBRANE PROTEIN, HYDROLASE; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.67 Å |
| rg_electron | 14.45 Å |
| i0 | 15374200.00 |
| molecular_weight | 38308.0 kDa |
| excluded_volume | 50423 ų |
| envelope_volume | 9274 ų |
| shell_volume | 6124 ų |
| envelope_diameter | 59.9 Å |
| shell_rg | 18.67 Å |
| envelope_rg | 17.22 Å |
| shape_rg | 14.31 Å |
| total_rg | 15.26 Å |
| total_atoms | 5520 |
| n_residues | 330 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.4 Å |
| rg_real | 15.22 Å |
| rg_real_error | 0.71 Å |
| i0_real | 1.5370e+07 |
| i0_real_error | 1.9580e+05 |
| rg_reciprocal | 15.17 Å |
| i0_reciprocal | 15370000.0000 |
| total_estimate | 0.6127 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 5.1 Å |
| skewness | 0.594 |
| kurtosis | -0.604 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4462.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.001; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.959 |
