1bb6
LYSOZYME COMPLEX WITH 4-METHYL-UMBELLIFERYL CHITOTRIOSE
SAXS Profile

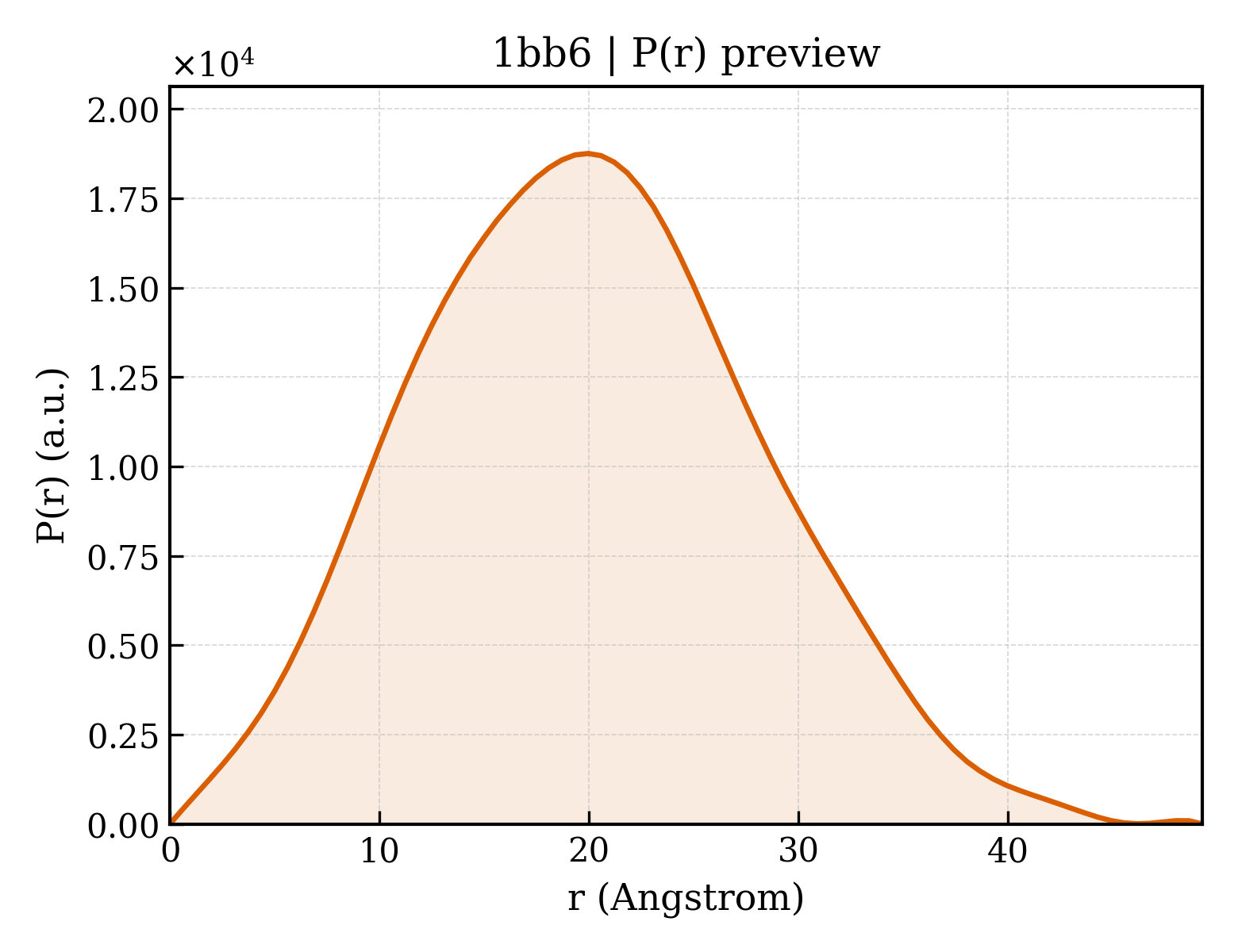

P(r) Distribution
1. Structure Basics
| entry_id | 1bb6 |
| deposition_date | 1998-04-29 |
| title | LYSOZYME COMPLEX WITH 4-METHYL-UMBELLIFERYL CHITOTRIOSE |
| keywords | HYDROLASE, N-ACETYL-MURAMIDASE, UMBELLIFERONE GLYCOSIDES; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.30 Å |
| rg_electron | 13.97 Å |
| i0 | 4939140.00 |
| molecular_weight | 15059.0 kDa |
| excluded_volume | 18440 ų |
| envelope_volume | 20378 ų |
| shell_volume | 12417 ų |
| envelope_diameter | 48.9 Å |
| shell_rg | 19.68 Å |
| envelope_rg | 14.24 Å |
| shape_rg | 13.94 Å |
| total_rg | 15.11 Å |
| total_atoms | 1054 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.3 Å |
| rg_real | 15.21 Å |
| rg_real_error | 0.23 Å |
| i0_real | 4.9390e+06 |
| i0_real_error | 5.5690e+04 |
| rg_reciprocal | 15.22 Å |
| i0_reciprocal | 4939000.0000 |
| total_estimate | 0.8867 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.0 Å |
| skewness | 0.197 |
| kurtosis | -0.314 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 935600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.970 |
