1bbg
RAGWEED POLLEN ALLERGEN FROM AMBROSIA TRIFIDA V, NMR, MINIMIZED AVERAGE STRUCTURE

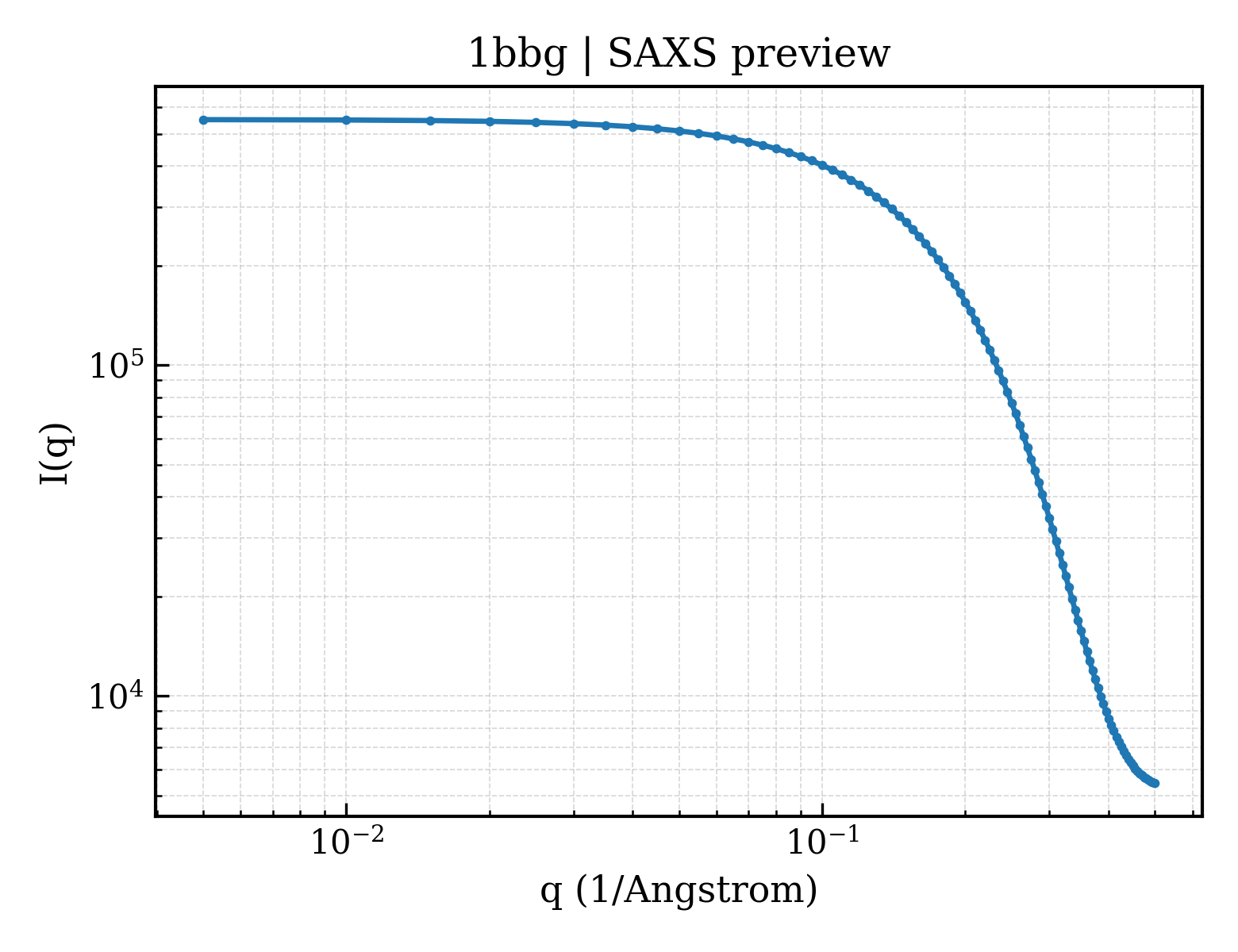

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bbg |
| deposition_date | 1998-04-24 |
| title | RAGWEED POLLEN ALLERGEN FROM AMBROSIA TRIFIDA V, NMR, MINIMIZED AVERAGE STRUCTURE |
| keywords | PROTEIN ALLERGEN, SMALL HIGHLY DISULFIDE BONDED, ALLERGEN; ALLERGEN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.75 Å |
| rg_electron | 8.78 Å |
| i0 | 551788.00 |
| molecular_weight | 4322.0 kDa |
| excluded_volume | 5216 ų |
| envelope_volume | 5418 ų |
| shell_volume | 5561 ų |
| envelope_diameter | 30.3 Å |
| shell_rg | 13.70 Å |
| envelope_rg | 9.32 Å |
| shape_rg | 8.82 Å |
| total_rg | 10.17 Å |
| total_atoms | 568 |
| n_residues | 40 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.1 Å |
| rg_real | 9.74 Å |
| rg_real_error | 0.26 Å |
| i0_real | 5.5180e+05 |
| i0_real_error | 5.4020e+03 |
| rg_reciprocal | 9.74 Å |
| i0_reciprocal | 551800.0000 |
| total_estimate | 0.8735 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.3 Å |
| skewness | 0.344 |
| kurtosis | -0.167 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 94190.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.961 |
