1bbi
THREE-DIMENSIONAL STRUCTURE OF SOYBEAN TRYPSIN(SLASH)CHYMOTRYPSIN BOWMAN-BIRK INHIBITOR IN SOLUTION
SAXS Profile

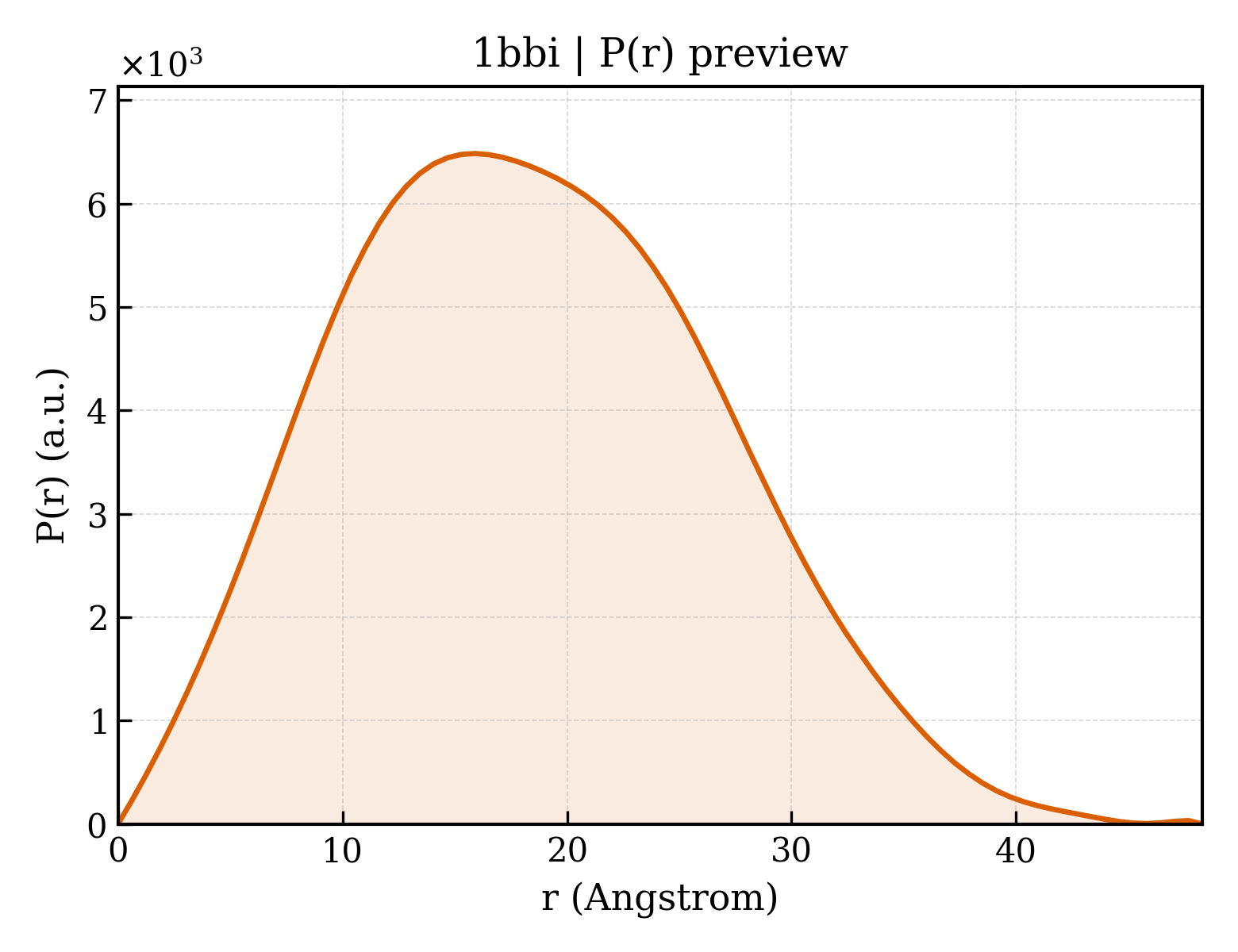

P(r) Distribution
1. Structure Basics
| entry_id | 1bbi |
| deposition_date | 1991-09-19 |
| title | THREE-DIMENSIONAL STRUCTURE OF SOYBEAN TRYPSIN(SLASH)CHYMOTRYPSIN BOWMAN-BIRK INHIBITOR IN SOLUTION |
| keywords | SERINE PROTEASE INHIBITOR, HYDROLASE INHIBITOR; HYDROLASE INHIBITOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.25 Å |
| rg_electron | 13.55 Å |
| i0 | 1840440.00 |
| molecular_weight | 7868.0 kDa |
| excluded_volume | 9272 ų |
| envelope_volume | 12510 ų |
| shell_volume | 8550 ų |
| envelope_diameter | 46.8 Å |
| shell_rg | 18.09 Å |
| envelope_rg | 13.99 Å |
| shape_rg | 13.67 Å |
| total_rg | 14.37 Å |
| total_atoms | 536 |
| n_residues | 71 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.3 Å |
| rg_real | 14.25 Å |
| rg_real_error | 0.33 Å |
| i0_real | 1.8400e+06 |
| i0_real_error | 2.0160e+04 |
| rg_reciprocal | 14.25 Å |
| i0_reciprocal | 1840000.0000 |
| total_estimate | 0.8889 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.9 Å |
| skewness | 0.252 |
| kurtosis | -0.438 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 224300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.914; Smooth: 0.957 |
