SAXSdb — 1bbs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RENIN

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 3	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RENI_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–340； UniProt 67–406 Author chain B； PDBConstruct 1–340； UniProt 67–406

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bbs
Deposition date deposition_date	1992-05-21
Structure title title	X-RAY ANALYSES OF PEPTIDE INHIBITOR COMPLEXES DEFINE THE STRUCTURAL BASIS OF SPECIFICITY FOR HUMAN AND MOUSE RENINS
Keywords keywords	ASPARTIC PROTEINASE; ASPARTIC PROTEINASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1bbs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1bbs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

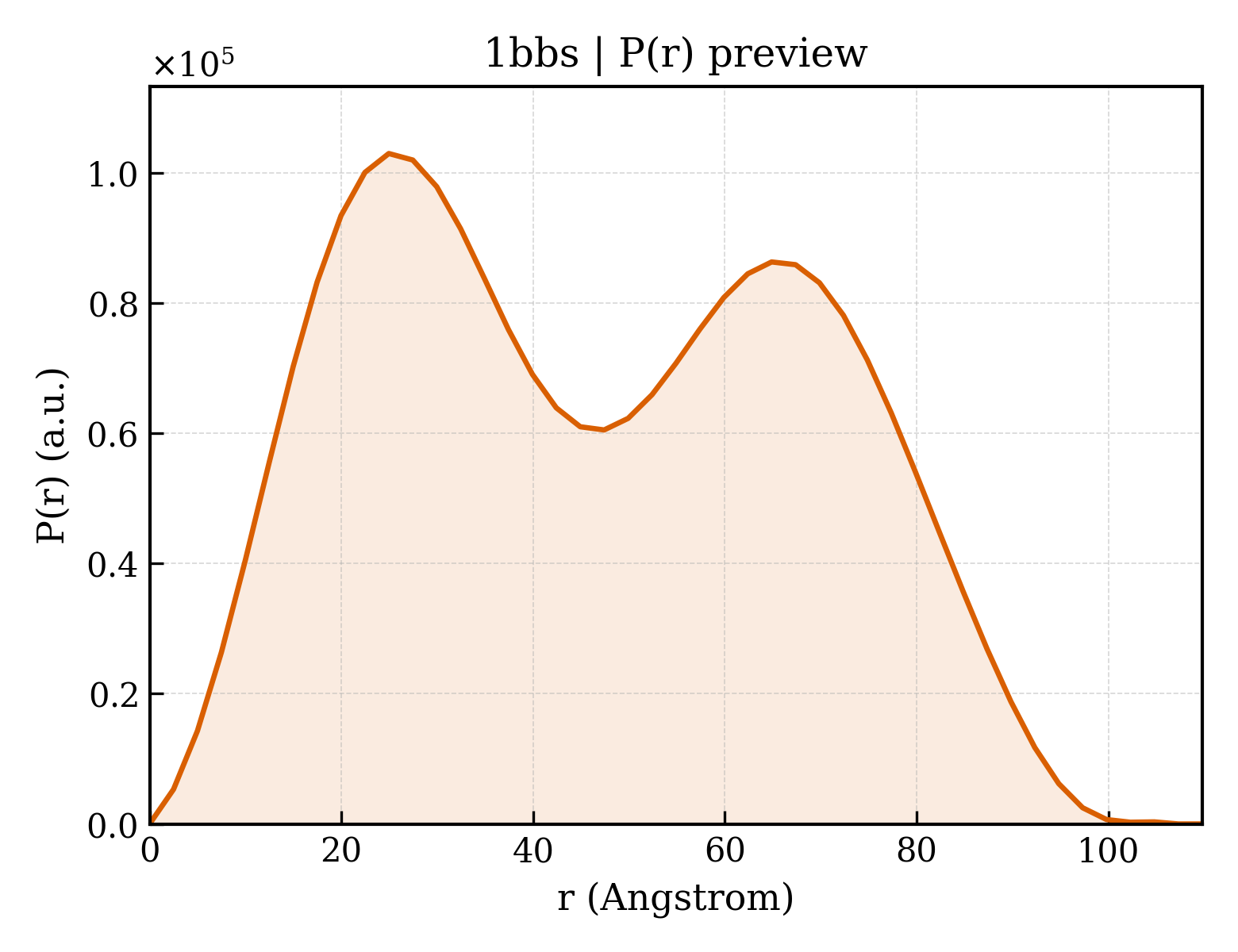

1bbs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.01 Å
Rg (electron density)	19.83 Å
Total Rg	20.82 Å
Atom count	2509
Residues	331
Excluded volume	44727 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1bbs__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1bbs__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1bbs__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1bbs__assembly_4__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1bbsa_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.2 — Pepsin-like

Domain ID domain_id	d1bbsb_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.2 — Pepsin-like

CATH v4.4 (4 domains)

Domain ID domain_id	1bbsA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1bbsA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1bbsB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1bbsB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

▶

Unit-cell length a length_a	143.100 Å
Unit-cell length b length_b	143.100 Å
Unit-cell length c length_c	143.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1960
R_work r_work	—
R_free r_free	—

Description description	RENIN
Molecular weight formula_weight	37267.0 kDa
EC 编号 ec_number	3.4.23.15
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5018

X-RAY ANALYSES OF PEPTIDE INHIBITOR COMPLEXES DEFINE THE STRUCTURAL BASIS OF SPECIFICITY FOR HUMAN AND MOUSE RENINS
