SAXSdb — 1bde

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VPR PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 50–82	Fragment：VPR 50-82 Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5；298 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR sample composition：50% TFE-D3/50% H2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BDE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DSJ NMR SOLUTION STRUCTURE OF VPR50_75, 20 STRUCTURES Deposited 1997-10-23	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 50–75（26 aa） Fragment：RESIDUES 50 - 75	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.3；298 K	Resolution not provided
1DSK NMR SOLUTION STRUCTURE OF VPR59_86, 20 STRUCTURES Deposited 1997-10-23	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–86（28 aa） Fragment：RESIDUES 59 - 86	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.3；298 K	Resolution not provided
1KZS Structure of Human Immunodeficiency Virus Type 1 Vpr(34-51) Peptide in Aqueous TFE Solution Deposited 2002-02-08	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–51（18 aa） Fragment：RESIDUES 34-51	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 2 mM Vpr(34-51); 50 % H2O, 50 % TFE \| 50 % H2O, 50 % TFE	Resolution not provided
1KZT Structure of Human Immunodeficiency Virus Type 1 Vpr(34-51) Peptide in DPC Micelle Containing Aqueous Solution Deposited 2002-02-08	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–51（18 aa） Fragment：RESIDUES 34-51	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；298 K；Ionic strength (raw mmCIF value) 100mM；Pressure ambient NMR sample composition 2mM Vpr(34-51); 100mM Dodecylphosphocholine d38; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
1KZV Structure of Human Immunodeficiency Virus Type 1 Vpr(34-51) Peptide in Chloroform Methanol Deposited 2002-02-08	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 34–51（18 aa） Fragment：RESIDUES 34-51	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 2 mM Vpr(34-51); 50 % Methanol d3, 50 % Chloroform d1 \| 50 % Methanol d3, 50 % Chloroform d1	Resolution not provided
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000	Resolution 3.49 Å R-free 0.206
5JK7 The X-ray structure of the DDB1-DCAF1-Vpr-UNG2 complex Deposited 2016-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–96（96 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；289.15 K；100 mM Na Ctrate, pH 5.6, 11% PEG 20000	Resolution 3.49 Å R-free 0.206
6XQI Structure of HIV-1 Vpr in complex with the human nucleotide excision repair protein hHR23A Deposited 2020-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 16–78（63 aa） Chain B 16–78（63 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1M Tris, pH 7.5, 10% PEG 4000	Resolution 2.34 Å R-free 0.220
6XQI Structure of HIV-1 Vpr in complex with the human nucleotide excision repair protein hHR23A Deposited 2020-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 16–78（63 aa） Chain D 16–78（63 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1M Tris, pH 7.5, 10% PEG 4000	Resolution 2.34 Å R-free 0.220
6XQJ Structure of HIV-1 Vpr in complex with the human nucleotide excision repair protein hHR23A Deposited 2020-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–79（79 aa）	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR measurement conditions pH 7.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition 927 uM [U-100% 2H; U-100% 13C; U-100% 15N] Vpr-hHR23A complex, 25 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 1 mM TCEP, 0.1 mM ZnSO4, 0.1 mM EDTA, 0.02 % sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 1100 uM [U-100% 13C; U-100% 15N] Vpr-hHR23A complex, 25 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 1 mM TCEP, 0.1 mM ZnSO4, 0.1 mM EDTA, 0.02 % sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 1110 uM [U-100% 15N] Vpr-hHR23A complex, 25 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 1 mM TCEP, 0.1 mM ZnSO4, 0.1 mM EDTA, 0.02 % sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 1000 uM [U-100% 15N] Vpr-hHR23A complex, 25 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 1 mM TCEP, 0.1 mM ZnSO4, 0.1 mM EDTA, 0.02 % sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 745 uM [U-100% 13C; U-100% 15N] Vpr-hHR23A complex, 25 mM sodium phosphate, 50 mM sodium chloride, 2 mM DTT, 1 mM TCEP, 0.1 mM ZnSO4, 0.1 mM EDTA, 0.02 % sodium azide, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided

8 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VPR_HV1N5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–34； UniProt 50–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bde
Deposition date deposition_date	1998-05-07
Structure title title	HELICAL STRUCTURE OF POLYPEPTIDES FROM THE C-TERMINAL HALF OF HIV-1 VPR, NMR, 20 STRUCTURES
Keywords keywords	AIDS, HIV, VIRAL PROTEIN, VPR FRAGMENT, HELIX; AIDS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.67 Å
Radius of gyration Rg (electron density) rg_electron	14.63 Å
Forward intensity I(0) i0	79758000.00
Molecular weight molecular_weight	77692.0 kDa
Excluded volume excluded_volume	98573 Å³
Envelope volume envelope_volume	14925 Å³
Hydration-shell volume shell_volume	8056 Å³
Envelope diameter envelope_diameter	65.0 Å
Shell Rg shell_rg	21.65 Å
Envelope Rg envelope_rg	19.36 Å
Shape Rg shape_rg	14.64 Å
Total Rg total_rg	14.83 Å
Total atoms total_atoms	11120
Residues n_residues	660
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.9 Å
Rg (real space) rg_real	15.18 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	7.9760e+07
I(0) uncertainty (real space) i0_real_error	1.0840e+06
Rg (reciprocal space) rg_reciprocal	15.14 Å
I(0) (reciprocal space) i0_reciprocal	79760000.0000
Solution quality estimate total_estimate	0.5423
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	6.7 Å
Skewness Skewness skewness	0.614
Kurtosis Kurtosis kurtosis	-0.543
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7625.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.015; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bdea_
Class class	j — Peptides
Fold Fold fold	j.11 — VPR protein fragments
Superfamily Superfamily superfamily	j.11.1 — VPR protein fragments
Family Family family	j.11.1.1 — VPR protein fragments

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	VPR PROTEIN
Molecular weight formula_weight	3870.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11120

fit	/app/data/saxs_computation/bd/1bde/1bde.fit
pddf	/app/data/pr_computation/bd/1bde/1bde.pr.out
profile	/app/data/saxs_computation/bd/1bde/1bde.dat

HELICAL STRUCTURE OF POLYPEPTIDES FROM THE C-TERMINAL HALF OF HIV-1 VPR, NMR, 20 STRUCTURES

1. Protein Identity and Related Structures Protein Identity & Related Structures

VPR PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

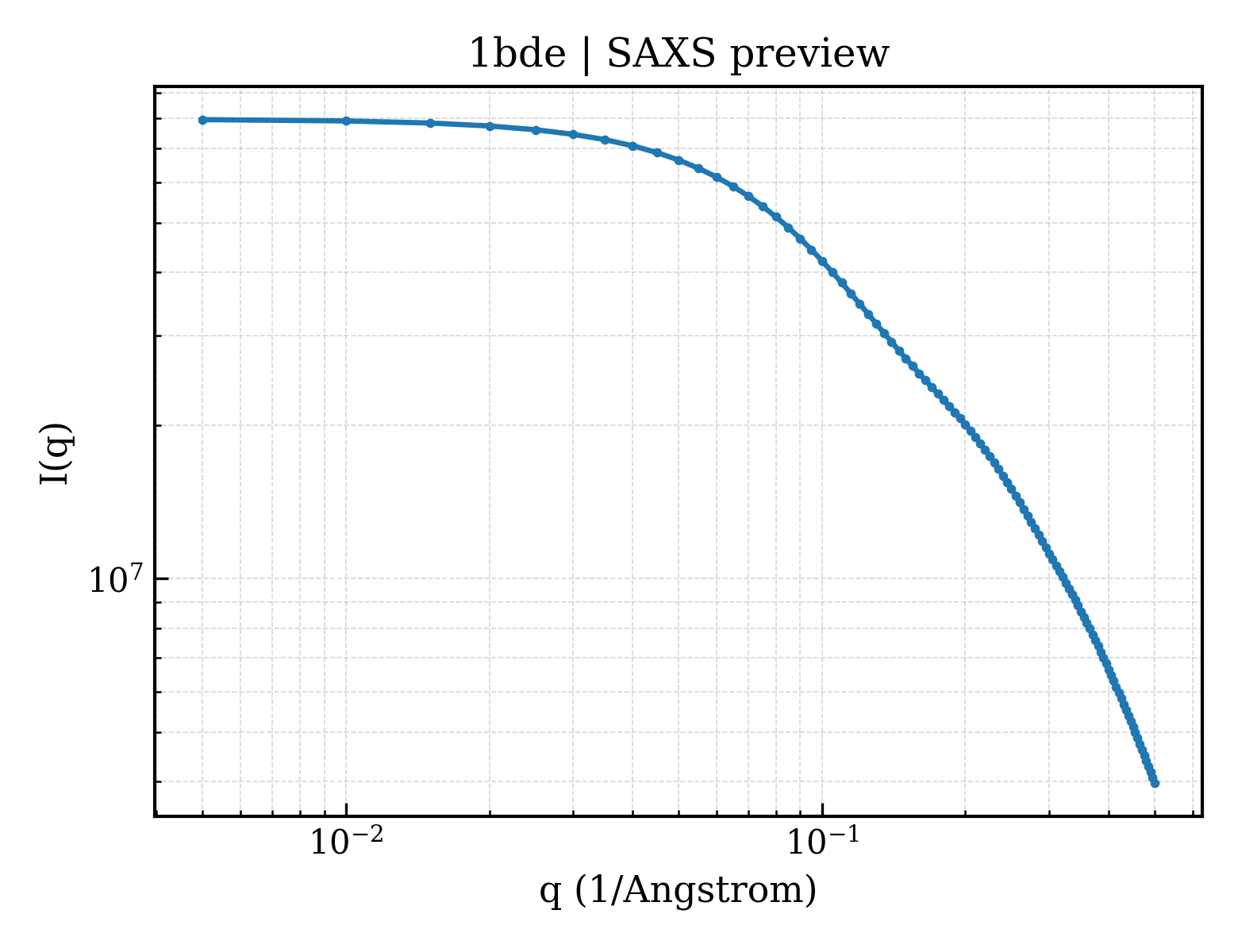

SAXS scattering curve SAXS Profile

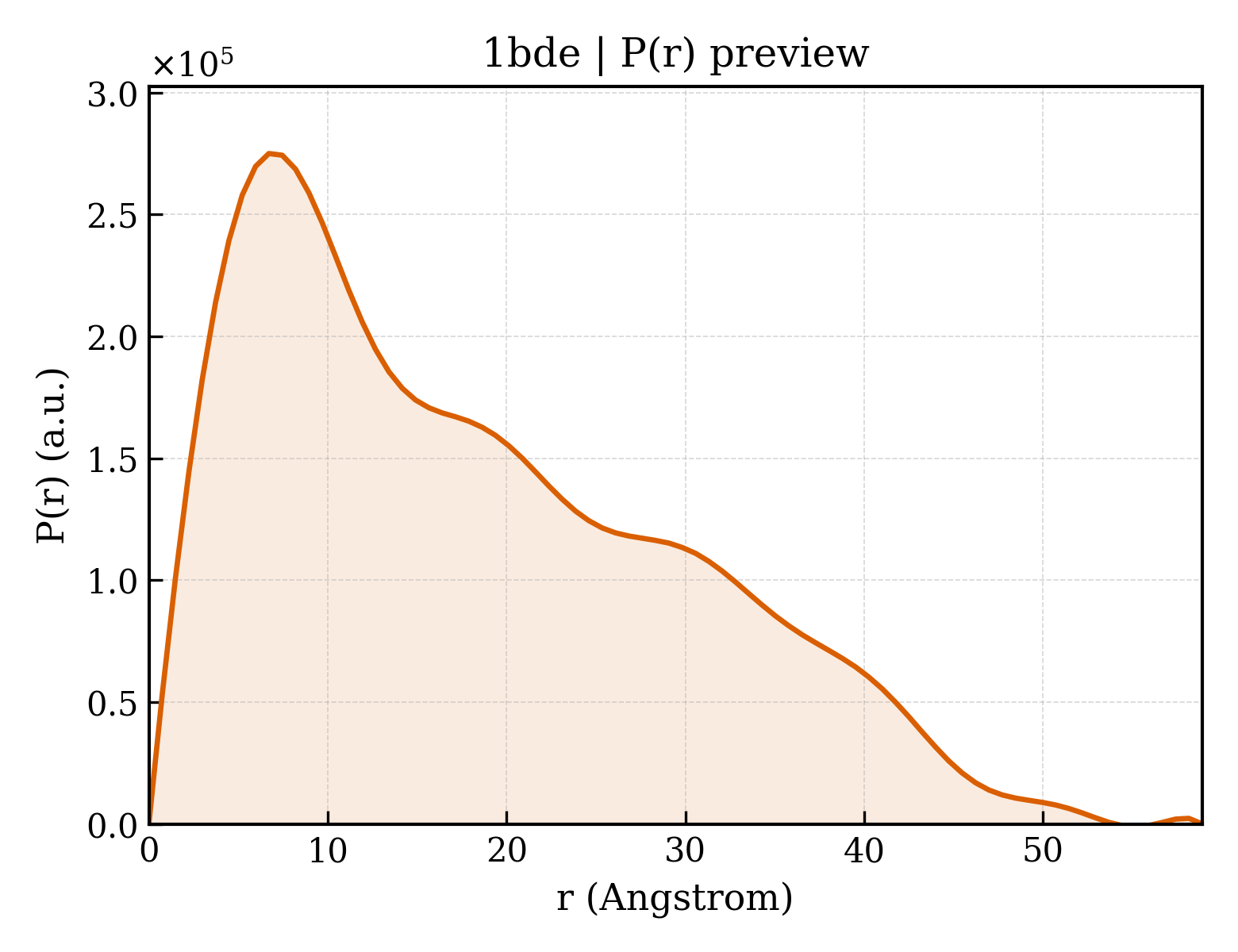

P(r) Distance Distribution P(r) Distribution
