1dsj
NMR SOLUTION STRUCTURE OF VPR50_75, 20 STRUCTURES

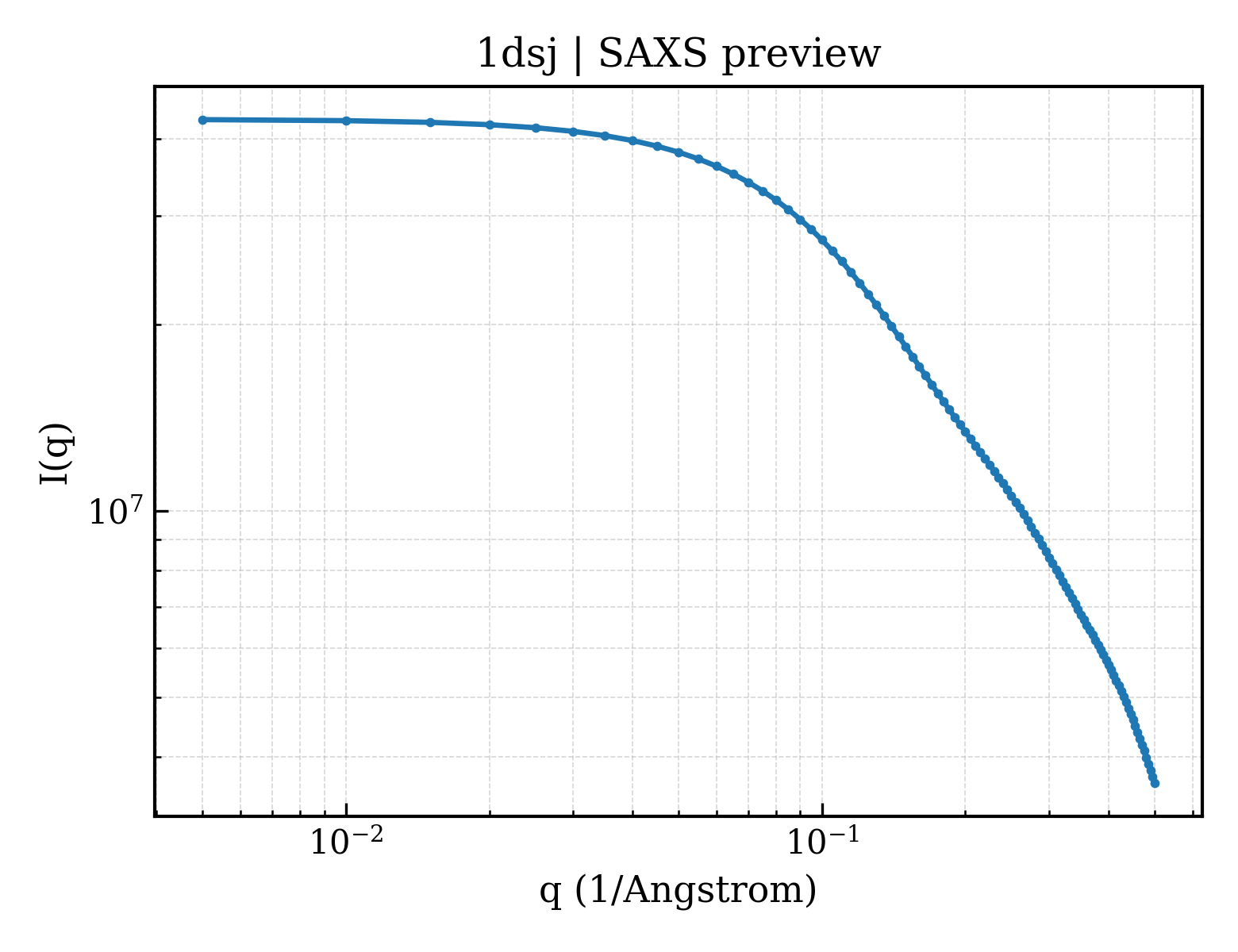

SAXS Profile

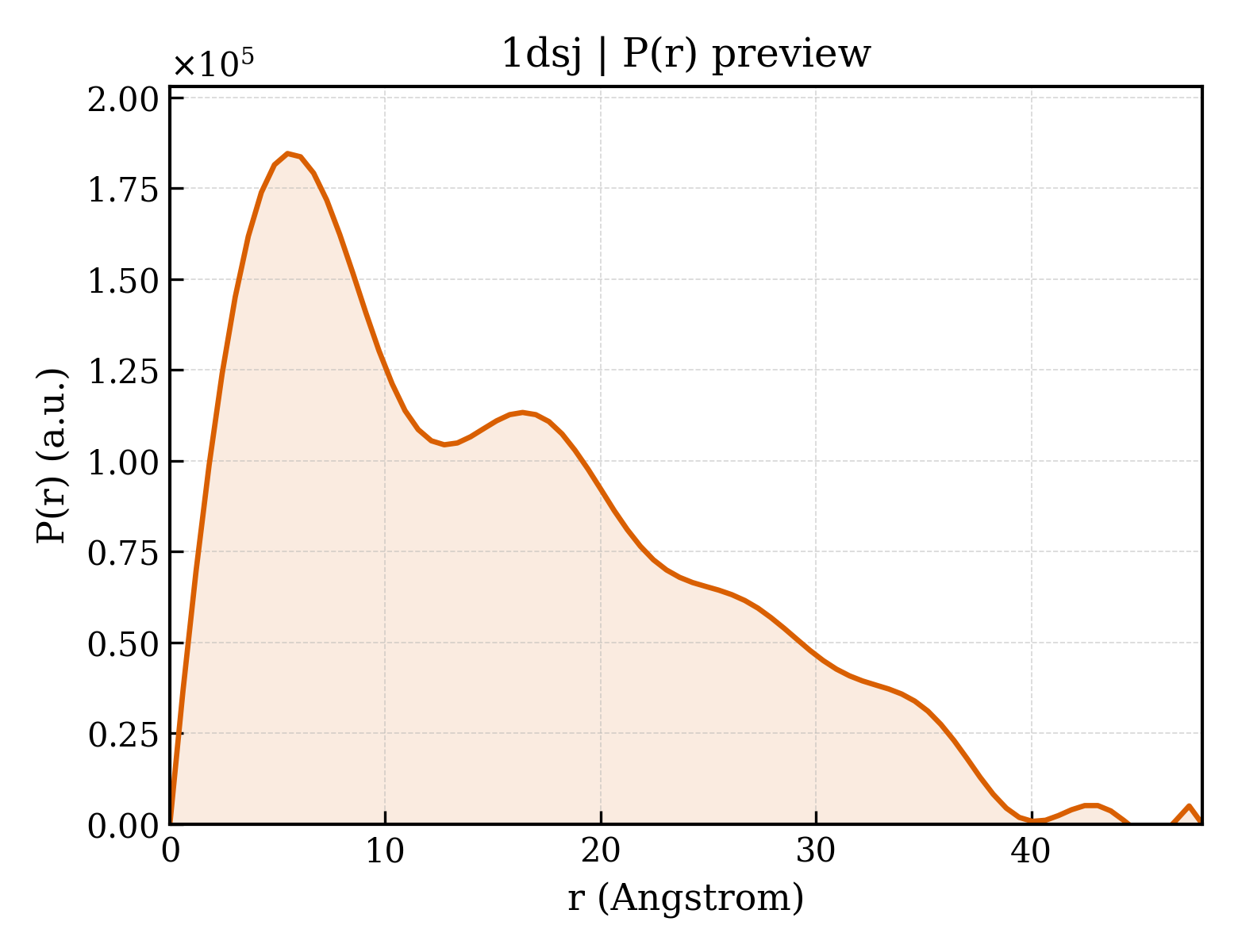

P(r) Distribution
1. Structure Basics
| entry_id | 1dsj |
| deposition_date | 1997-10-23 |
| title | NMR SOLUTION STRUCTURE OF VPR50_75, 20 STRUCTURES |
| keywords | VIRAL PEPTIDE, POLYPEPTIDE; VIRAL PEPTIDE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.87 Å |
| rg_electron | 12.17 Å |
| i0 | 42958700.00 |
| molecular_weight | 61453.0 kDa |
| excluded_volume | 79589 ų |
| envelope_volume | 9475 ų |
| shell_volume | 6564 ų |
| envelope_diameter | 51.0 Å |
| shell_rg | 18.10 Å |
| envelope_rg | 15.61 Å |
| shape_rg | 12.21 Å |
| total_rg | 12.26 Å |
| total_atoms | 8860 |
| n_residues | 520 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.9 Å |
| rg_real | 12.28 Å |
| rg_real_error | 0.67 Å |
| i0_real | 4.2960e+07 |
| i0_real_error | 5.3960e+05 |
| rg_reciprocal | 12.26 Å |
| i0_reciprocal | 42960000.0000 |
| total_estimate | 0.5401 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 5.5 Å |
| skewness | 0.618 |
| kurtosis | -0.512 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2782.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.007; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.000 |
