1bdy
C2 DOMAIN FROM PROTEIN KINASE C DELTA

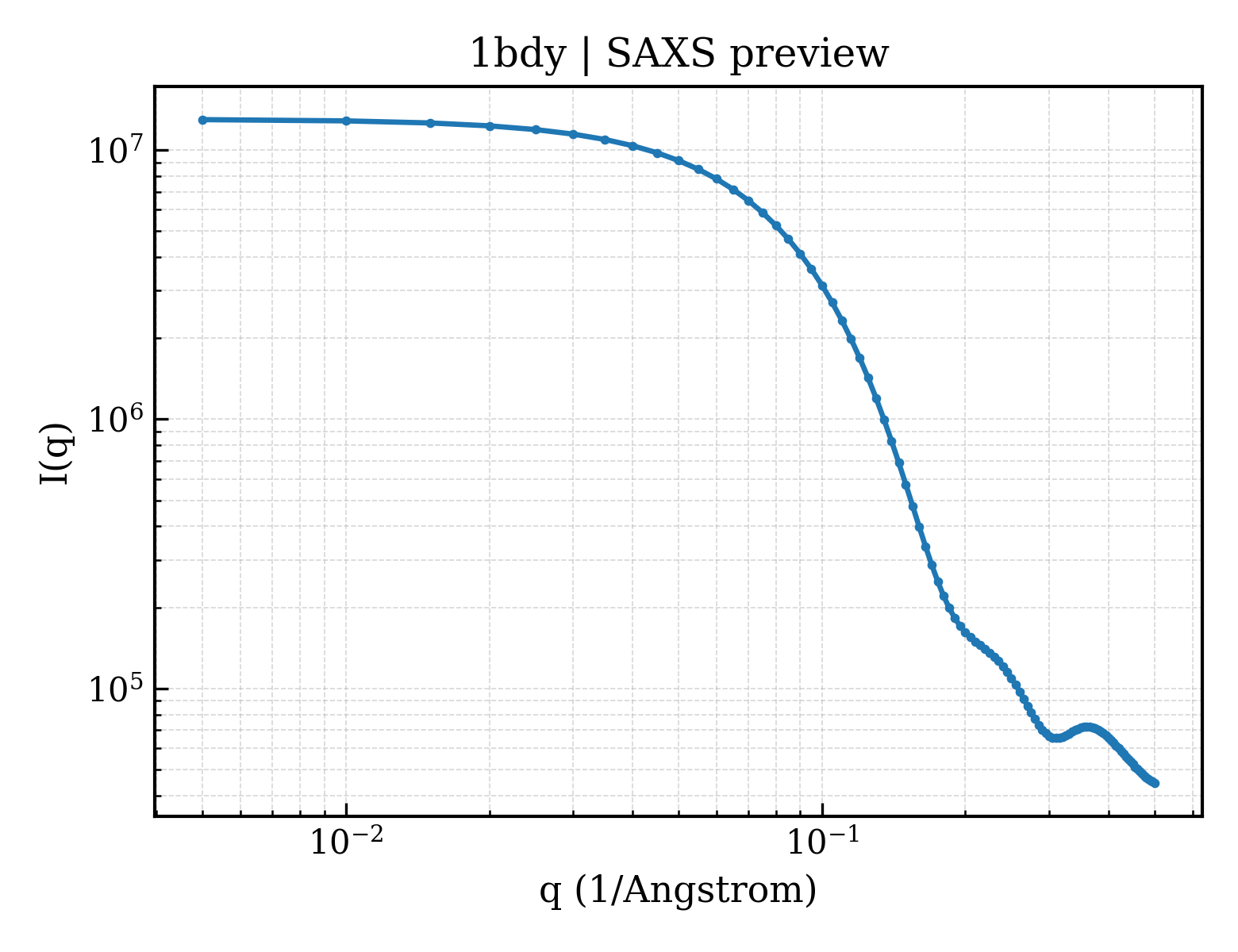

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bdy |
| deposition_date | 1998-05-11 |
| title | C2 DOMAIN FROM PROTEIN KINASE C DELTA |
| keywords | PROTEIN KINASE C, C2 DOMAIN, CALCIUM, CALCIUM-BINDING, DUPLICATION, ATP-BINDING, TRANSFERASE; CALCIUM-BINDING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.61 Å |
| rg_electron | 19.53 Å |
| i0 | 13008300.00 |
| molecular_weight | 27465.0 kDa |
| excluded_volume | 34658 ų |
| envelope_volume | 43241 ų |
| shell_volume | 18822 ų |
| envelope_diameter | 74.5 Å |
| shell_rg | 25.49 Å |
| envelope_rg | 20.02 Å |
| shape_rg | 19.54 Å |
| total_rg | 20.42 Å |
| total_atoms | 2354 |
| n_residues | 246 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.2 Å |
| rg_real | 20.59 Å |
| rg_real_error | 0.51 Å |
| i0_real | 1.3010e+07 |
| i0_real_error | 1.6430e+05 |
| rg_reciprocal | 20.60 Å |
| i0_reciprocal | 13010000.0000 |
| total_estimate | 0.8513 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.4 Å |
| skewness | 0.386 |
| kurtosis | -0.011 |
| angular_range | — – 0.3850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2641000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.701; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.985 |
