1be1
GLUTAMATE MUTASE (B12-BINDING SUBUNIT), NMR, MINIMIZED AVERAGE STRUCTURE

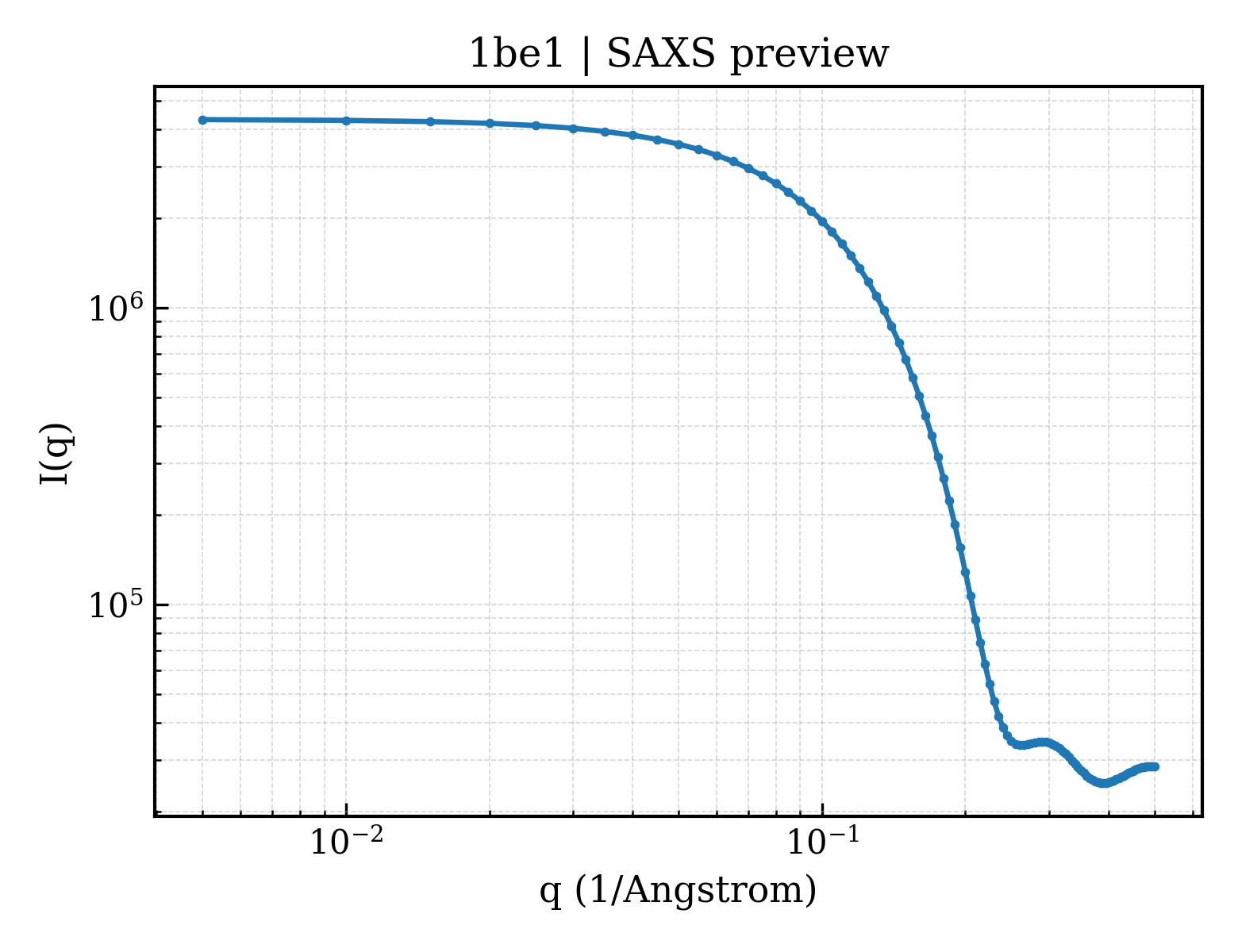

SAXS Profile

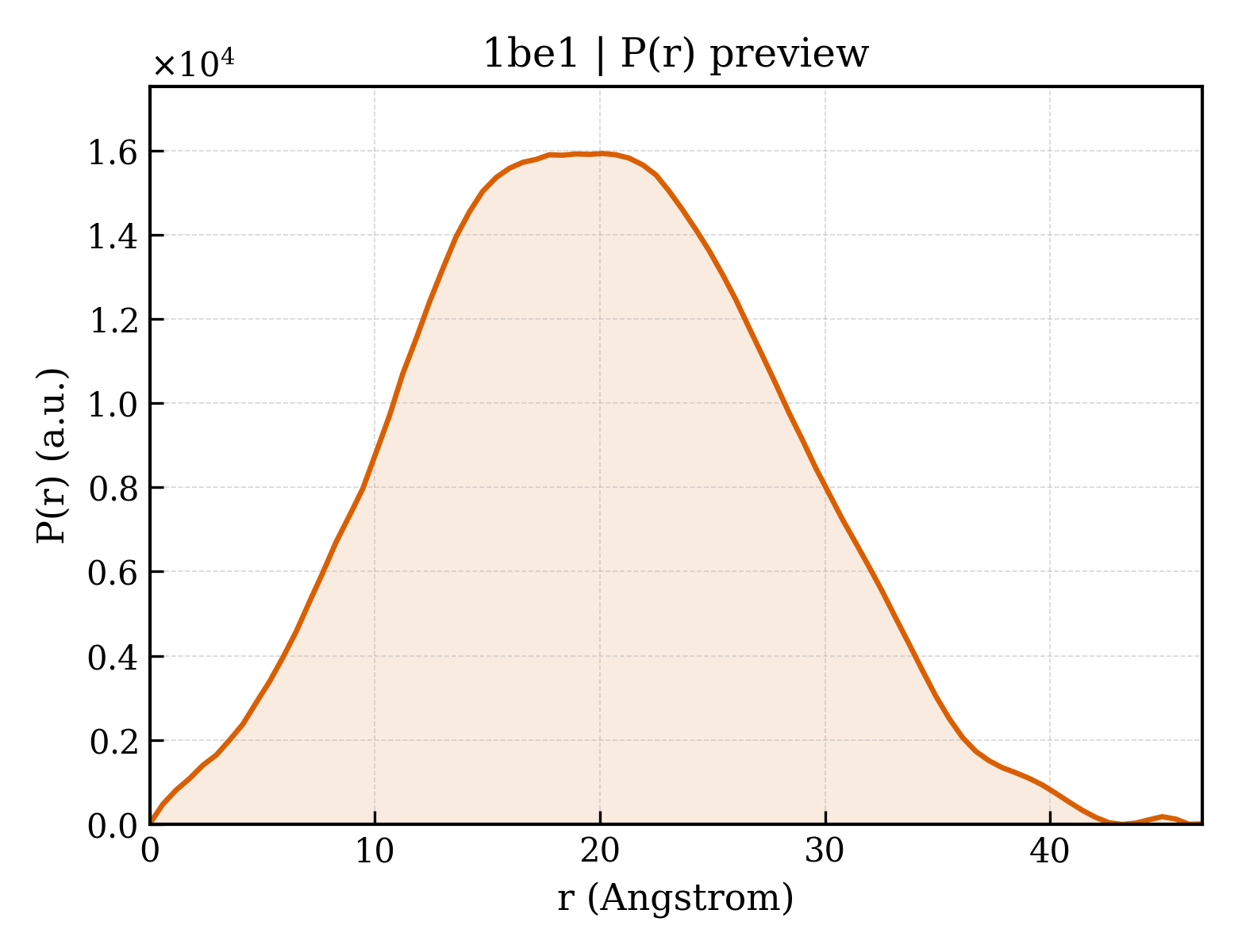

P(r) Distribution
1. Structure Basics
| entry_id | 1be1 |
| deposition_date | 1998-05-19 |
| title | GLUTAMATE MUTASE (B12-BINDING SUBUNIT), NMR, MINIMIZED AVERAGE STRUCTURE |
| keywords | ISOMERASE, GLUTAMATE MUTASE, B12-BINDING SUBUNIT; ISOMERASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.22 Å |
| rg_electron | 14.05 Å |
| i0 | 4314140.00 |
| molecular_weight | 14743.0 kDa |
| excluded_volume | 18465 ų |
| envelope_volume | 21069 ų |
| shell_volume | 12669 ų |
| envelope_diameter | 45.1 Å |
| shell_rg | 19.86 Å |
| envelope_rg | 14.32 Å |
| shape_rg | 14.04 Å |
| total_rg | 15.28 Å |
| total_atoms | 2058 |
| n_residues | 137 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.8 Å |
| rg_real | 15.10 Å |
| rg_real_error | 0.26 Å |
| i0_real | 4.3140e+06 |
| i0_real_error | 4.4760e+04 |
| rg_reciprocal | 15.11 Å |
| i0_reciprocal | 4314000.0000 |
| total_estimate | 0.8191 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 4 |
| r_peak_primary | 20.1 Å |
| skewness | 0.123 |
| kurtosis | -0.416 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1035000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.892; Stabil: 0.993; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000 |
