1be4
NUCLEOSIDE DIPHOSPHATE KINASE ISOFORM B FROM BOVINE RETINA

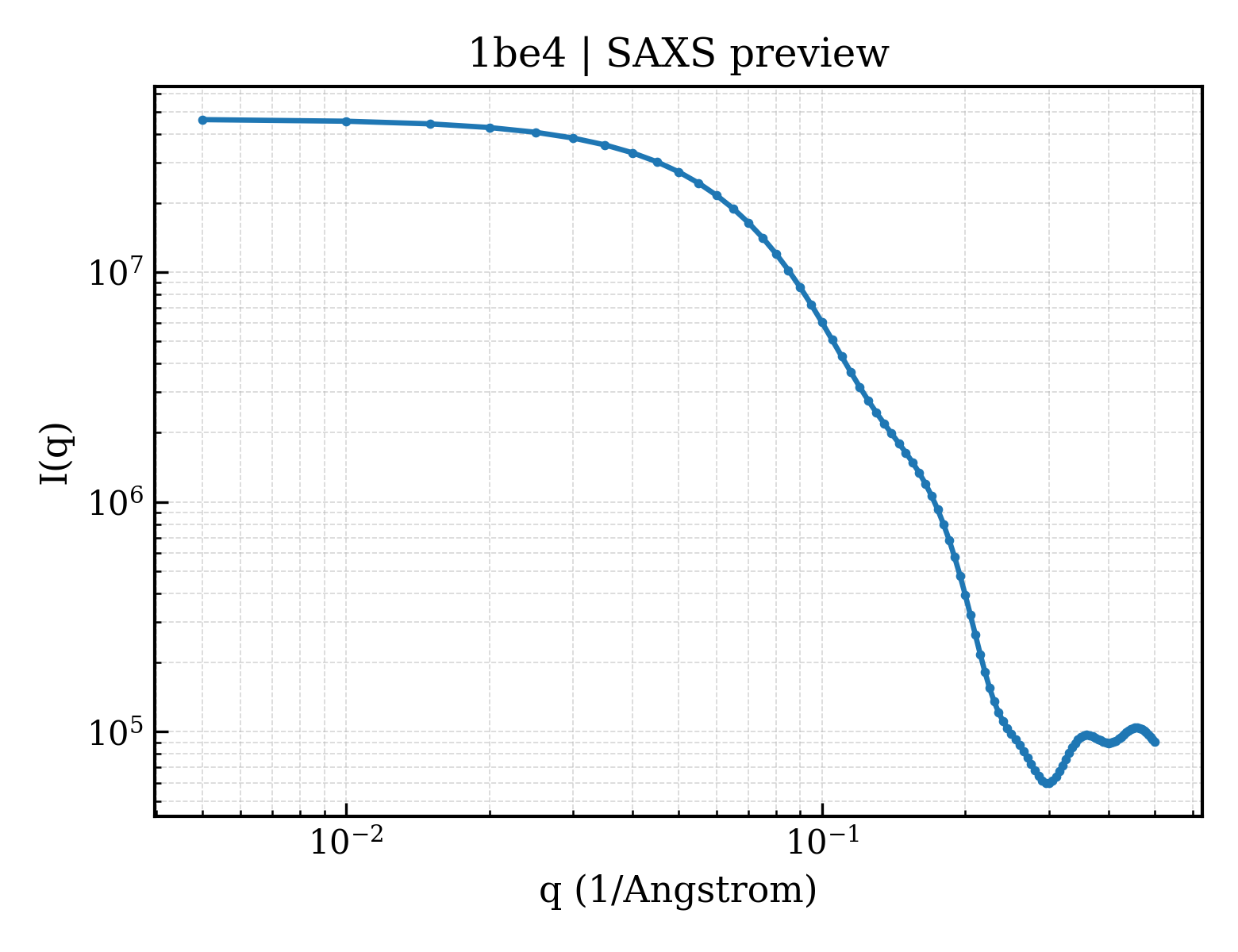

SAXS Profile

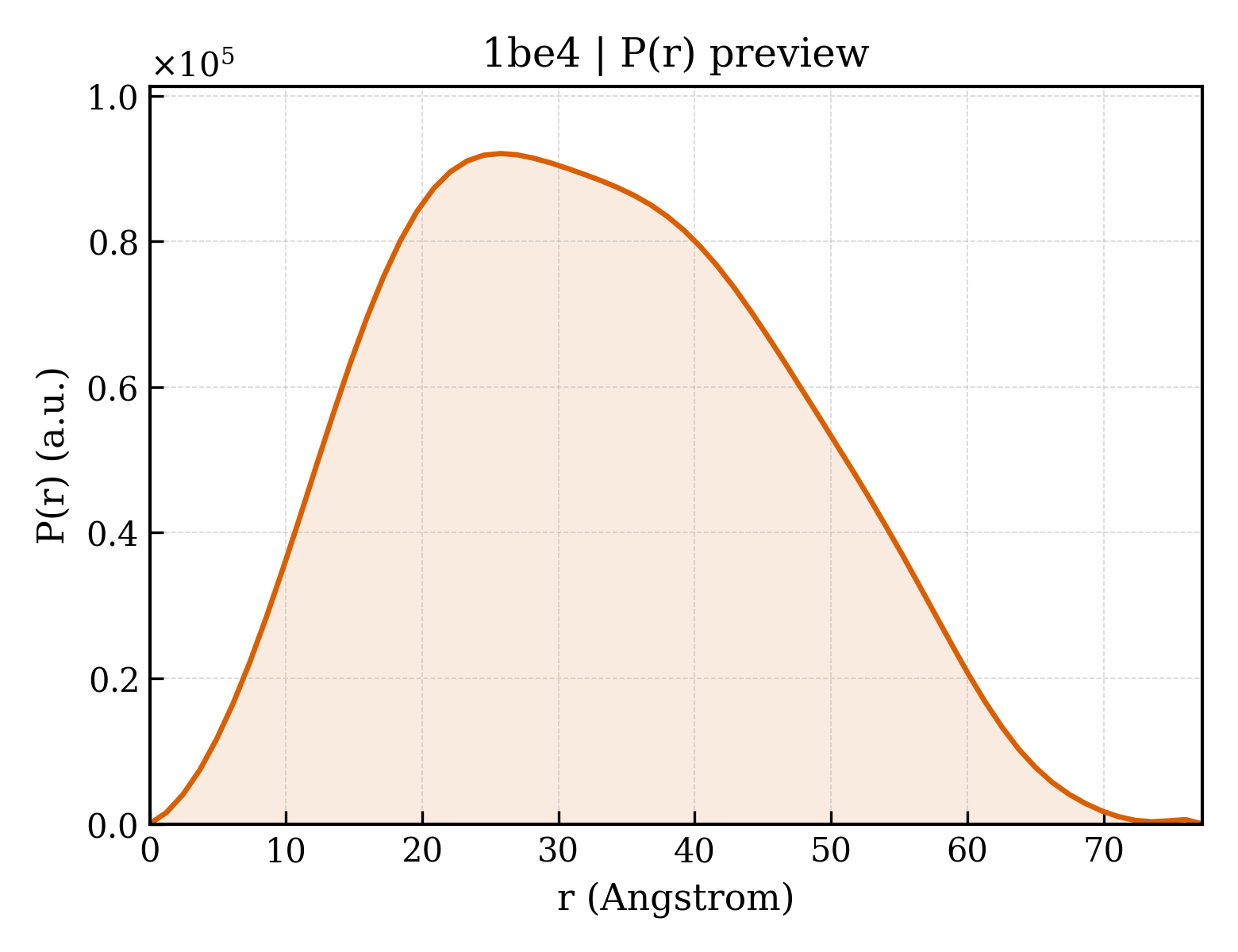

P(r) Distribution
1. Structure Basics
| entry_id | 1be4 |
| deposition_date | 1998-05-19 |
| title | NUCLEOSIDE DIPHOSPHATE KINASE ISOFORM B FROM BOVINE RETINA |
| keywords | PHOSPHOTRANSFERASE; PHOSPHOTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.15 Å |
| rg_electron | 24.46 Å |
| i0 | 46335100.00 |
| molecular_weight | 52539.0 kDa |
| excluded_volume | 65658 ų |
| envelope_volume | 76438 ų |
| shell_volume | 26141 ų |
| envelope_diameter | 80.0 Å |
| shell_rg | 31.43 Å |
| envelope_rg | 24.56 Å |
| shape_rg | 24.48 Å |
| total_rg | 25.17 Å |
| total_atoms | 3690 |
| n_residues | 453 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.2 Å |
| rg_real | 25.10 Å |
| rg_real_error | 0.43 Å |
| i0_real | 4.6340e+07 |
| i0_real_error | 5.9870e+05 |
| rg_reciprocal | 25.12 Å |
| i0_reciprocal | 46340000.0000 |
| total_estimate | 0.9113 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 25.8 Å |
| skewness | 0.208 |
| kurtosis | -0.662 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 30000000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.966 |
