1bf0
CALCICLUDINE (CAC) FROM GREEN MAMBA DENDROASPIS ANGUSTICEPS, NMR, 15 STRUCTURES

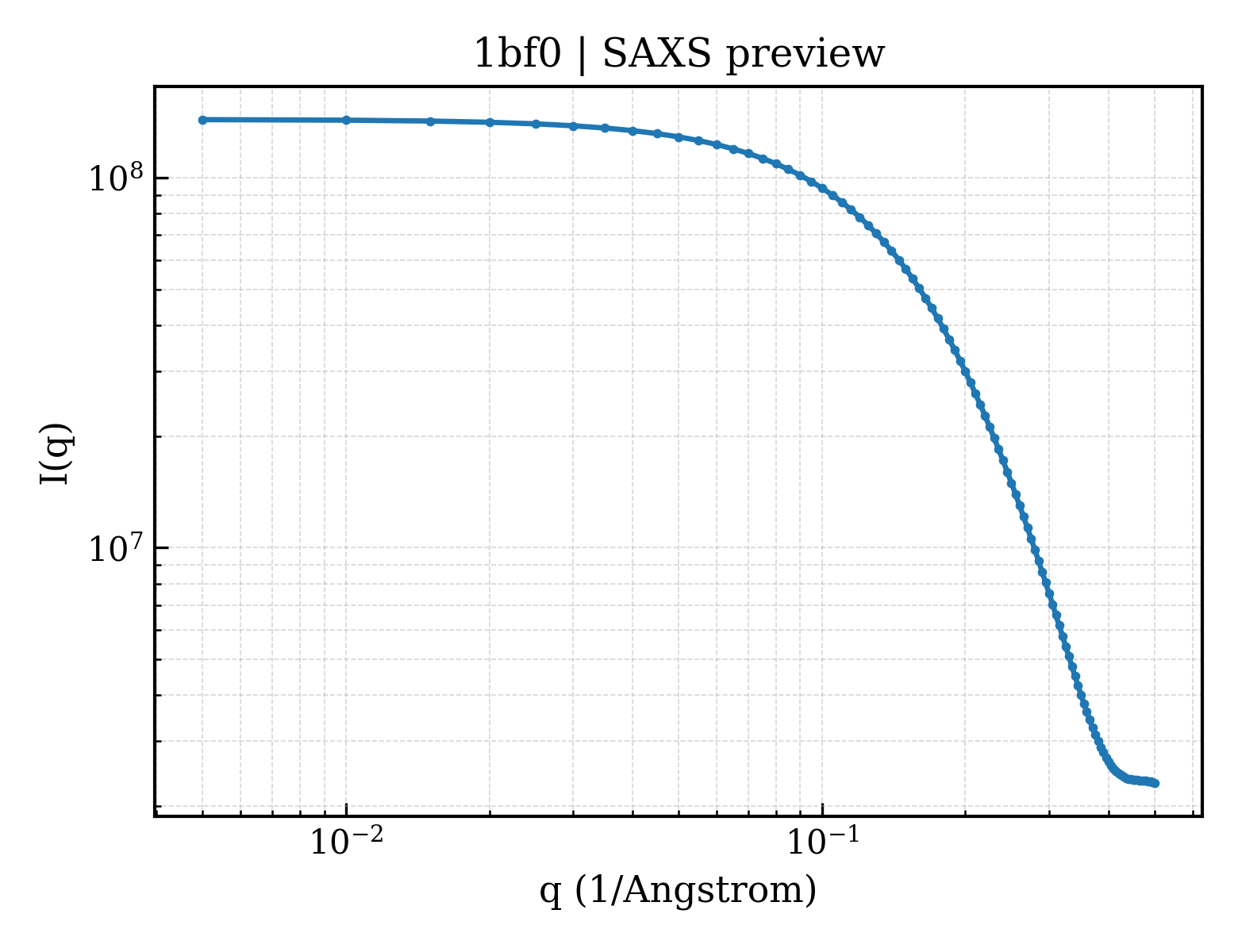

SAXS Profile

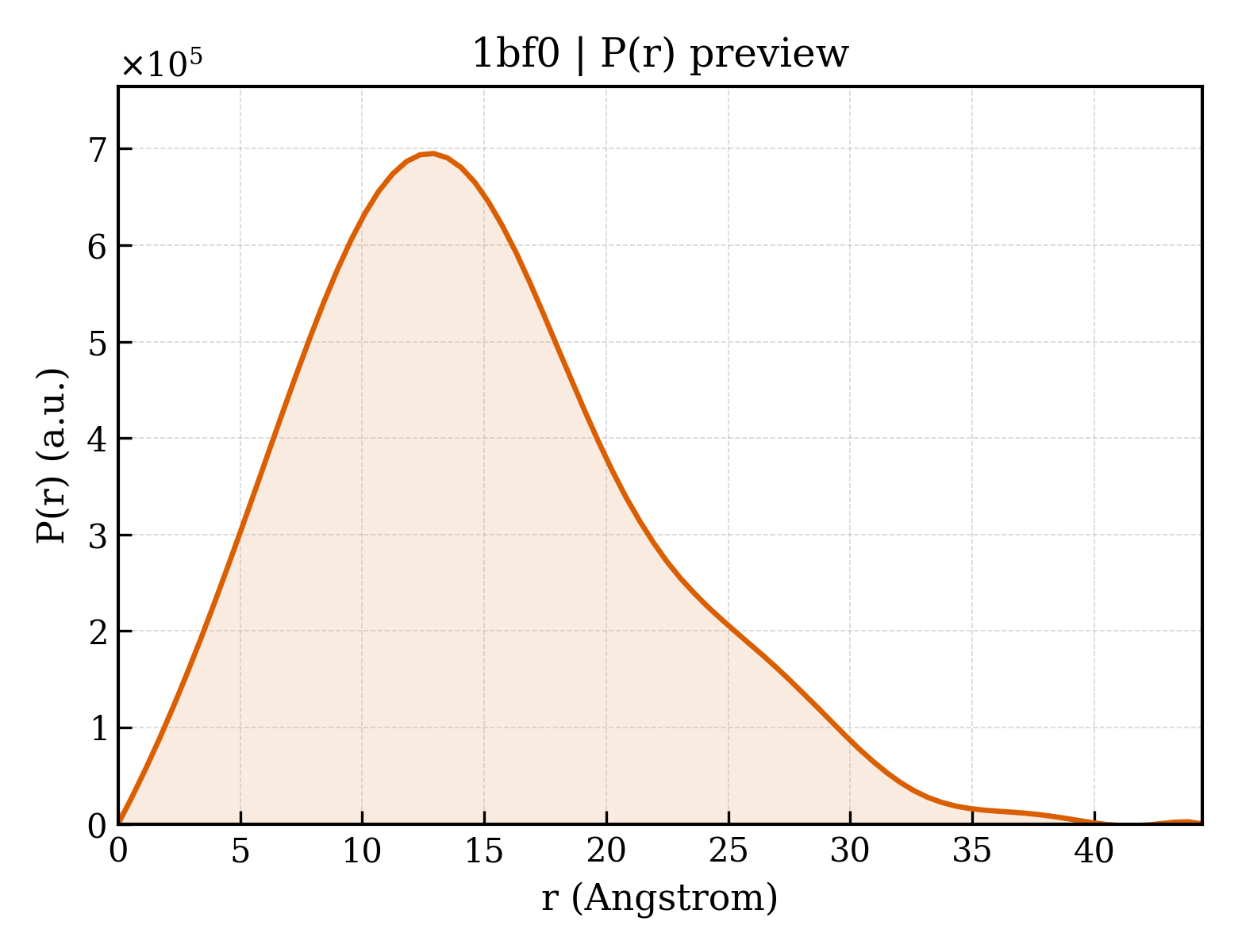

P(r) Distribution
1. Structure Basics
| entry_id | 1bf0 |
| deposition_date | 1998-05-26 |
| title | CALCICLUDINE (CAC) FROM GREEN MAMBA DENDROASPIS ANGUSTICEPS, NMR, 15 STRUCTURES |
| keywords | CALCIUM CHANNEL BLOCKER; CALCIUM CHANNEL BLOCKER |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.35 Å |
| rg_electron | 11.65 Å |
| i0 | 143926000.00 |
| molecular_weight | 104950.0 kDa |
| excluded_volume | 132820 ų |
| envelope_volume | 13636 ų |
| shell_volume | 9466 ų |
| envelope_diameter | 48.5 Å |
| shell_rg | 18.00 Å |
| envelope_rg | 13.44 Å |
| shape_rg | 11.57 Å |
| total_rg | 12.13 Å |
| total_atoms | 14625 |
| n_residues | 900 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.4 Å |
| rg_real | 11.43 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.4390e+08 |
| i0_real_error | 1.6040e+06 |
| rg_reciprocal | 11.42 Å |
| i0_reciprocal | 143900000.0000 |
| total_estimate | 0.7023 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 12.9 Å |
| skewness | 0.517 |
| kurtosis | -0.018 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 72490.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.528; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.542; Smooth: 0.000 |
