1bg6
CRYSTAL STRUCTURE OF THE N-(1-D-CARBOXYLETHYL)-L-NORVALINE DEHYDROGENASE FROM ARTHROBACTER SP. STRAIN 1C
SAXS Profile

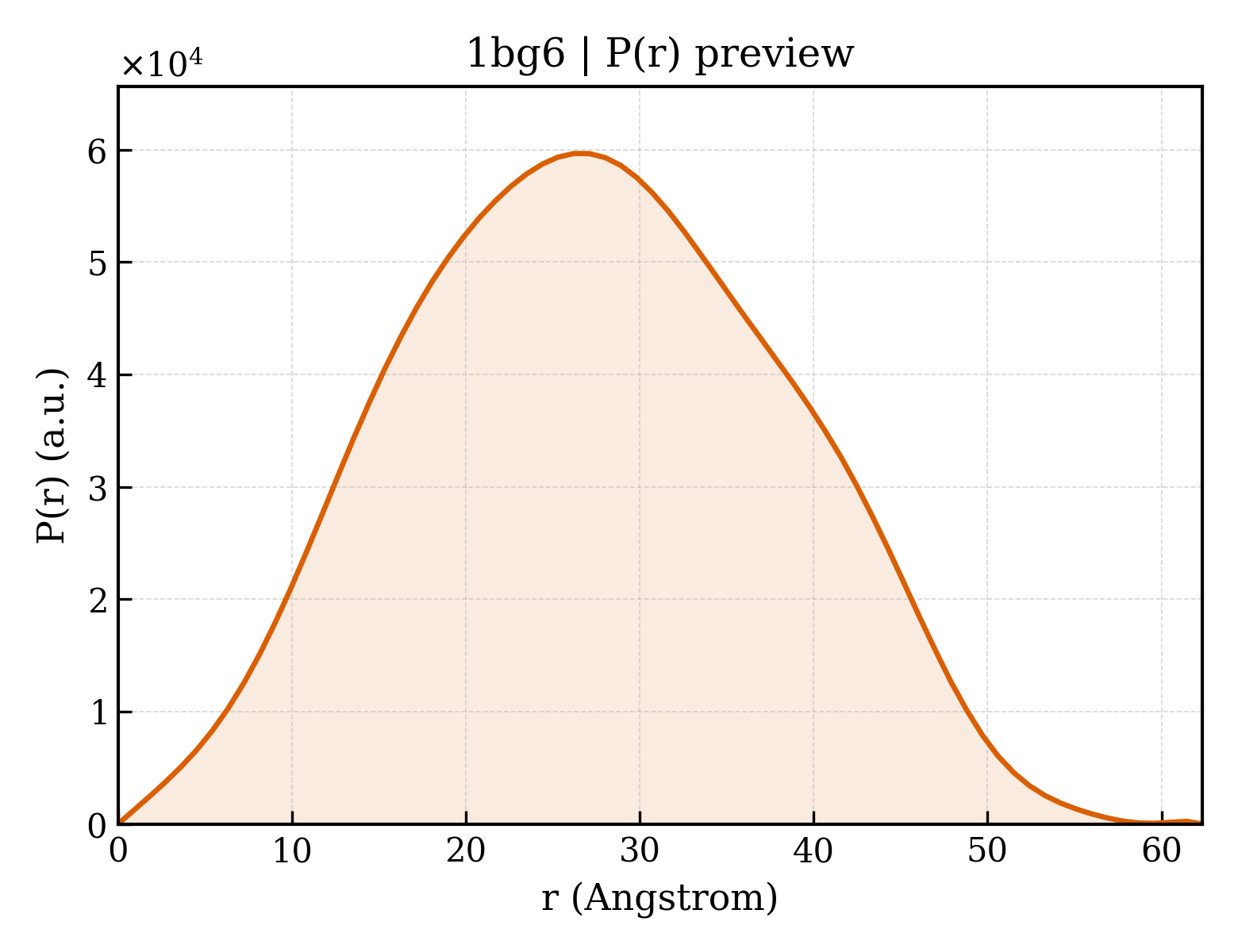

P(r) Distribution
1. Structure Basics
| entry_id | 1bg6 |
| deposition_date | 1998-06-05 |
| title | CRYSTAL STRUCTURE OF THE N-(1-D-CARBOXYLETHYL)-L-NORVALINE DEHYDROGENASE FROM ARTHROBACTER SP. STRAIN 1C |
| keywords | (D, L) STEREOSPECIFIC OPINE DEHYDROGENASE, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.95 Å |
| rg_electron | 19.75 Å |
| i0 | 22134000.00 |
| molecular_weight | 36773.0 kDa |
| excluded_volume | 46431 ų |
| envelope_volume | 53550 ų |
| shell_volume | 22269 ų |
| envelope_diameter | 62.7 Å |
| shell_rg | 26.52 Å |
| envelope_rg | 19.72 Å |
| shape_rg | 19.74 Å |
| total_rg | 20.67 Å |
| total_atoms | 2592 |
| n_residues | 349 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.4 Å |
| rg_real | 20.79 Å |
| rg_real_error | 0.32 Å |
| i0_real | 2.2130e+07 |
| i0_real_error | 2.8060e+05 |
| rg_reciprocal | 20.82 Å |
| i0_reciprocal | 22130000.0000 |
| total_estimate | 0.9093 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 26.2 Å |
| skewness | 0.068 |
| kurtosis | -0.587 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4397000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.973 |
