1bgc
CRYSTAL STRUCTURE OF CANINE AND BOVINE GRANULOCYTE-COLONY STIMULATING FACTOR (G-CSF)
SAXS Profile

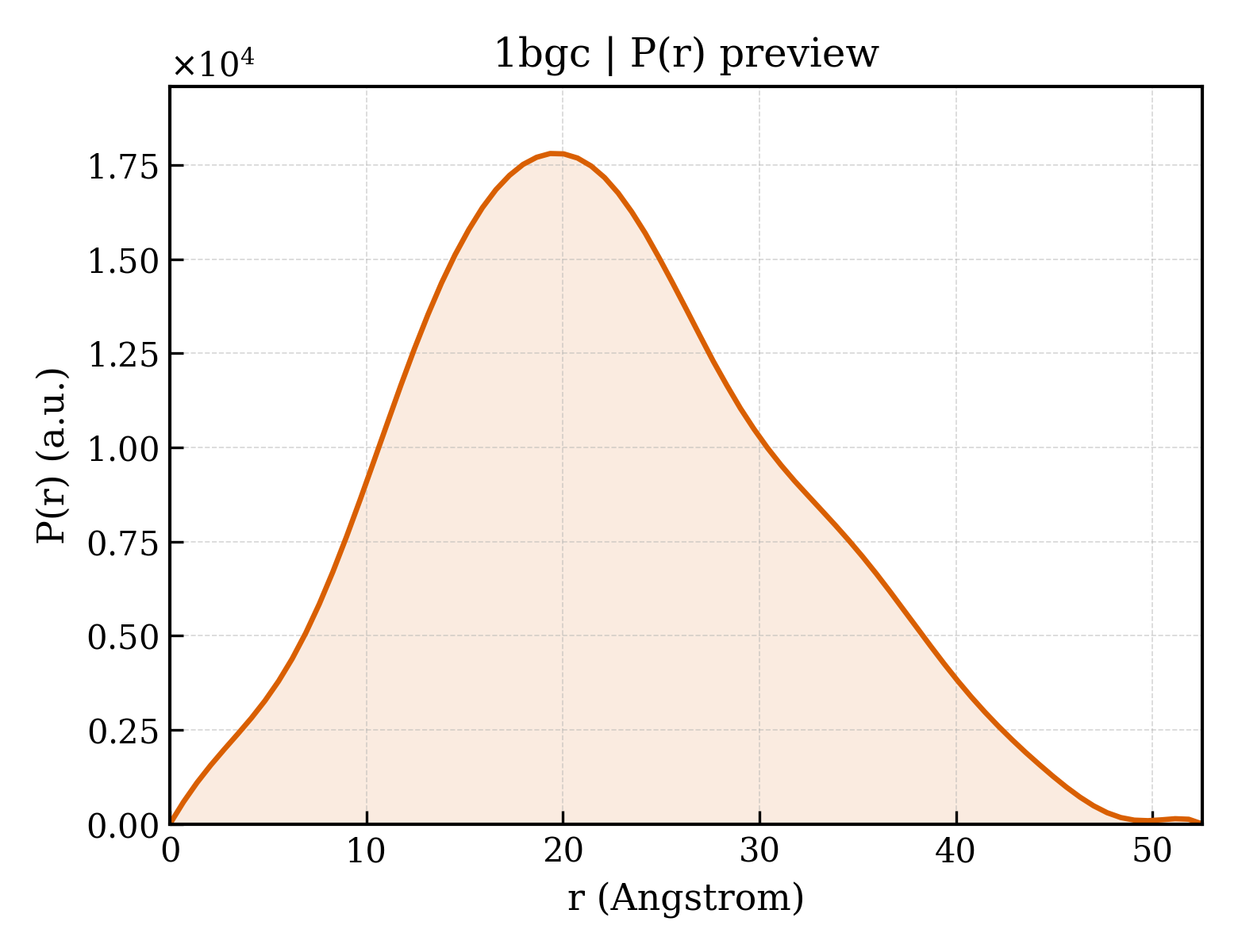

P(r) Distribution
1. Structure Basics
| entry_id | 1bgc |
| deposition_date | 1993-04-27 |
| title | CRYSTAL STRUCTURE OF CANINE AND BOVINE GRANULOCYTE-COLONY STIMULATING FACTOR (G-CSF) |
| keywords | CYTOKINE; CYTOKINE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.94 Å |
| rg_electron | 15.92 Å |
| i0 | 5270730.00 |
| molecular_weight | 16935.0 kDa |
| excluded_volume | 21374 ų |
| envelope_volume | 24175 ų |
| shell_volume | 13292 ų |
| envelope_diameter | 52.0 Å |
| shell_rg | 21.11 Å |
| envelope_rg | 16.03 Å |
| shape_rg | 15.91 Å |
| total_rg | 16.90 Å |
| total_atoms | 1443 |
| n_residues | 158 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.5 Å |
| rg_real | 16.91 Å |
| rg_real_error | 0.27 Å |
| i0_real | 5.2710e+06 |
| i0_real_error | 5.7410e+04 |
| rg_reciprocal | 16.91 Å |
| i0_reciprocal | 5271000.0000 |
| total_estimate | 0.9001 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 19.4 Å |
| skewness | 0.279 |
| kurtosis | -0.401 |
| angular_range | — – 0.4700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1025000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.990 |
