SAXSdb — 1bh6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SUBTILISIN DY

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–274	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1 1BH N-BENZYLOXYCARBONYL-ALA-PRO-3-AMINO-4-PHENYL-BUTAN-2-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；AS GIVEN IN REFERENCE 1, pH 6.0	Resolution 1.75 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	SUBD_BACLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–274； UniProt 1–274

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bh6
Deposition date deposition_date	1998-06-15
Structure title title	SUBTILISIN DY IN COMPLEX WITH THE SYNTHETIC INHIBITOR N-BENZYLOXYCARBONYL-ALA-PRO-PHE-CHLOROMETHYL KETONE
Keywords keywords	HYDROLASE, SUBTILISIN, PROTEIN DEGRADATION; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.83 Å
Radius of gyration Rg (electron density) rg_electron	16.52 Å
Forward intensity I(0) i0	14147800.00
Molecular weight molecular_weight	28011.0 kDa
Excluded volume excluded_volume	34919 Å³
Envelope volume envelope_volume	37163 Å³
Hydration-shell volume shell_volume	18262 Å³
Envelope diameter envelope_diameter	54.2 Å
Shell Rg shell_rg	23.31 Å
Envelope Rg envelope_rg	16.76 Å
Shape Rg shape_rg	16.52 Å
Total Rg total_rg	17.51 Å
Total atoms total_atoms	1971
Residues n_residues	274
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

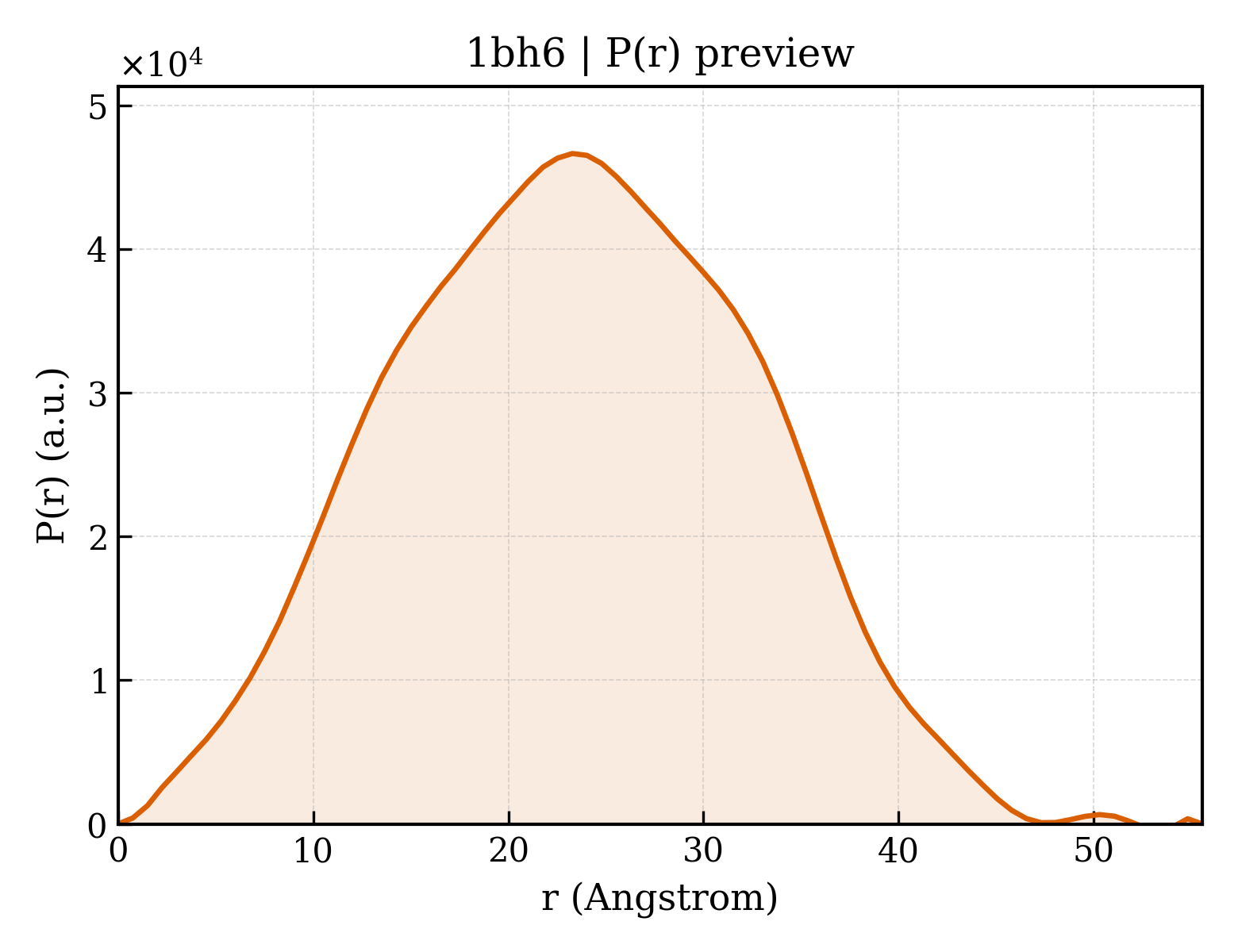

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.6 Å
Rg (real space) rg_real	17.66 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	1.4150e+07
I(0) uncertainty (real space) i0_real_error	1.4790e+05
Rg (reciprocal space) rg_reciprocal	17.68 Å
I(0) (reciprocal space) i0_reciprocal	14150000.0000
Solution quality estimate total_estimate	0.8072
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.3 Å
Skewness Skewness skewness	0.017
Kurtosis Kurtosis kurtosis	-0.541
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4900000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.844; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	SUBTILISIN DY
Molecular weight formula_weight	27499.4 kDa
EC 编号 ec_number	3.4.21.62
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2210

AQTVPYGIPLIKADKVQAQGYKGANVKVGIIDTGIASSHTDLKVVGGASFVSGESYNTDGNGHGTHVAGTVAALDNTTGVLGVAPNVSLYAIKVLNSSGSGSYSAIVSGIEWATQNGLDVINMSLGGPSGSTALKQAVDKAYASGIVVVAAAGNSGNSGSQNTIGYPAKYDSVIAVGAVDSNKNRASFSSVGSELEVMAPGVSVYSTYPSNTYTSLNGTSMASPHVAGAAALILSKYPTLSASQVRNRLSSTATNLGDSFYYGKGLINVEAAAQ

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	N-BENZYLOXYCARBONYL-ALA-PRO-3-AMINO-4-PHENYL-BUTAN-2-OL
Molecular weight formula_weight	467.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	226

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bh6a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.41 — Subtilisin-like
Superfamily Superfamily superfamily	c.41.1 — Subtilisin-like
Family Family family	c.41.1.1 — Subtilases

CATH v4.4 (1 domains)

Domain ID domain_id	1bh6A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	200 — Peptidase S8/S53 domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	52.830 Å
Unit-cell length b length_b	72.750 Å
Unit-cell length c length_c	59.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1400
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/bh/1bh6/1bh6.fit
pddf	/app/data/pr_computation/bh/1bh6/1bh6.pr.out
profile	/app/data/saxs_computation/bh/1bh6/1bh6.dat
