1bhw
LOW TEMPERATURE MIDDLE RESOLUTION STRUCTURE OF XYLOSE ISOMERASE FROM MASC DATA

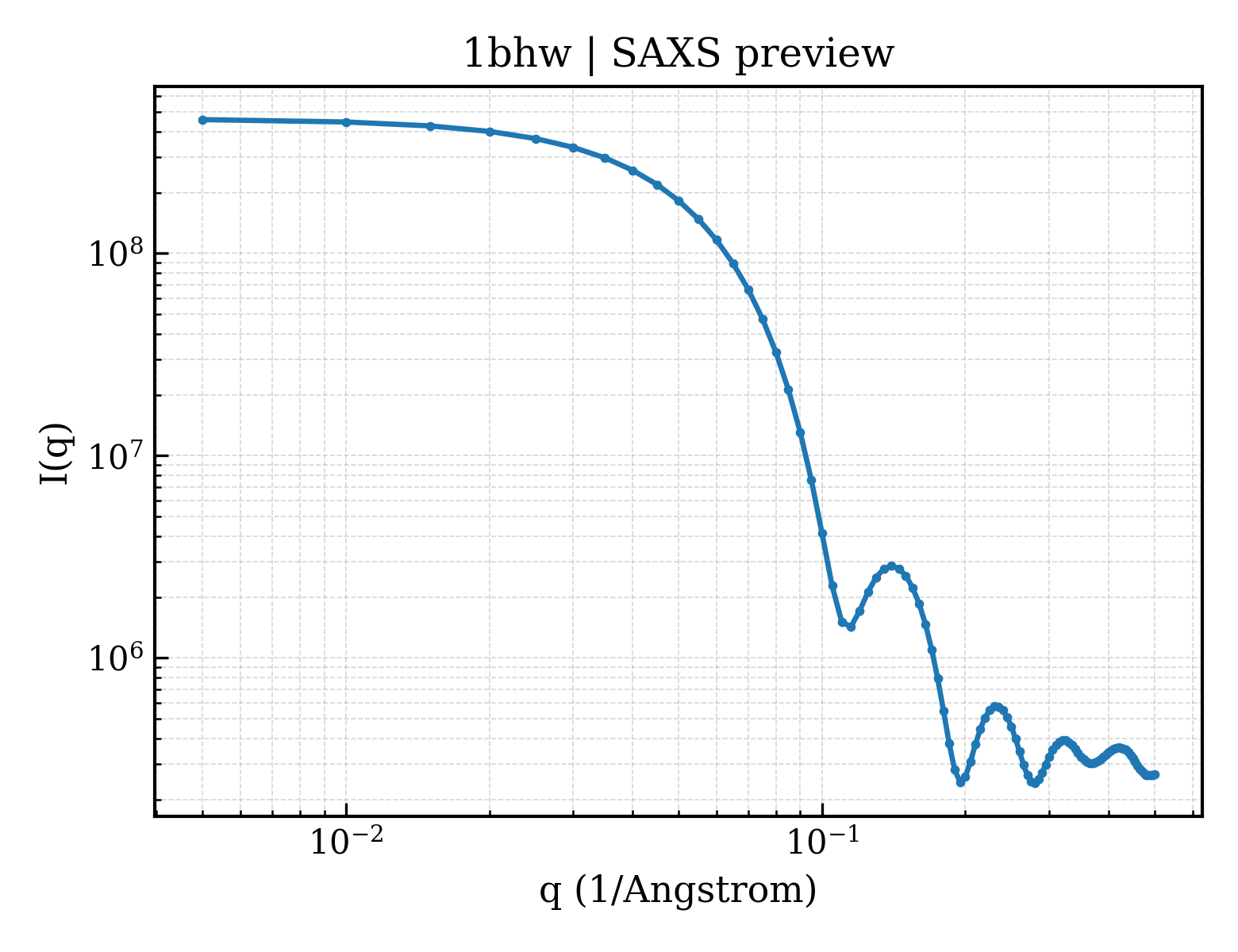

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bhw |
| deposition_date | 1998-06-10 |
| title | LOW TEMPERATURE MIDDLE RESOLUTION STRUCTURE OF XYLOSE ISOMERASE FROM MASC DATA |
| keywords | ISOMERASE, MASC, MULTIWAVELENGTH ANOMALOUS SOLVENT CONTRAST; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 32.86 Å |
| rg_electron | 31.75 Å |
| i0 | 462490000.00 |
| molecular_weight | 172960.0 kDa |
| excluded_volume | 216000 ų |
| envelope_volume | 249210 ų |
| shell_volume | 60657 ų |
| envelope_diameter | 102.1 Å |
| shell_rg | 41.72 Å |
| envelope_rg | 31.85 Å |
| shape_rg | 31.73 Å |
| total_rg | 32.54 Å |
| total_atoms | 12248 |
| n_residues | 1568 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 100.9 Å |
| rg_real | 32.57 Å |
| rg_real_error | 0.51 Å |
| i0_real | 4.6250e+08 |
| i0_real_error | 6.9910e+06 |
| rg_reciprocal | 32.70 Å |
| i0_reciprocal | 462500000.0000 |
| total_estimate | 0.8890 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 42.0 Å |
| skewness | 0.106 |
| kurtosis | -0.454 |
| angular_range | — – 0.2400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 487300000.0000 |
| n_real_points | 49 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.917 |
