SAXSdb — 1bif

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6-PHOSPHOFRUCTO-2-KINASE/ FRUCTOSE-2,6-BISPHOSPHATASE

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 PHOSPHATE ION × 4 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	F264_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–469； UniProt 1–468

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bif
Deposition date deposition_date	1996-11-08
Structure title title	6-PHOSPHOFRUCTO-2-KINASE/FRUCTOSE-2,6-BISPHOSPHATASE BIFUNCTIONAL ENZYME COMPLEXED WITH ATP-G-S AND PHOSPHATE
Keywords keywords	KINASE, TRANSFERASE (PHOSPHO), PHOSPHATASE, HYDROLASE (PHOSPHO), GLYCOLYSIS, BIFUNCTIONAL ENZYME; BIFUNCTIONAL ENZYME
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1bif__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1bif__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

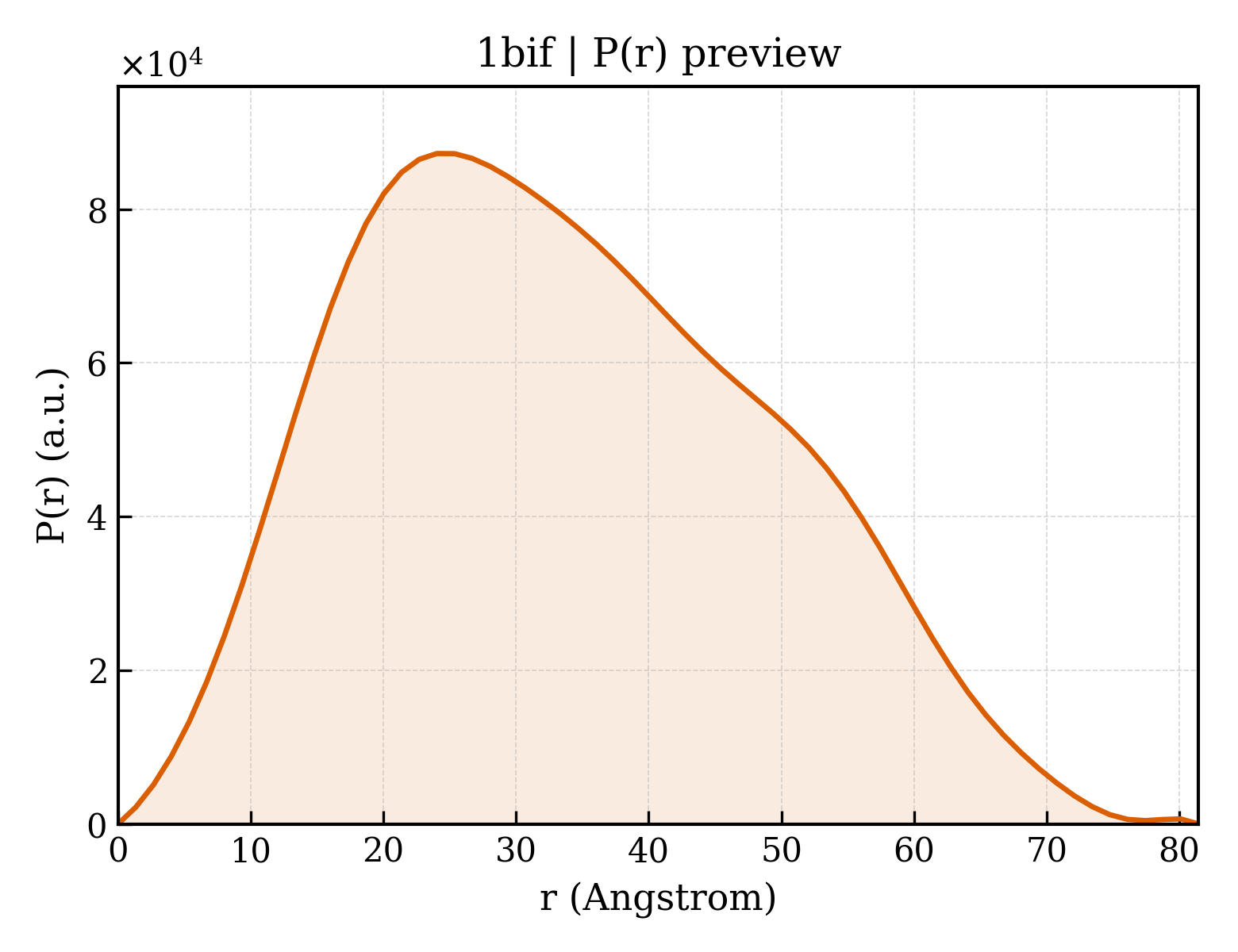

1bif__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.18 Å
Rg (electron density)	30.03 Å
Total Rg	30.64 Å
Atom count	7108
Residues	864
Excluded volume	125880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1bif__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	6-PHOSPHOFRUCTO-2-KINASE/ FRUCTOSE-2,6-BISPHOSPHATASE
Molecular weight formula_weight	54068.6 kDa
EC 编号 ec_number	2.7.1.105, 3.1.3.46
Mutation mutation	W15F, W64F, W299F, W320F
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3900

MASPRELTQNPLKKIFMPYSNGRPALHASQRGVCMTNCPTLIVMVGLPARGKTYISKKLTRYLNFIGVPTREFNVGQYRRDMVKTYKSFEFFLPDNEEGLKIRKQCALAALNDVRKFLSEEGGHVAVFDATNTTRERRAMIFNFGEQNGYKTFFVESICVDPEVIAANIVQVKLGSPDYVNRDSDEATEDFMRRIECYENSYESLDEEQDRDLSYIKIMDVGQSYVVNRVADHIQSRIVYYLMNIHVTPRSIYLCRHGESELNLKGRIGGDPGLSPRGREFSKHLAQFISDQNIKDLKVFTSQMKRTIQTAEALSVPYEQFKVLNEIDAGVCEEMTYEEIQDHYPLEFALRDQDKYRYRYPKGESYEDLVQRLEPVIMELERQENVLVICHQAVMRCLLAYFLDKAAEELPYLKCPLHTVLKLTPVAYGCKVESIFLNVAAVNTHRDRPQNVDISRPSEEALVTVPAHQ

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1bifa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.7 — 6-phosphofructo-2-kinase/fructose-2,6-bisphosphatase, kinase domain

Domain ID domain_id	d1bifa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.60 — Phosphoglycerate mutase-like
Superfamily Superfamily superfamily	c.60.1 — Phosphoglycerate mutase-like
Family Family family	c.60.1.4 — 6-phosphofructo-2-kinase/fructose-2,6-bisphosphatase, phosphatase domain

CATH v4.4 (2 domains)

Domain ID domain_id	1bifA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1bifA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1240 — Phosphoglycerate mutase-like

▶

Unit-cell length a length_a	83.000 Å
Unit-cell length b length_b	83.000 Å
Unit-cell length c length_c	130.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2500
