1big
SCORPION TOXIN BMTX1 FROM BUTHUS MARTENSII KARSCH, NMR, 25 STRUCTURES

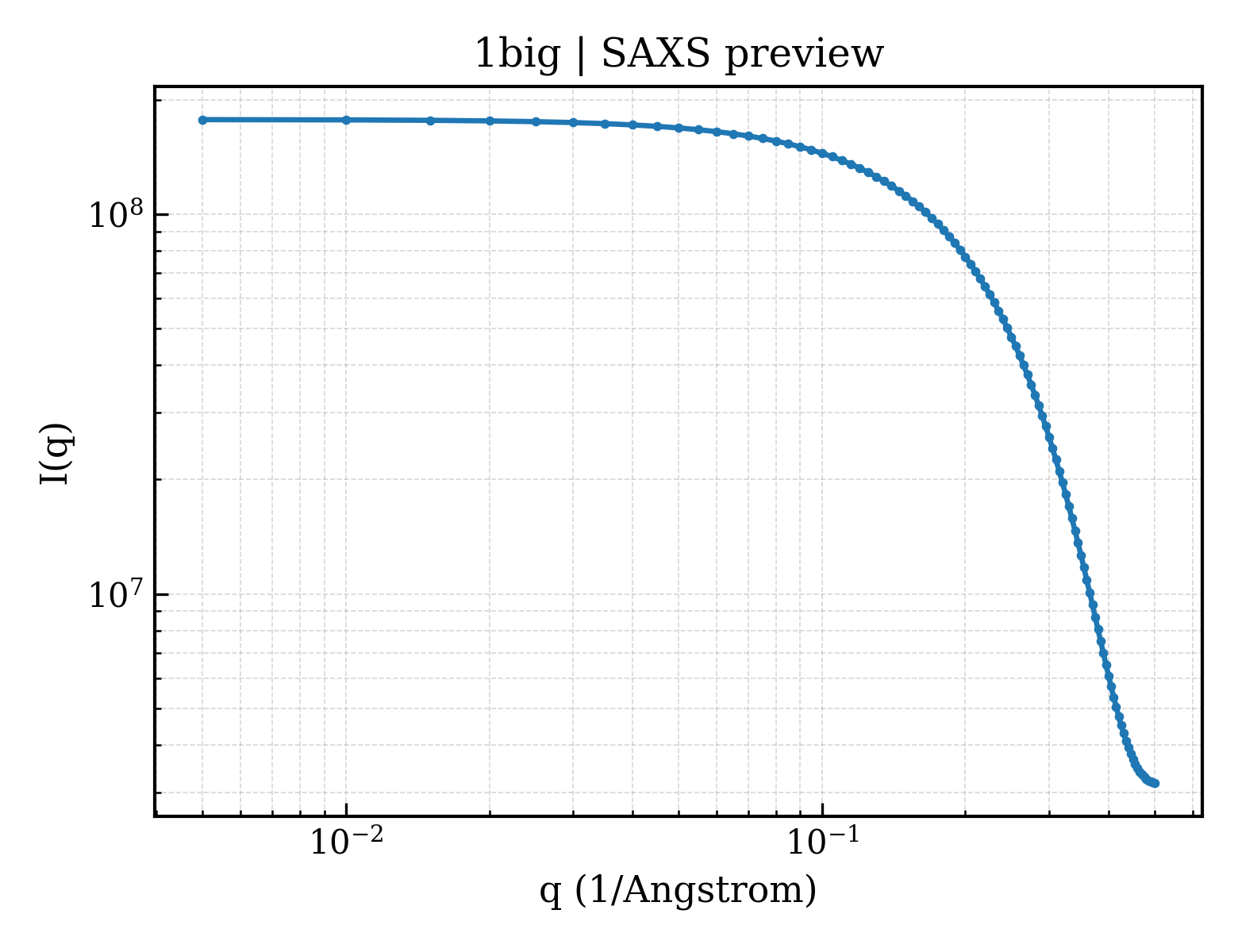

SAXS Profile

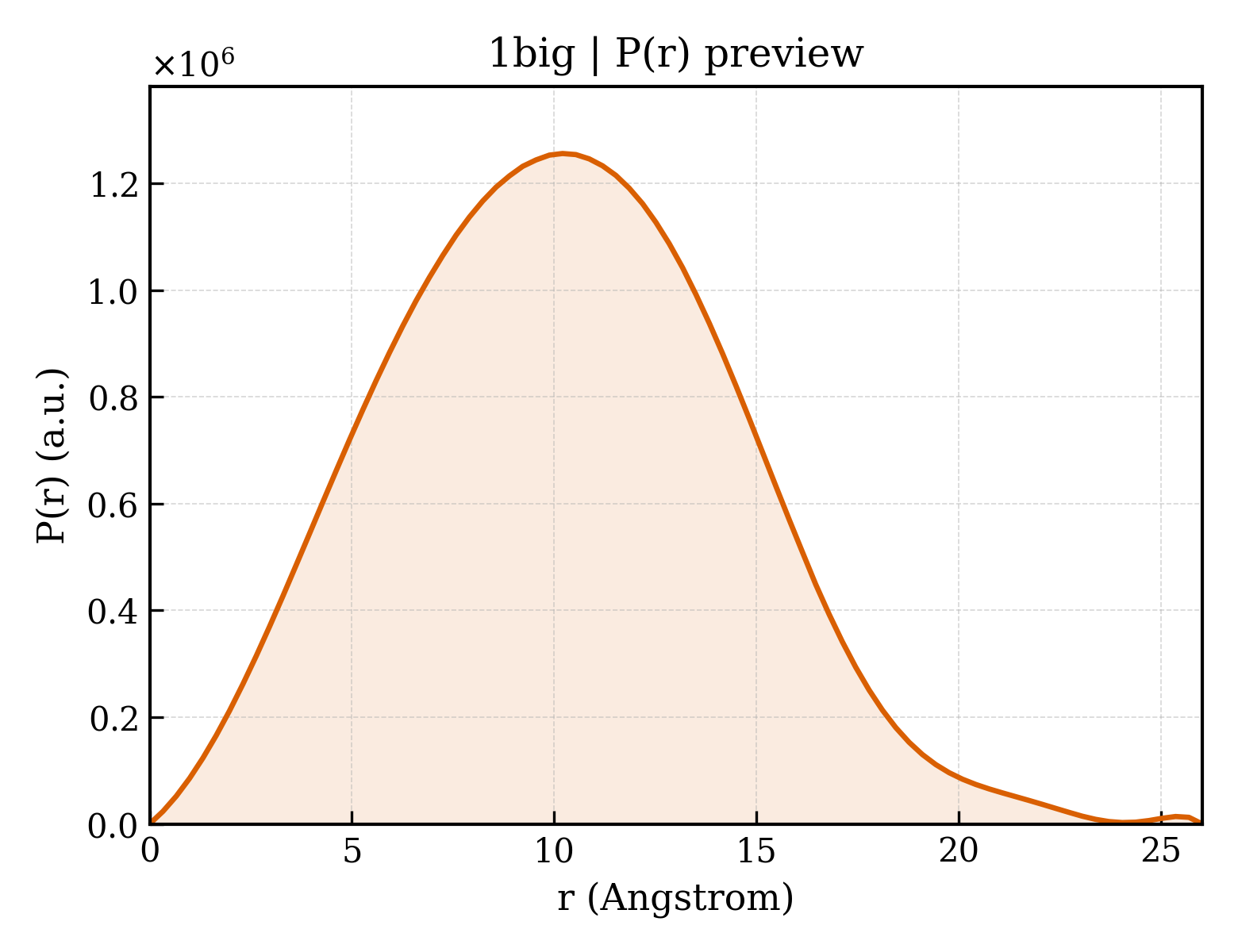

P(r) Distribution
1. Structure Basics
| entry_id | 1big |
| deposition_date | 1998-06-16 |
| title | SCORPION TOXIN BMTX1 FROM BUTHUS MARTENSII KARSCH, NMR, 25 STRUCTURES |
| keywords | TOXIN, SCORPION, NEUROTOXIN, LARGE CONDUCTANCE POTASSIUM CHANNEL, VOLTAGE GATED POTASSIUM CHANNEL, BUTHUS MARTENSII; NEUROTOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.84 Å |
| rg_electron | 8.42 Å |
| i0 | 177388000.00 |
| molecular_weight | 104550.0 kDa |
| excluded_volume | 127650 ų |
| envelope_volume | 8186 ų |
| shell_volume | 7277 ų |
| envelope_diameter | 31.1 Å |
| shell_rg | 15.16 Å |
| envelope_rg | 10.15 Å |
| shape_rg | 8.44 Å |
| total_rg | 8.52 Å |
| total_atoms | 14050 |
| n_residues | 900 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 26.0 Å |
| rg_real | 7.80 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.7740e+08 |
| i0_real_error | 1.7500e+06 |
| rg_reciprocal | 7.80 Å |
| i0_reciprocal | 177400000.0000 |
| total_estimate | 0.8794 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.2 Å |
| skewness | 0.198 |
| kurtosis | -0.248 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19540.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.835; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.930 |
