CRYSTAL STRUCTURE OF THE INSECT IMMUNE PROTEIN HEMOLIN: A NEW DOMAIN ARRANGEMENT WITH IMPLICATIONS FOR HOMOPHILIC ADHESION

Method: X-RAY DIFFRACTION D_max: 106.5 Å Quality: EXCELLENT

SAXS Profile

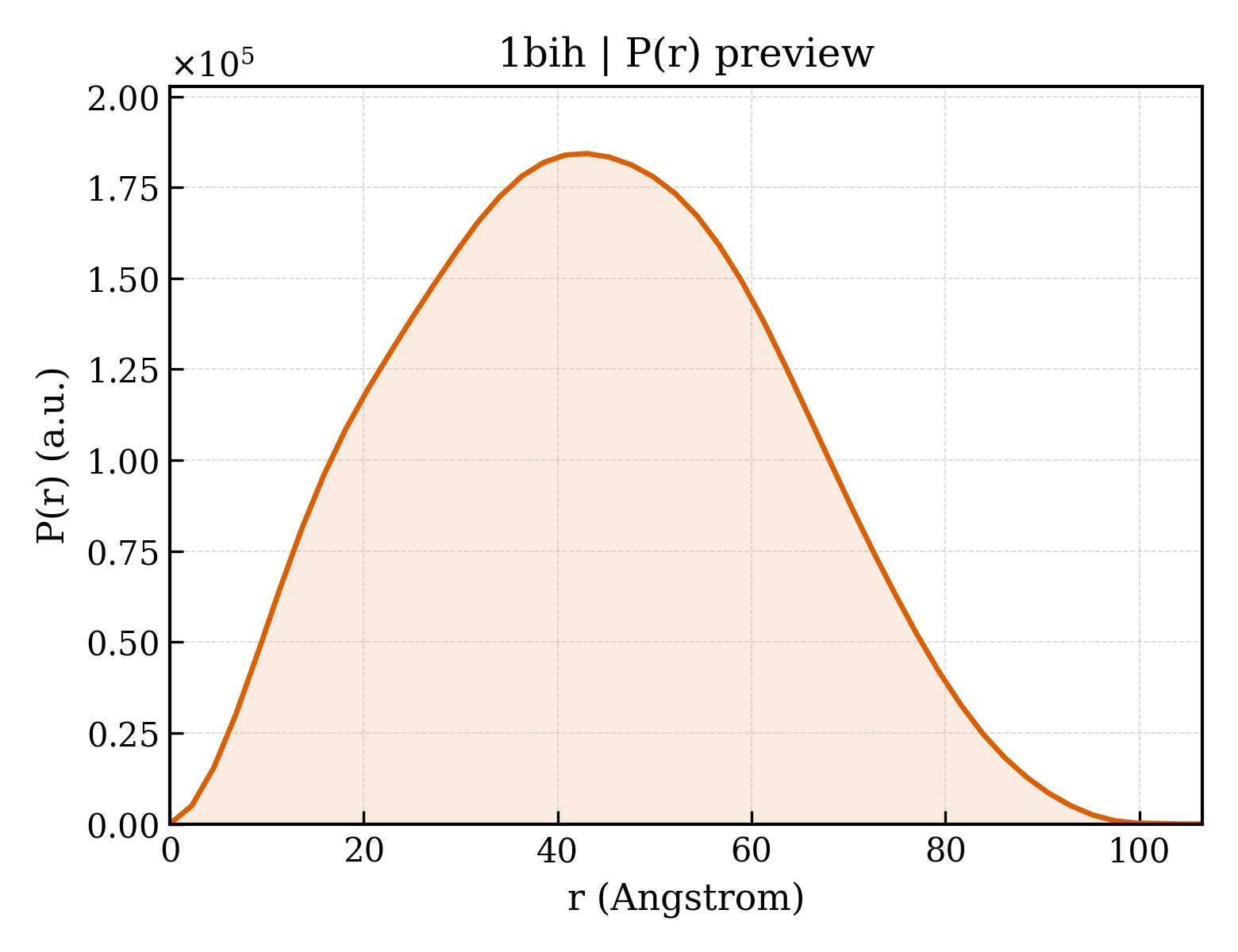

P(r) Distribution

▼

1. Structure Basics

entry_id	1bih
deposition_date	1998-06-17
title	CRYSTAL STRUCTURE OF THE INSECT IMMUNE PROTEIN HEMOLIN: A NEW DOMAIN ARRANGEMENT WITH IMPLICATIONS FOR HOMOPHILIC ADHESION
keywords	INSECT IMMUNITY, LPS-BINDING, HOMOPHILIC ADHESION; INSECT IMMUNITY
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.83 Å
rg_electron	33.10 Å
i0	122496000.00
molecular_weight	86766.0 kDa
excluded_volume	108150 Å³
envelope_volume	146700 Å³
shell_volume	38270 Å³
envelope_diameter	102.9 Å
shell_rg	38.82 Å
envelope_rg	32.08 Å
shape_rg	33.10 Å
total_rg	33.61 Å
total_atoms	6106
n_residues	782
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	106.5 Å
rg_real	33.73 Å
rg_real_error	0.91 Å
i0_real	1.2250e+08
i0_real_error	1.8000e+06
rg_reciprocal	33.79 Å
i0_reciprocal	122500000.0000
total_estimate	0.9099
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	43.1 Å
skewness	0.127
kurtosis	-0.629
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	8064000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.944

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	85.000 Å
length_b	90.300 Å
length_c	143.100 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	3.100 Å
resolution_low	20.000 Å
r_factor	0.2180
r_work	0.2180
r_free	0.2640

description	HEMOLIN
formula_weight	43945.6 kDa
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	6106

CRYSTAL STRUCTURE OF THE INSECT IMMUNE PROTEIN HEMOLIN: A NEW DOMAIN ARRANGEMENT WITH IMPLICATIONS FOR HOMOPHILIC ADHESION

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Hyalophora cecropia
common_name	cecropia moth
ncbi_taxonomy_id	7123
host_organism	Spodoptera frugiperda

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	2
