SAXSdb — 1bik

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BIKUNIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 206–352	Fragment：DOMAIN II,78 - 133	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BIK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3QKG Crystal structure of alpha-1-microglobulin at 2.3 A resolution Deposited 2011-02-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–202（183 aa） Fragment：lipocalin	Mutation：C34S	NI NICKEL (II) ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；100 mM Tris-HCl, 1.1 M sodium citrate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.260
4ES7 crystal structure of protein HC from Homo sapiens at 2 angstrom Deposited 2012-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–193（167 aa） Fragment：UNP residues 27-193	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；0.2M ammonium citrate, 20% PEG 3350, 0.1M HEPES pH 6.9, 40% 1,1,1,3,3,3-Hexafluoro-z-propanol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.261
4U30 Human mesotrypsin complexed with bikunin Kunitz domain 2 Deposited 2014-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain X 283–340（58 aa） Fragment：BPTI/Kunitz inhibitor 2 residues 285-338	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.0 and 1 M sodium citrate	Resolution 2.50 Å R-free 0.223
4U30 Human mesotrypsin complexed with bikunin Kunitz domain 2 Deposited 2014-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Z 283–340（58 aa） Fragment：BPTI/Kunitz inhibitor 2 residues 285-338	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.0 and 1 M sodium citrate	Resolution 2.50 Å R-free 0.223
4U30 Human mesotrypsin complexed with bikunin Kunitz domain 2 Deposited 2014-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain W 283–340（58 aa） Fragment：BPTI/Kunitz inhibitor 2 residues 285-338	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.0 and 1 M sodium citrate	Resolution 2.50 Å R-free 0.223
4U30 Human mesotrypsin complexed with bikunin Kunitz domain 2 Deposited 2014-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain Y 283–340（58 aa） Fragment：BPTI/Kunitz inhibitor 2 residues 285-338	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.0 and 1 M sodium citrate	Resolution 2.50 Å R-free 0.223
6EJ7 Human Xylosyltransferase 1 in complex with UDP-xylose and peptide QEEEGAGGGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa）	Mutation：S215A, L220G, V221G	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 UDX URIDINE-5'-DIPHOSPHATE-XYLOPYRANOSE × 1 NA SODIUM ION × 1 PO4 PHOSPHATE ION × 9 EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus precipitant mix 2 (PEG8000 and ethylene glycol), 0.1M Bicine/Tris buffer at pH 7.5 0.1 M of Morpheus NPS mix.	Resolution 2.00 Å R-free 0.230
6EJ8 Human Xylosyltransferase 1 in complex with peptide QEEEGSGGGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa）	Mutation：L220G, V221G	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NA SODIUM ION × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 2.09 Å R-free 0.223
6EJ9 Human Xylosyltransferase 1 in complex with peptide QEPEGSGGGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–220（11 aa）	Mutation：E212P, L220G, V221G	PO4 PHOSPHATE ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 2.02 Å R-free 0.225
6EJA Human Xylosyltransferase 1 in complex with peptide QEEEYSGGGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa） Fragment：UNP residues 210-221	Mutation：G214Y, L220G, V221G	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 1.94 Å R-free 0.212
6EJB Human Xylosyltransferase 1 in complex with peptide QEEEGSAGGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa）	Mutation：G216A, L220G, V221G	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 2.56 Å R-free 0.280
6EJC Human Xylosyltransferase 1 in complex with peptide QEEEGSGVGQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa） Fragment：UNP residues 210-221	Mutation：G217V, L220G, V221G	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 2.06 Å R-free 0.273
6EJD Human Xylosyltransferase 1 in complex with peptide QEEEGSGGPQGG Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 210–221（12 aa） Fragment：UNP residues 210-221	Mutation：G218P, L220G, V221G	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；55-65% Morpheus Precipitant mix 2 (PEG8000 and Ethylene glycol) 0.1M Bicine/Tris buffer at pH 7.5 0.1M of NPS mix (0.033M of each)	Resolution 2.68 Å R-free 0.279

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMBP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–147； UniProt 206–352

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bik
Deposition date deposition_date	1997-11-26
Structure title title	X-RAY STRUCTURE OF BIKUNIN FROM THE HUMAN INTER-ALPHA-INHIBITOR COMPLEX
Keywords keywords	;GLYCOPROTEIN, BIKUNIN, TRYPSTATIN, URINARY TRYPSIN INHIBITOR, URONIC-ACID-RICH PROTEIN, SERINE PROTEASE INHIBITOR (KUNITZ TYPE), GLYCOSYLATED PROTEIN ;; GLYCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

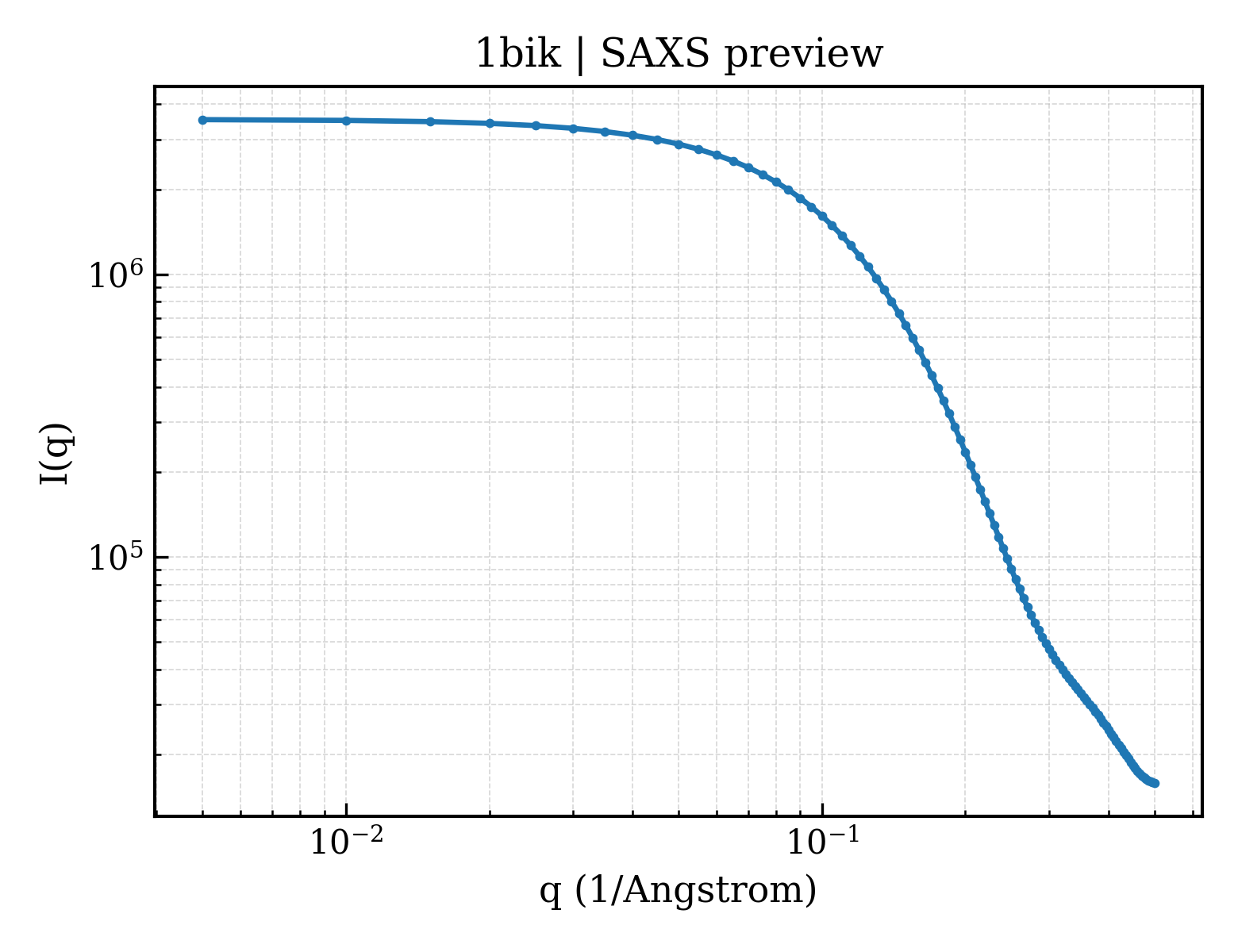

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.51 Å
Radius of gyration Rg (electron density) rg_electron	14.74 Å
Forward intensity I(0) i0	3536830.00
Molecular weight molecular_weight	12326.0 kDa
Excluded volume excluded_volume	14945 Å³
Envelope volume envelope_volume	16893 Å³
Hydration-shell volume shell_volume	10491 Å³
Envelope diameter envelope_diameter	57.0 Å
Shell Rg shell_rg	19.41 Å
Envelope Rg envelope_rg	15.12 Å
Shape Rg shape_rg	14.61 Å
Total Rg total_rg	15.96 Å
Total atoms total_atoms	851
Residues n_residues	110
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

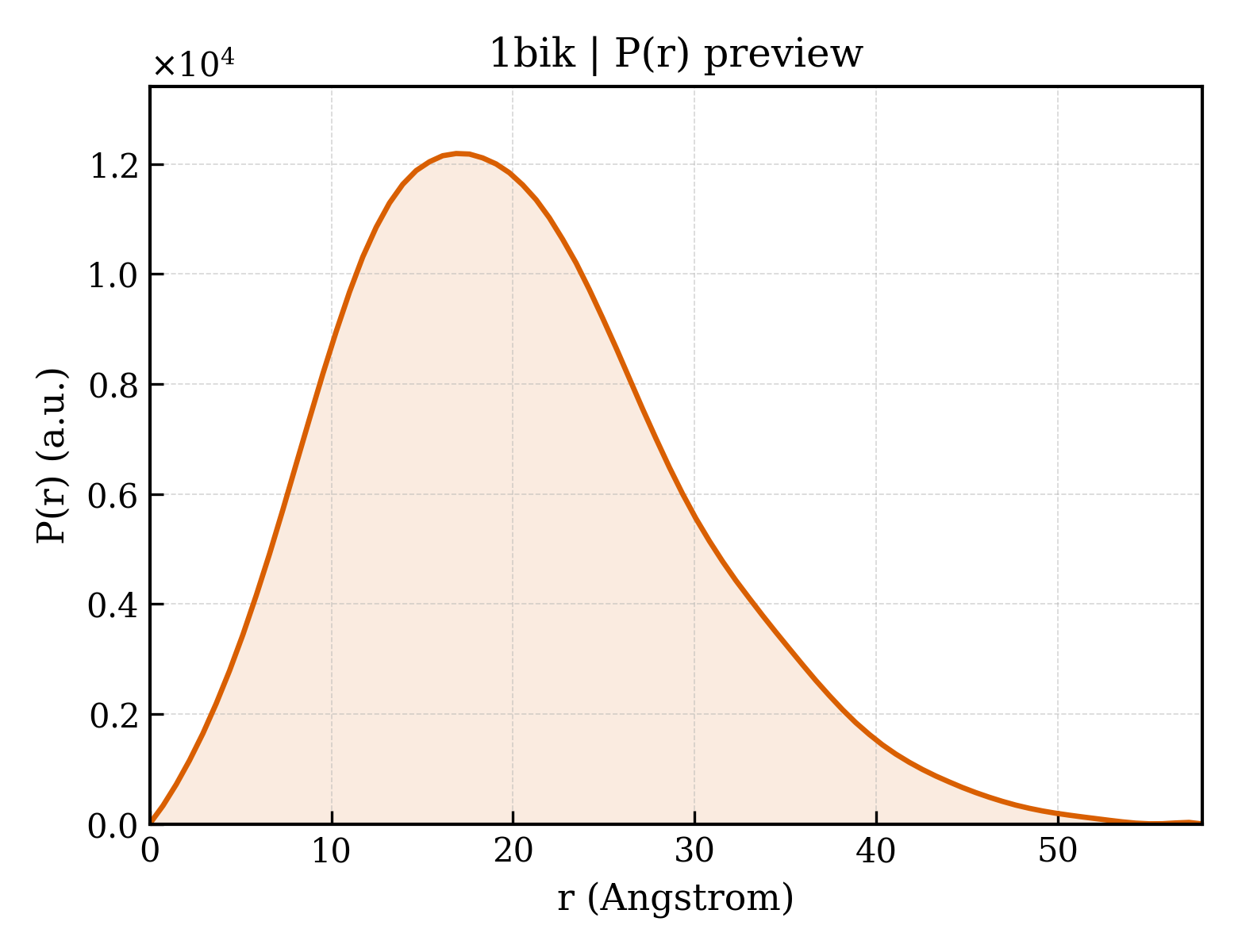

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.9 Å
Rg (real space) rg_real	15.58 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	3.5370e+06
I(0) uncertainty (real space) i0_real_error	4.4390e+04
Rg (reciprocal space) rg_reciprocal	15.58 Å
I(0) (reciprocal space) i0_reciprocal	3537000.0000
Solution quality estimate total_estimate	0.8122
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.9 Å
Skewness Skewness skewness	0.513
Kurtosis Kurtosis kurtosis	0.012
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	902000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.632; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.676; Smooth: 0.984

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BIKUNIN
Molecular weight formula_weight	15987.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	884

AVLPQEEEGSGGGQLVTEVTKKEDSCQLGYSAGPCMGMTSRYFYNGTSMACETFQYGGCMGNGNNFVTEKECLQTCRTVAACNLPIVRGPCRAFIQLWAFDAVKGKCVLFPYGGCQGNGNKFYSEKECREYCGVPGDGDEELLRFSN

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	33

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1bika1
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bika2
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

CATH v4.4 (1 domains)

Domain ID domain_id	1bikA00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	55.300 Å
Unit-cell length b length_b	55.300 Å
Unit-cell length c length_c	146.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2530
