1bj7
BOVINE LIPOCALIN ALLERGEN BOS D 2

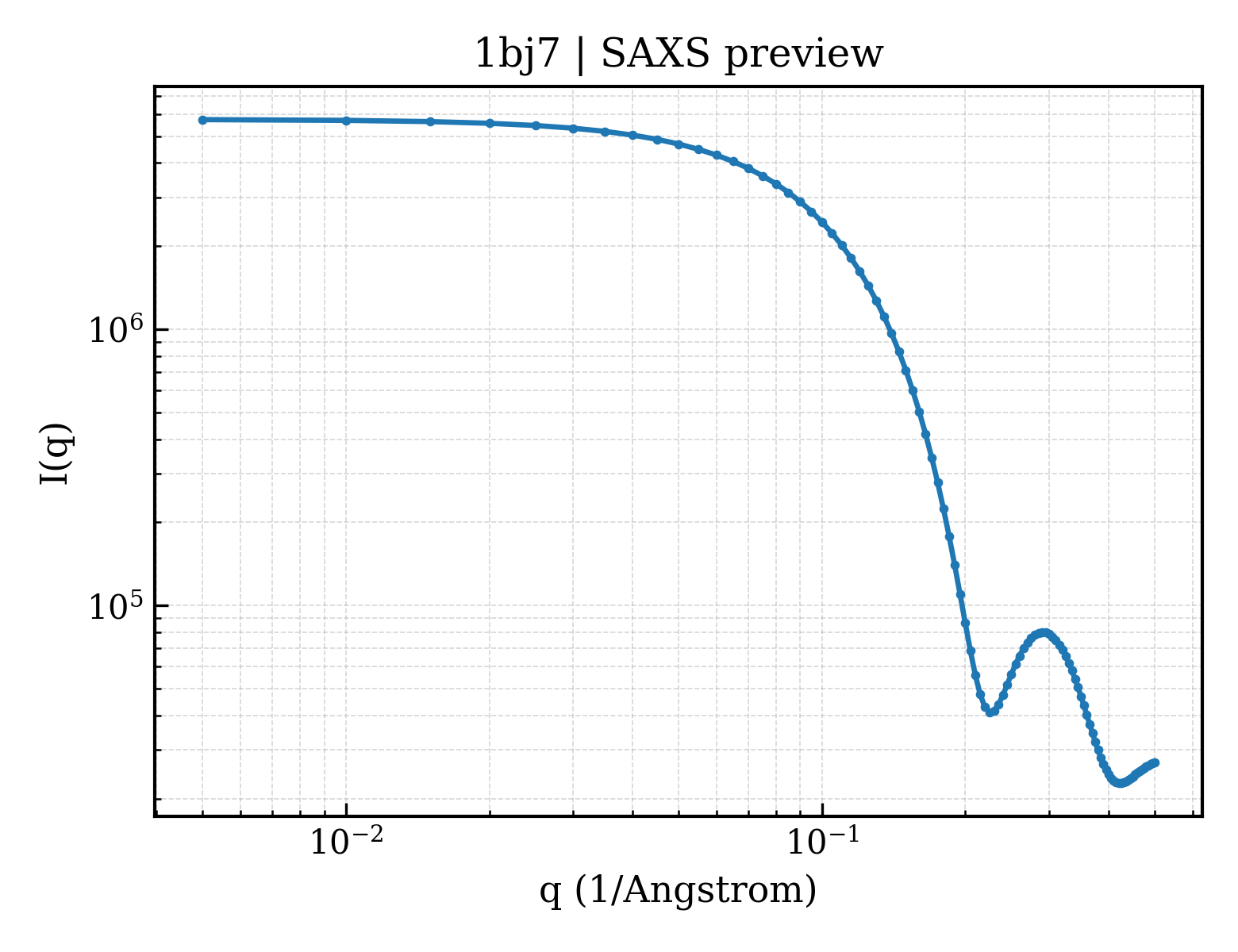

SAXS Profile

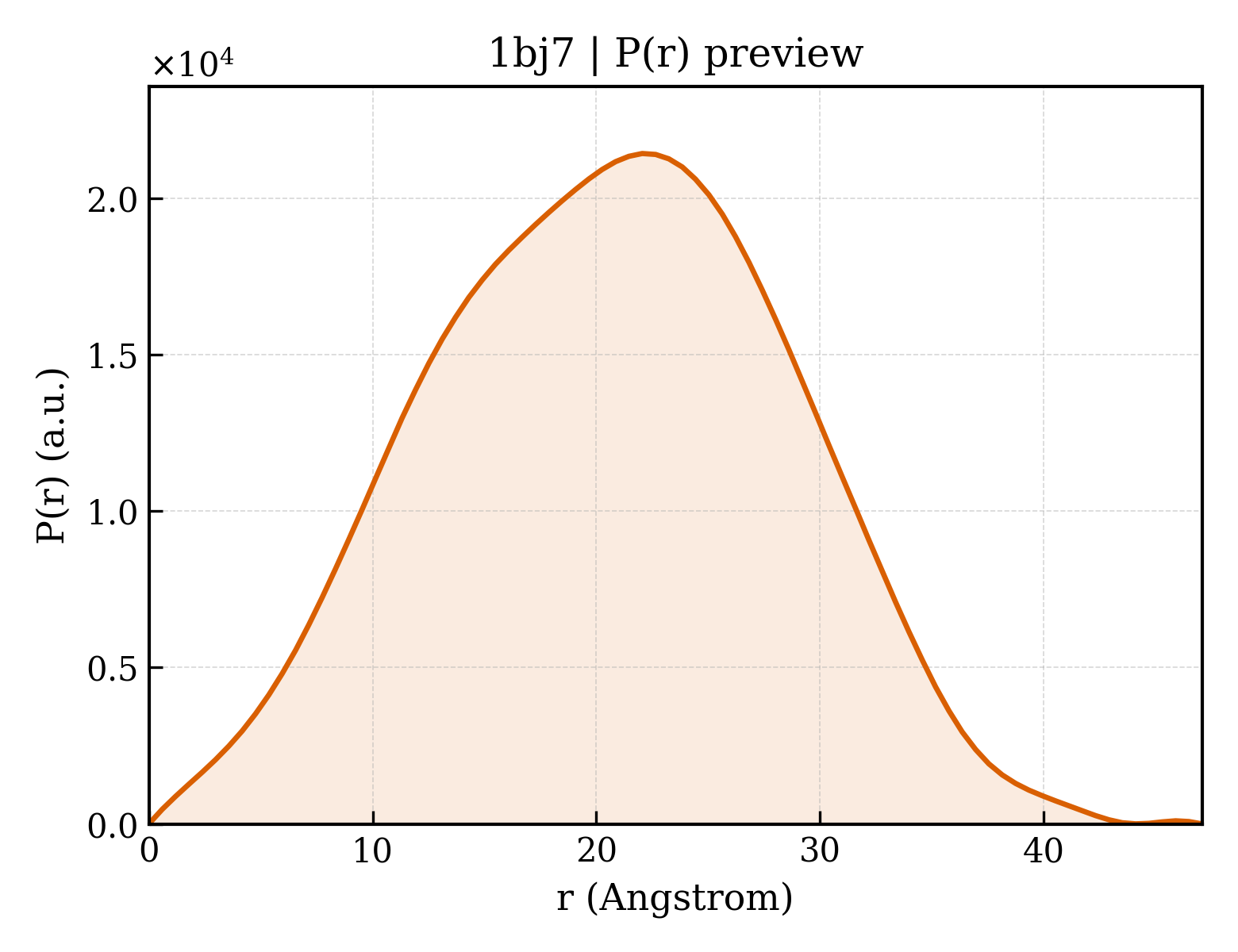

P(r) Distribution
1. Structure Basics
| entry_id | 1bj7 |
| deposition_date | 1998-07-02 |
| title | BOVINE LIPOCALIN ALLERGEN BOS D 2 |
| keywords | ALLERGEN, LIPOCALIN; ALLERGEN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.74 Å |
| rg_electron | 14.31 Å |
| i0 | 5753770.00 |
| molecular_weight | 17186.0 kDa |
| excluded_volume | 21448 ų |
| envelope_volume | 23576 ų |
| shell_volume | 13759 ų |
| envelope_diameter | 45.9 Å |
| shell_rg | 20.37 Å |
| envelope_rg | 14.52 Å |
| shape_rg | 14.29 Å |
| total_rg | 15.52 Å |
| total_atoms | 1208 |
| n_residues | 150 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.1 Å |
| rg_real | 15.60 Å |
| rg_real_error | 0.24 Å |
| i0_real | 5.7540e+06 |
| i0_real_error | 6.6990e+04 |
| rg_reciprocal | 15.61 Å |
| i0_reciprocal | 5754000.0000 |
| total_estimate | 0.8992 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | -0.012 |
| kurtosis | -0.494 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1392000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.910; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.980 |
