SAXSdb — 1bjj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGKISTRODOTOXIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–122	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
10	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–122 Chain C； UniProt 1–122	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–122	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–122	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 1–122	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 1–122	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 1–122	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
7	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–122 Chain D； UniProt 1–122	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
8	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–122 Chain E； UniProt 1–122	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260
9	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–122 Chain F； UniProt 1–122	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.80 Å R-free 0.260

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BJJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–122（122 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–122（122 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–122（122 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 1–122（122 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285
1A2A AGKISTROTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS Deposited 1997-12-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 1–122（122 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.80 Å R-free 0.285

1 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PA23_AGKHP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–122； UniProt 1–122 Author chain B； PDBConstruct 1–122； UniProt 1–122 Author chain C； PDBConstruct 1–122； UniProt 1–122 Author chain D； PDBConstruct 1–122； UniProt 1–122 Author chain E； PDBConstruct 1–122； UniProt 1–122 Author chain F； PDBConstruct 1–122； UniProt 1–122

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bjj
Deposition date deposition_date	1998-06-25
Structure title title	AGKISTRODOTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS
Keywords keywords	PRESYNAPTIC NEUROTOXIN, PHOSPHOLIPASE A2, HYDROLASE; PRESYNAPTIC NEUROTOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.25 Å
Radius of gyration Rg (electron density) rg_electron	30.82 Å
Forward intensity I(0) i0	132664000.00
Molecular weight molecular_weight	84295.0 kDa
Excluded volume excluded_volume	102320 Å³
Envelope volume envelope_volume	138330 Å³
Hydration-shell volume shell_volume	38041 Å³
Envelope diameter envelope_diameter	102.6 Å
Shell Rg shell_rg	37.41 Å
Envelope Rg envelope_rg	30.11 Å
Shape Rg shape_rg	30.88 Å
Total Rg total_rg	31.20 Å
Total atoms total_atoms	5840
Residues n_residues	732
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.0 Å
Rg (real space) rg_real	31.14 Å
Rg uncertainty (real space) rg_real_error	0.62 Å
I(0) (real space) i0_real	1.3270e+08
I(0) uncertainty (real space) i0_real_error	1.9950e+06
Rg (reciprocal space) rg_reciprocal	31.19 Å
I(0) (reciprocal space) i0_reciprocal	132700000.0000
Solution quality estimate total_estimate	0.9074
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.8 Å
Skewness Skewness skewness	0.191
Kurtosis Kurtosis kurtosis	-0.563
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5780000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.954; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.931

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1bjja_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1bjjb_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1bjjc_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1bjjd_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1bjje_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

Domain ID domain_id	d1bjjf_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

CATH v4.4 (6 domains)

Domain ID domain_id	1bjjA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1bjjB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1bjjC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1bjjD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1bjjE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

Domain ID domain_id	1bjjF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.750 Å
Unit-cell length b length_b	105.800 Å
Unit-cell length c length_c	110.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1940
R_work r_work	0.1940
R_free r_free	0.2600

Description description	AGKISTRODOTOXIN
Molecular weight formula_weight	14013.7 kDa
EC 编号 ec_number	3.1.1.4
Source method src_method	nat
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	5857

AGKISTRODOTOXIN, A PHOSPHOLIPASE A2-TYPE PRESYNAPTIC NEUROTOXIN FROM AGKISTRODON HALYS PALLAS

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGKISTRODOTOXIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

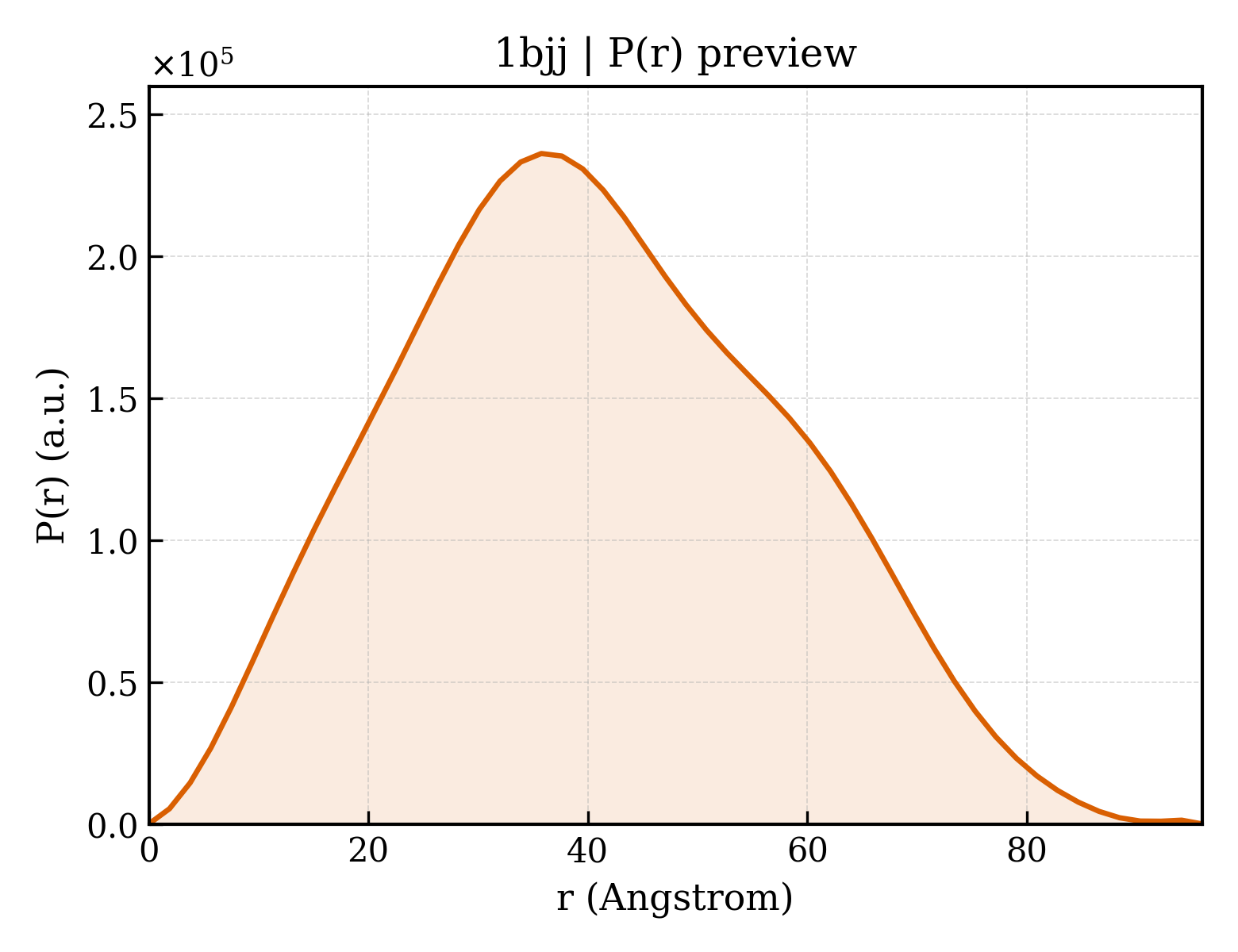

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

fit	/app/data/saxs_computation/bj/1bjj/1bjj.fit
pddf	/app/data/pr_computation/bj/1bjj/1bjj.pr.out
profile	/app/data/saxs_computation/bj/1bjj/1bjj.dat
