1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOLIPASE A2

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–124	Not recorded	CA CALCIUM ION × 1 PBP p-Bromophenacyl bromide × 1 BU1 1,4-BUTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.00 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BK9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1M8R Crystal Structures of Cadmium-binding Acidic Phospholipase A2 from the Venom of Agkistrodon halys pallas at 1.9 Resolution (crystal grown at pH 7.4) Deposited 2002-07-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–124（124 aa）	Not recorded	CD CADMIUM ION × 1 BU1 1,4-BUTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；10%(v/v) 1,4-butyldiol, 0.01M CdCl2, 0.1M Na(CH3)2AsO, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.210
1M8S Crystal Structures of Cadmium-binding Acidic Phospholipase A2 from the Venom of Agkistrodon halys pallas at 1.9 Resolution (crystal grown at pH 5.9) Deposited 2002-07-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–124（124 aa）	Not recorded	CD CADMIUM ION × 1 BU1 1,4-BUTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；293 K；10%(v/v) 1,4-butyldiol, 0.01M CdCl2, 0.1M Na(CH3)2AsO, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.209
1PSJ ACIDIC PHOSPHOLIPASE A2 FROM AGKISTRODON HALYS PALLAS Deposited 1995-05-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–124（124 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.228

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PA21B_AGKHP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–124； UniProt 1–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bk9
Deposition date deposition_date	1998-07-16
Structure title title	PHOSPHOLIPASE A2 MODIFIED BY PBPB
Keywords keywords	HYDROLASE, PHOSPHOLIPASE A2, PLATELET AGGREGATION INHIBITOR, PBPB; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.49 Å
Radius of gyration Rg (electron density) rg_electron	14.57 Å
Forward intensity I(0) i0	4568530.00
Molecular weight molecular_weight	14297.0 kDa
Excluded volume excluded_volume	17401 Å³
Envelope volume envelope_volume	19663 Å³
Hydration-shell volume shell_volume	11718 Å³
Envelope diameter envelope_diameter	52.7 Å
Shell Rg shell_rg	20.03 Å
Envelope Rg envelope_rg	15.02 Å
Shape Rg shape_rg	14.57 Å
Total Rg total_rg	15.60 Å
Total atoms total_atoms	1199
Residues n_residues	124
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.4 Å
Rg (real space) rg_real	15.48 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	4.5690e+06
I(0) uncertainty (real space) i0_real_error	5.7010e+04
Rg (reciprocal space) rg_reciprocal	15.48 Å
I(0) (reciprocal space) i0_reciprocal	4569000.0000
Solution quality estimate total_estimate	0.8632
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.9 Å
Skewness Skewness skewness	0.338
Kurtosis Kurtosis kurtosis	-0.261
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1233000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.774; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.952

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PHOSPHOLIPASE A2
Molecular weight formula_weight	13988.8 kDa
EC 编号 ec_number	3.1.1.4
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1457

SLIQFETLIMKVAKKSGMFWYSNYGCYCGWGGQGRPQDATDRCCFVHDCCYGKVTGCDPKMDVYSFSEENGDIVCGGDDPCKKEICECDRAAAICFRDNLTLYNDKKYWAFGAKNCPQEESEPC

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	p-Bromophenacyl bromide
Molecular weight formula_weight	277.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,4-BUTANEDIOL
Molecular weight formula_weight	90.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	86

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bk9a_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

CATH v4.4 (1 domains)

Domain ID domain_id	1bk9A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	82.820 Å
Unit-cell length b length_b	82.820 Å
Unit-cell length c length_c	32.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1530
R_work r_work	0.1530
R_free r_free	0.2260

fit	/app/data/saxs_computation/bk/1bk9/1bk9.fit
pddf	/app/data/pr_computation/bk/1bk9/1bk9.pr.out
profile	/app/data/saxs_computation/bk/1bk9/1bk9.dat

PHOSPHOLIPASE A2 MODIFIED BY PBPB

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOLIPASE A2

State in the Current Structure

Other States of the Same Protein in the Database

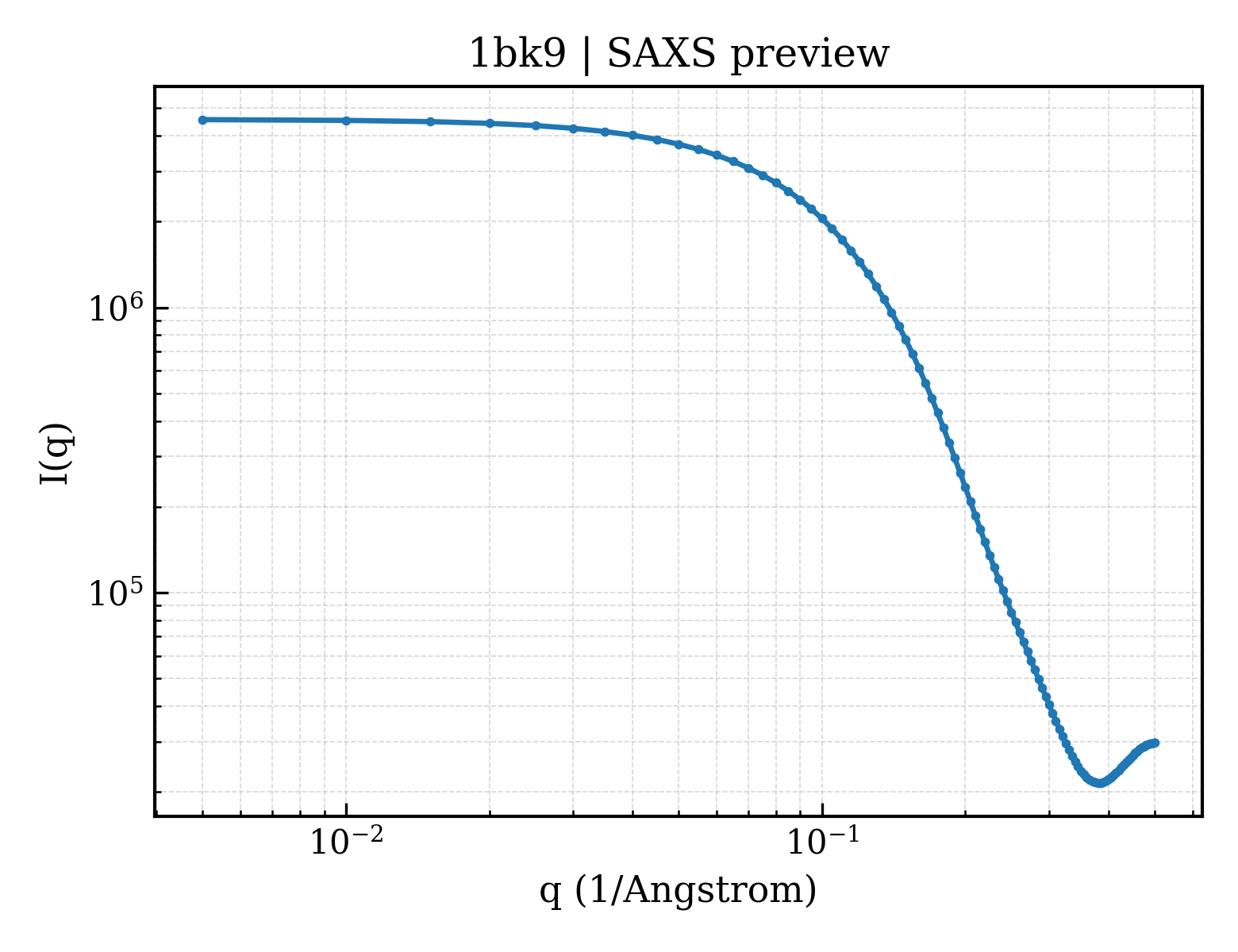

SAXS scattering curve SAXS Profile
