MUCONATE LACTONIZING ENZYME FROM PSEUDOMONAS PUTIDA

Method: X-RAY DIFFRACTION D_max: 137.2 Å Quality: GOOD

SAXS Profile

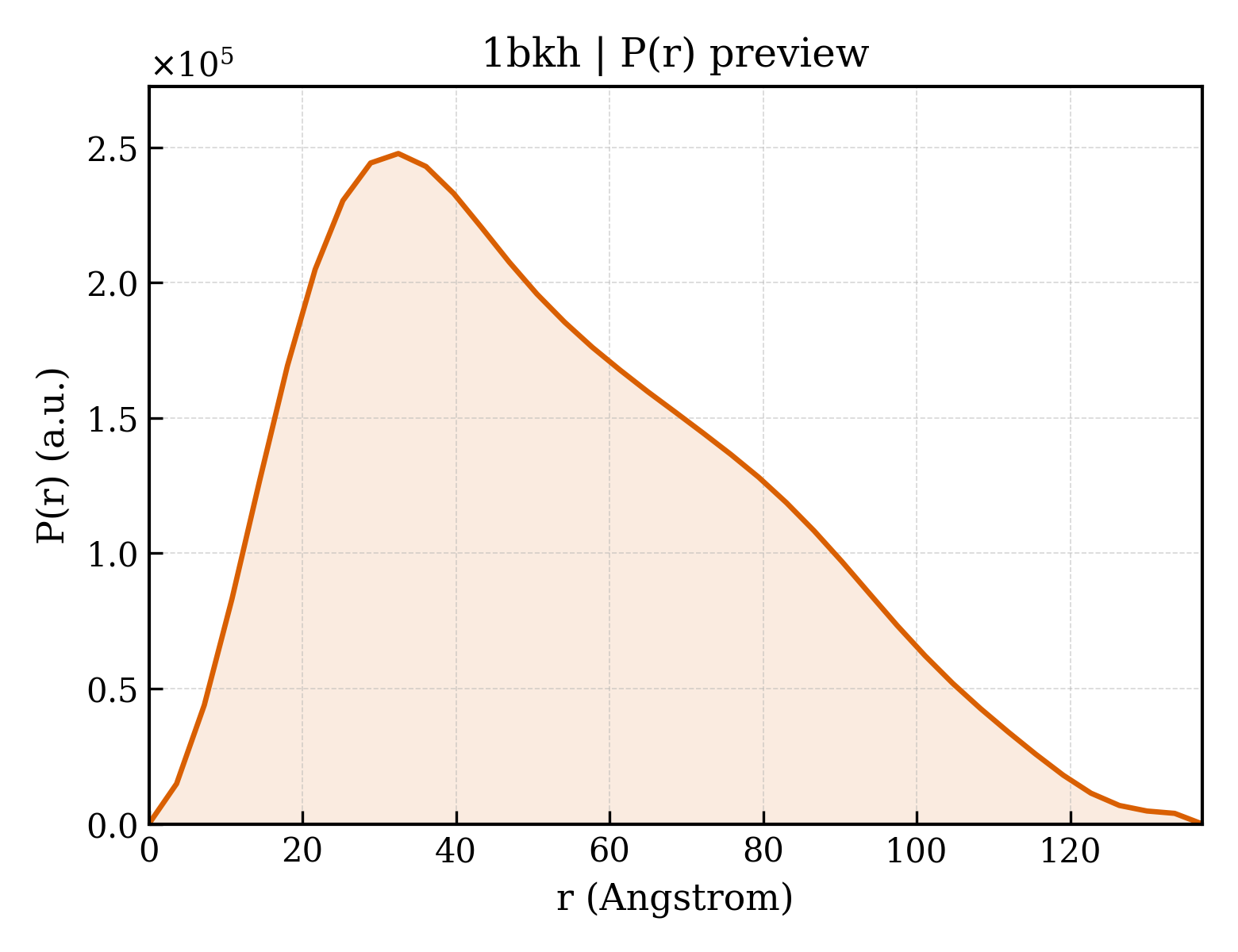

P(r) Distribution

▼

1. Structure Basics

entry_id	1bkh
deposition_date	1998-07-07
title	MUCONATE LACTONIZING ENZYME FROM PSEUDOMONAS PUTIDA
keywords	MUCONATE LACTONIZING ENZYME, MUCONATE CYCLOISOMERASE AROMATIC HYDROCARBONS CATABOLISM, ISOMERASE, MUCONATE CYCLOISOMERASE; MUCONATE CYCLOISOMERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.17 Å
rg_electron	41.43 Å
i0	202269000.00
molecular_weight	115850.0 kDa
excluded_volume	145350 Å³
envelope_volume	188080 Å³
shell_volume	40354 Å³
envelope_diameter	144.6 Å
shell_rg	42.95 Å
envelope_rg	41.08 Å
shape_rg	41.41 Å
total_rg	41.56 Å
total_atoms	8157
n_residues	1078
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	137.2 Å
rg_real	41.53 Å
rg_real_error	1.09 Å
i0_real	2.0230e+08
i0_real_error	3.3230e+06
rg_reciprocal	41.17 Å
i0_reciprocal	202200000.0000
total_estimate	0.8013
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	32.5 Å
skewness	0.498
kurtosis	-0.514
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	29270000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.735; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.755; Smooth: 0.453

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	136.180 Å
length_b	136.180 Å
length_c	265.110 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	48

space_group	I 4 2 2
int_tables_number	97
crystal_system	—

resolution	2.100 Å
resolution_low	5.000 Å
r_factor	0.1570
r_work	0.1570
r_free	—

description	MUCONATE LACTONIZING ENZYME
formula_weight	39878.6 kDa
ec_number	5.5.1.1
src_method	man
entity_count	3

type	polypeptide(L)
strand_id	A,B,C
atom_count	8721

MUCONATE LACTONIZING ENZYME FROM PSEUDOMONAS PUTIDA

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Pseudomonas putida
ncbi_taxonomy_id	303
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	564
