1bkp
THERMOSTABLE THYMIDYLATE SYNTHASE A FROM BACILLUS SUBTILIS

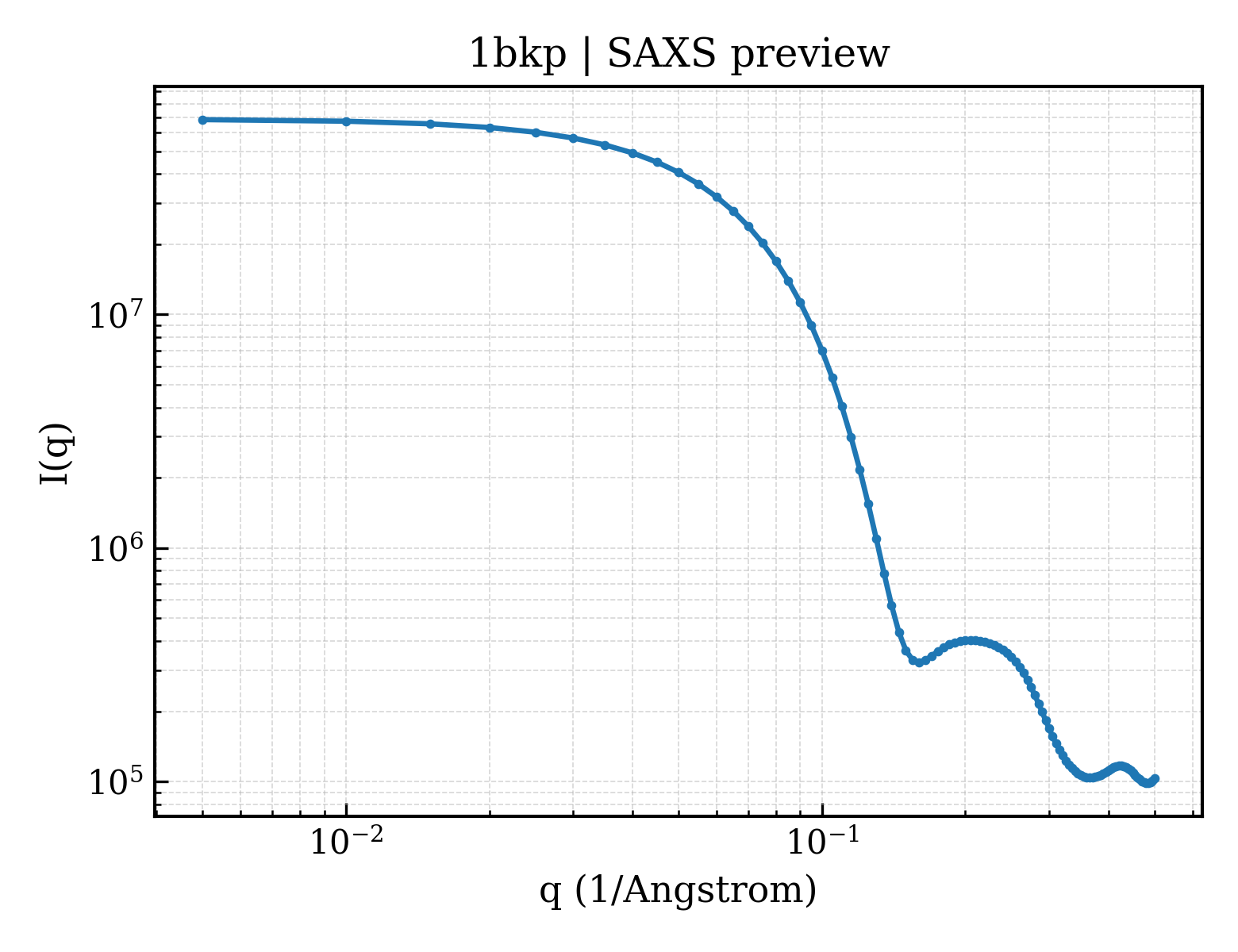

SAXS Profile

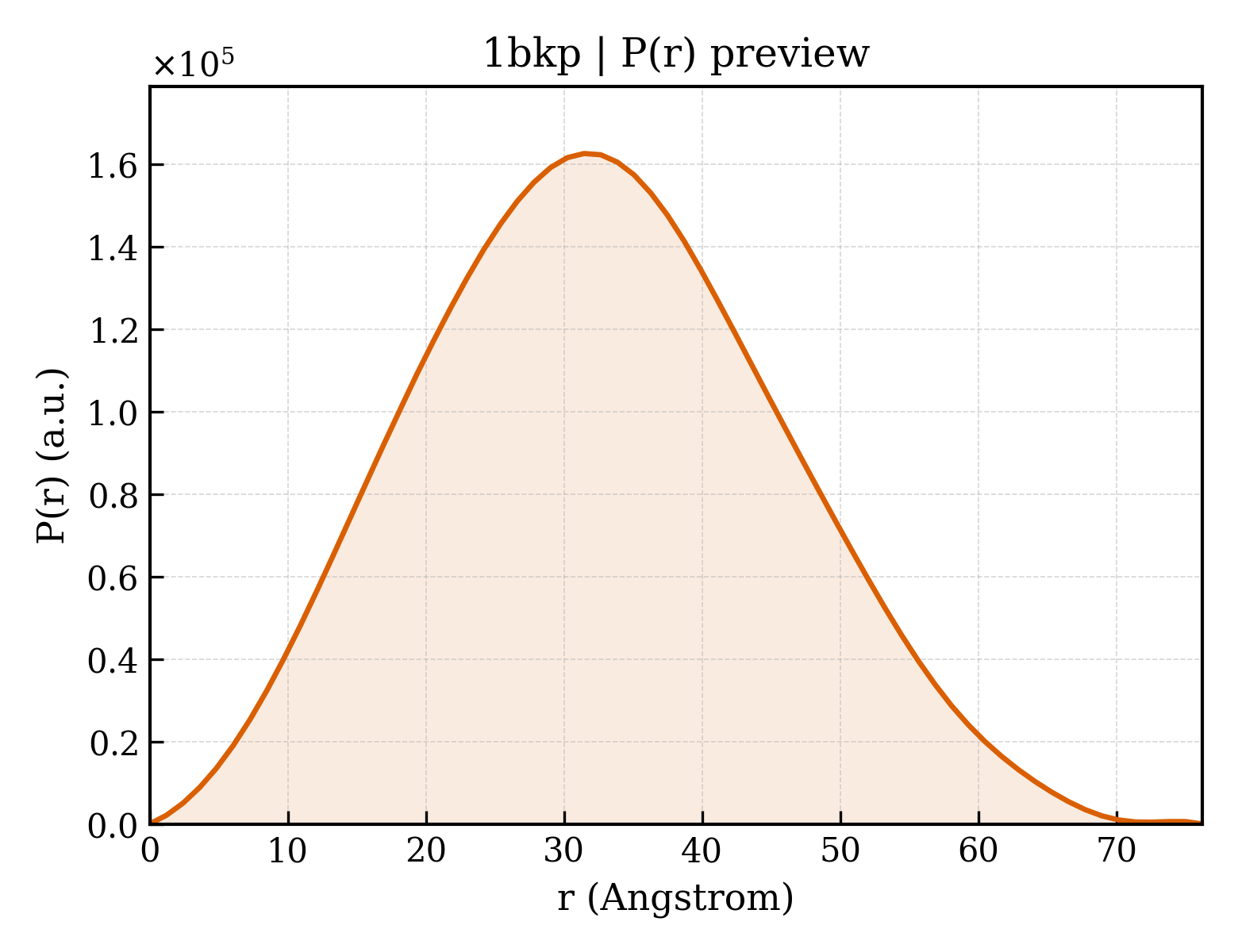

P(r) Distribution
1. Structure Basics
| entry_id | 1bkp |
| deposition_date | 1998-07-09 |
| title | THERMOSTABLE THYMIDYLATE SYNTHASE A FROM BACILLUS SUBTILIS |
| keywords | METHYLTRANSFERASE, DTMP SYNTHASE; METHYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.96 Å |
| rg_electron | 23.82 Å |
| i0 | 68613900.00 |
| molecular_weight | 65247.0 kDa |
| excluded_volume | 81709 ų |
| envelope_volume | 96454 ų |
| shell_volume | 32384 ų |
| envelope_diameter | 78.0 Å |
| shell_rg | 32.19 Å |
| envelope_rg | 24.06 Å |
| shape_rg | 23.82 Å |
| total_rg | 24.72 Å |
| total_atoms | 4608 |
| n_residues | 556 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 76.2 Å |
| rg_real | 24.82 Å |
| rg_real_error | 0.30 Å |
| i0_real | 6.8610e+07 |
| i0_real_error | 8.0500e+05 |
| rg_reciprocal | 24.86 Å |
| i0_reciprocal | 68620000.0000 |
| total_estimate | 0.9025 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 31.4 Å |
| skewness | 0.156 |
| kurtosis | -0.422 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11870000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.915; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.998 |
