1bku
EFFECTS OF GLYCOSYLATION ON THE STRUCTURE AND DYNAMICS OF EEL CALCITONIN, NMR, 10 STRUCTURES

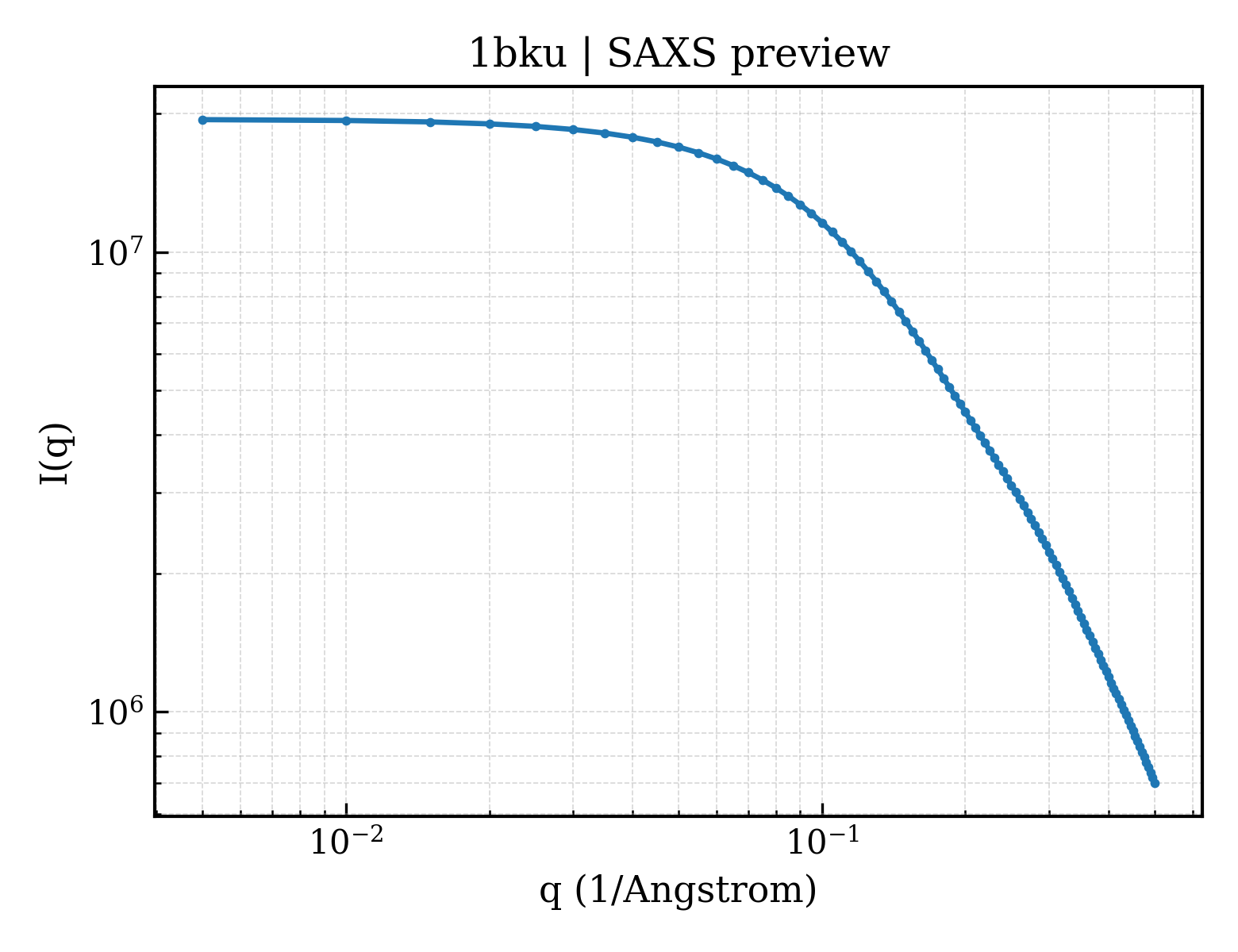

SAXS Profile

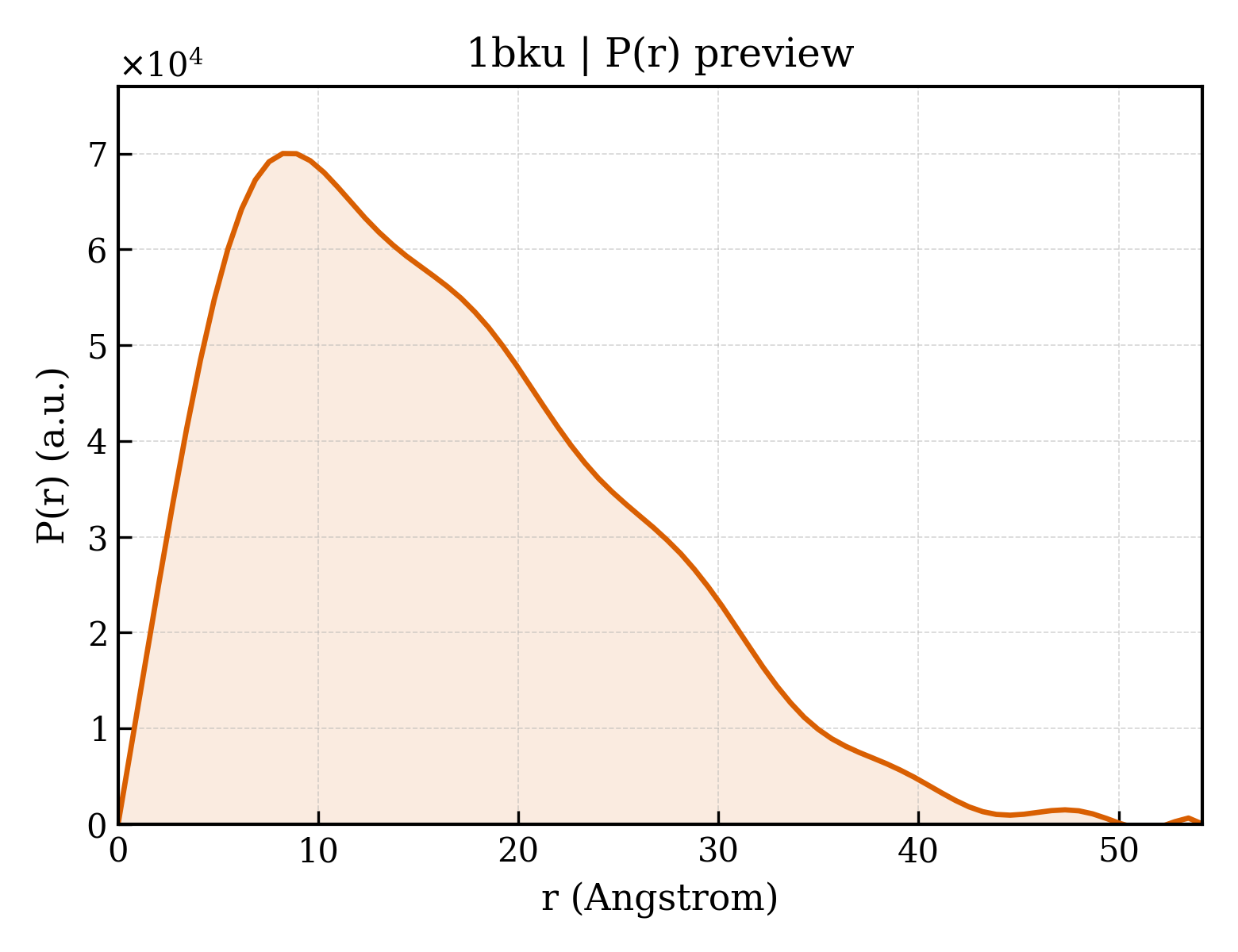

P(r) Distribution
1. Structure Basics
| entry_id | 1bku |
| deposition_date | 1998-07-13 |
| title | EFFECTS OF GLYCOSYLATION ON THE STRUCTURE AND DYNAMICS OF EEL CALCITONIN, NMR, 10 STRUCTURES |
| keywords | HORMONE, CALCIUM-REGULATING HORMONE; HORMONE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.73 Å |
| rg_electron | 12.69 Å |
| i0 | 19432200.00 |
| molecular_weight | 34179.0 kDa |
| excluded_volume | 42343 ų |
| envelope_volume | 13304 ų |
| shell_volume | 8446 ų |
| envelope_diameter | 55.9 Å |
| shell_rg | 19.15 Å |
| envelope_rg | 15.98 Å |
| shape_rg | 12.63 Å |
| total_rg | 13.33 Å |
| total_atoms | 4810 |
| n_residues | 320 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.2 Å |
| rg_real | 13.04 Å |
| rg_real_error | 0.77 Å |
| i0_real | 1.9430e+07 |
| i0_real_error | 2.4500e+05 |
| rg_reciprocal | 13.02 Å |
| i0_reciprocal | 19430000.0000 |
| total_estimate | 0.5900 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 8.2 Å |
| skewness | 0.644 |
| kurtosis | -0.101 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 12000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.219; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.011; Smooth: 0.000 |
