1bkv
COLLAGEN

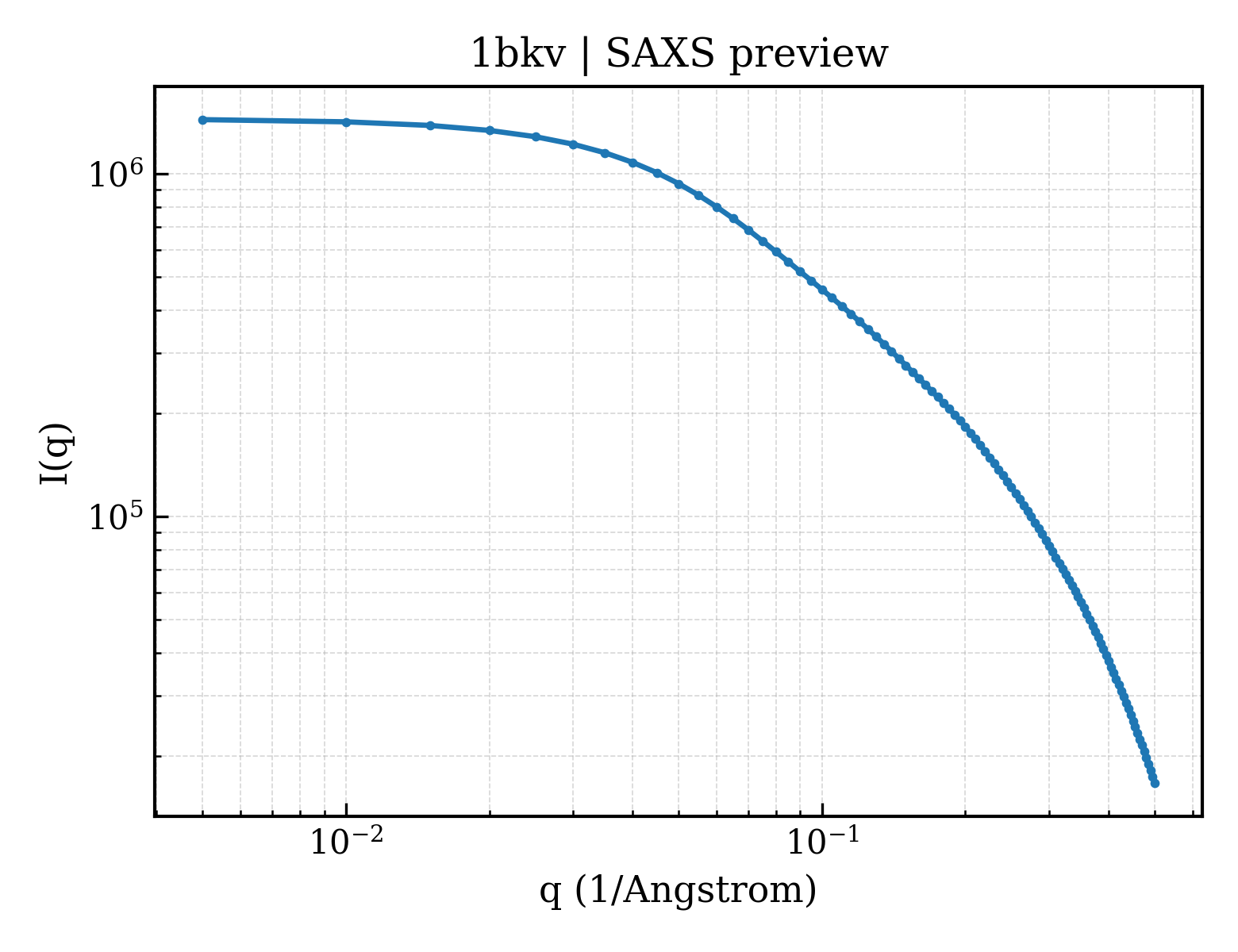

SAXS Profile

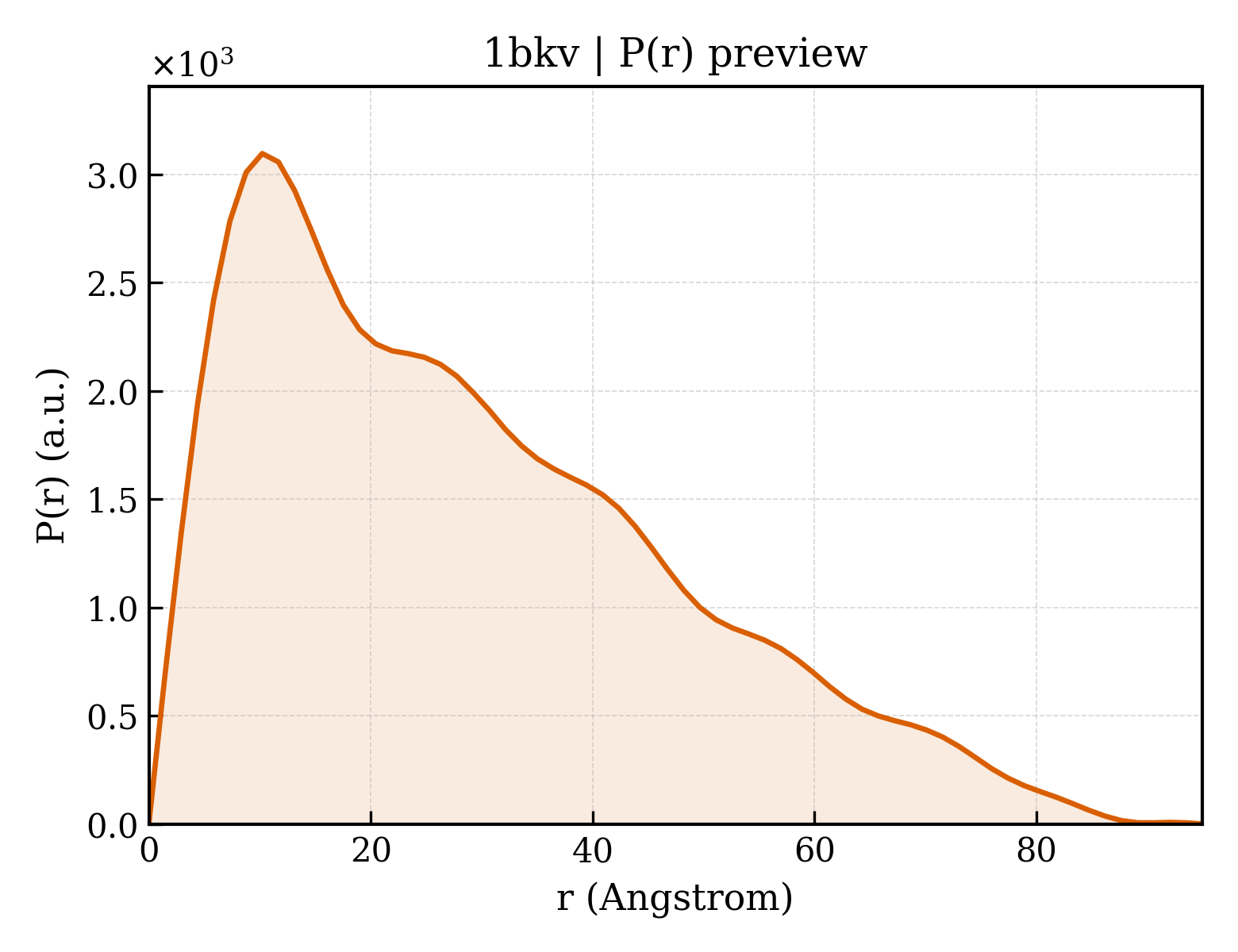

P(r) Distribution
1. Structure Basics
| entry_id | 1bkv |
| deposition_date | 1998-07-13 |
| title | COLLAGEN |
| keywords | COLLAGEN, HYDROXYPROLINE, HYDROGEN BONDING, TRIPLE HELIX, TYPE III COLLAGEN, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.39 Å |
| rg_electron | 24.64 Å |
| i0 | 1444280.00 |
| molecular_weight | 8252.0 kDa |
| excluded_volume | 10247 ų |
| envelope_volume | 13388 ų |
| shell_volume | 6647 ų |
| envelope_diameter | 92.9 Å |
| shell_rg | 23.60 Å |
| envelope_rg | 25.54 Å |
| shape_rg | 24.66 Å |
| total_rg | 24.40 Å |
| total_atoms | 581 |
| n_residues | 68 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 94.9 Å |
| rg_real | 24.28 Å |
| rg_real_error | 1.60 Å |
| i0_real | 1.4440e+06 |
| i0_real_error | 2.4000e+04 |
| rg_reciprocal | 24.07 Å |
| i0_reciprocal | 1444000.0000 |
| total_estimate | 0.6187 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 10.2 Å |
| skewness | 0.716 |
| kurtosis | -0.246 |
| angular_range | — – 0.3400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 35560.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.015; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.996 |
