1blb

CLOSE PACKING OF AN OLIGOMERIC EYE LENS BETA-CRYSTALLIN INDUCES LOSS OF SYMMETRY AND ORDERING OF SEQUENCE EXTENSIONS

Method: X-RAY DIFFRACTION D_max: 121.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA B2-CRYSTALLIN

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–204 Chain B； UniProt 1–204	Not recorded	No other associated polymer	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.30 Å
2	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–204 Chain D； UniProt 1–204	Not recorded	No other associated polymer	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BLB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BB2 X-RAY ANALYSIS OF BETA B2-CRYSTALLIN AND EVOLUTION OF OLIGOMERIC LENS PROTEINS Deposited 1992-09-21	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 14–194（181 aa）	Not recorded	BME BETA-MERCAPTOETHANOL × 8	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
2BB2 X-RAY ANALYSIS OF BETA B2-CRYSTALLIN AND EVOLUTION OF OLIGOMERIC LENS PROTEINS Deposited 1992-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 14–194（181 aa）	Not recorded	BME BETA-MERCAPTOETHANOL × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CRB2_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–204； UniProt 1–204 Author chain B； PDBConstruct 1–204； UniProt 1–204 Author chain C； PDBConstruct 1–204； UniProt 1–204 Author chain D； PDBConstruct 1–204； UniProt 1–204

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

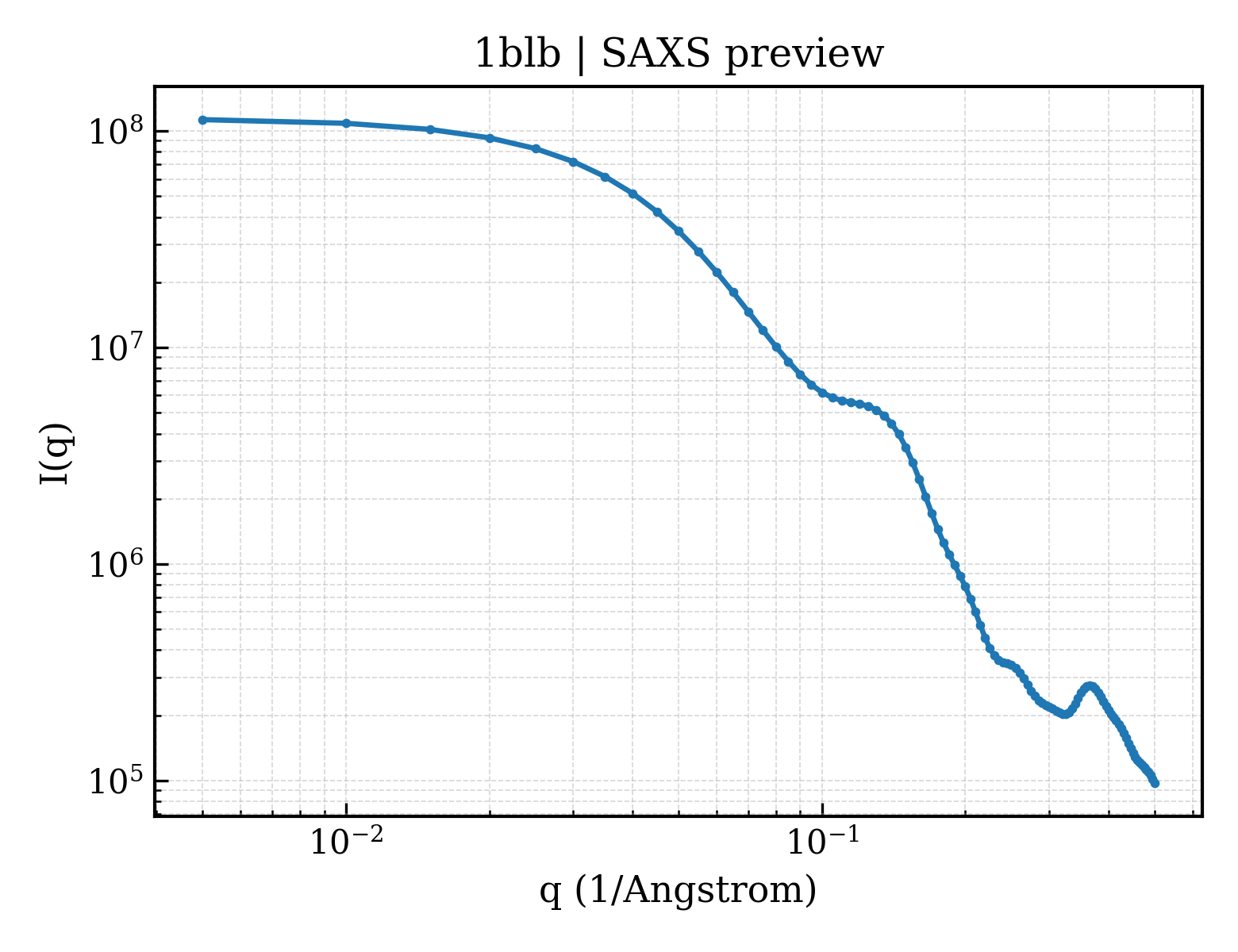

SAXS scattering curve SAXS Profile

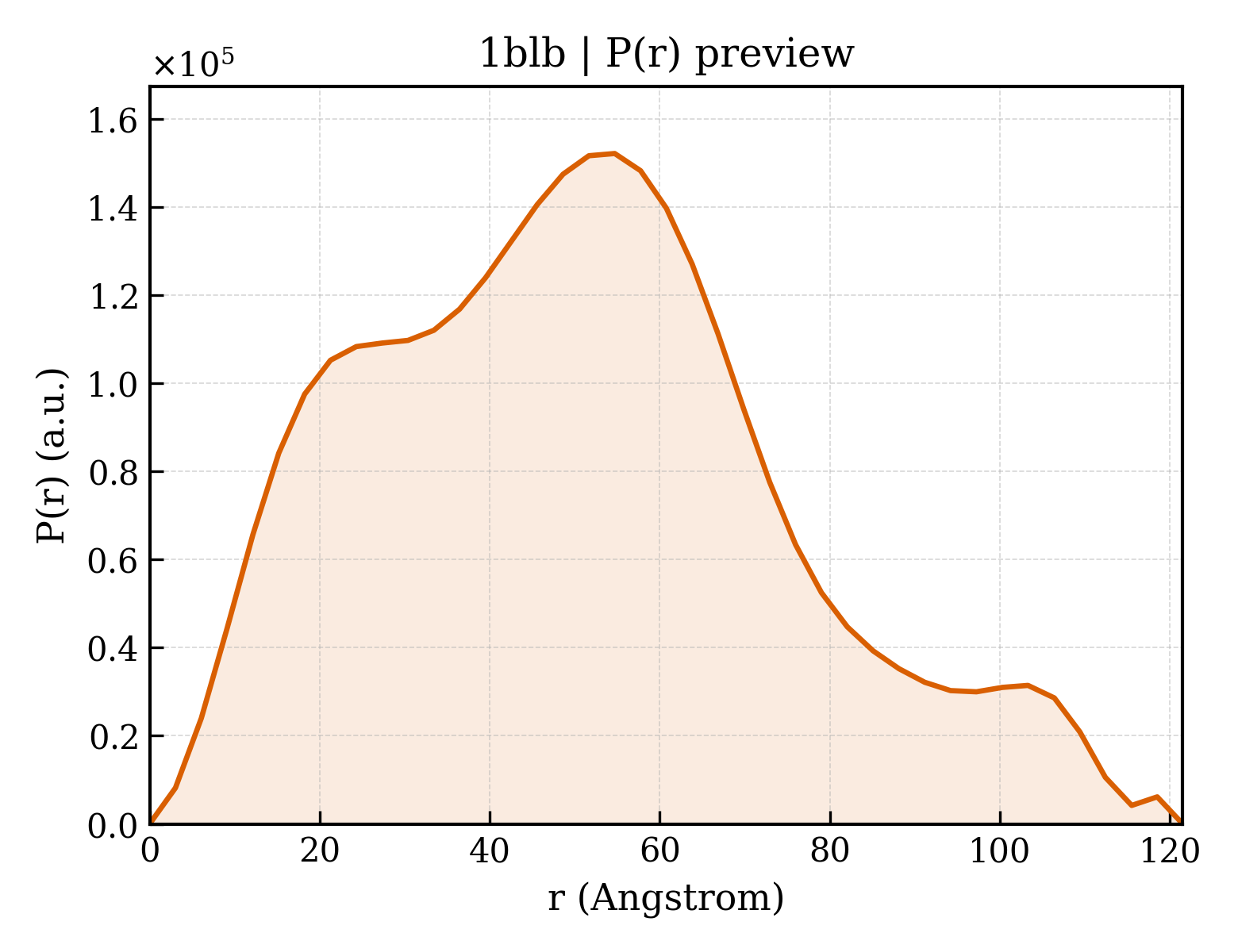

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1blb
Deposition date deposition_date	1993-12-22
Structure title title	CLOSE PACKING OF AN OLIGOMERIC EYE LENS BETA-CRYSTALLIN INDUCES LOSS OF SYMMETRY AND ORDERING OF SEQUENCE EXTENSIONS
Keywords keywords	EYE LENS PROTEIN; EYE LENS PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.24 Å
Radius of gyration Rg (electron density) rg_electron	39.21 Å
Forward intensity I(0) i0	114197000.00
Molecular weight molecular_weight	83978.0 kDa
Excluded volume excluded_volume	104070 Å³
Envelope volume envelope_volume	146170 Å³
Hydration-shell volume shell_volume	33762 Å³
Envelope diameter envelope_diameter	131.0 Å
Shell Rg shell_rg	40.80 Å
Envelope Rg envelope_rg	38.06 Å
Shape Rg shape_rg	39.22 Å
Total Rg total_rg	39.27 Å
Total atoms total_atoms	5941
Residues n_residues	736
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.5 Å
Rg (real space) rg_real	39.51 Å
Rg uncertainty (real space) rg_real_error	1.41 Å
I(0) (real space) i0_real	1.1420e+08
I(0) uncertainty (real space) i0_real_error	2.0350e+06
Rg (reciprocal space) rg_reciprocal	39.35 Å
I(0) (reciprocal space) i0_reciprocal	114200000.0000
Solution quality estimate total_estimate	0.7911
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	54.7 Å
Skewness Skewness skewness	0.396
Kurtosis Kurtosis kurtosis	-0.305
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5210000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.789; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.914; Smooth: 0.001

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1blba1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blba2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbb1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbb2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbc1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbc2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbd1
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

Domain ID domain_id	d1blbd2
Class class	b — All beta proteins
Fold Fold fold	b.11 — gamma-Crystallin-like
Superfamily Superfamily superfamily	b.11.1 — gamma-Crystallin-like
Family Family family	b.11.1.1 — Crystallins/Ca-binding development proteins

CATH v4.4 (8 domains)

Domain ID domain_id	1blbA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

Domain ID domain_id	1blbD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

▶

8. Citations (3)

▶

Unit-cell length a length_a	154.710 Å
Unit-cell length b length_b	165.900 Å
Unit-cell length c length_c	78.480 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 2
Space-group number int_tables_number	21
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Description description	BETA B2-CRYSTALLIN
Molecular weight formula_weight	23197.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5941

CLOSE PACKING OF AN OLIGOMERIC EYE LENS BETA-CRYSTALLIN INDUCES LOSS OF SYMMETRY AND ORDERING OF SEQUENCE EXTENSIONS

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA B2-CRYSTALLIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (3)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913

fit	/app/data/saxs_computation/bl/1blb/1blb.fit
pddf	/app/data/pr_computation/bl/1blb/1blb.pr.out
profile	/app/data/saxs_computation/bl/1blb/1blb.dat
