1blj
NMR ENSEMBLE OF BLK SH2 DOMAIN, 20 STRUCTURES
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1blj |
| deposition_date | 1996-03-26 |
| title | NMR ENSEMBLE OF BLK SH2 DOMAIN, 20 STRUCTURES |
| keywords | SIGNAL TRANSDUCTION, TYROSINE KINASE, TRANSFERASE, PHOSPHOTRANSFERASE, PHOSPHORYLATION; PHOSPHORYLATION |
| method | SOLUTION NMR |
Download Data

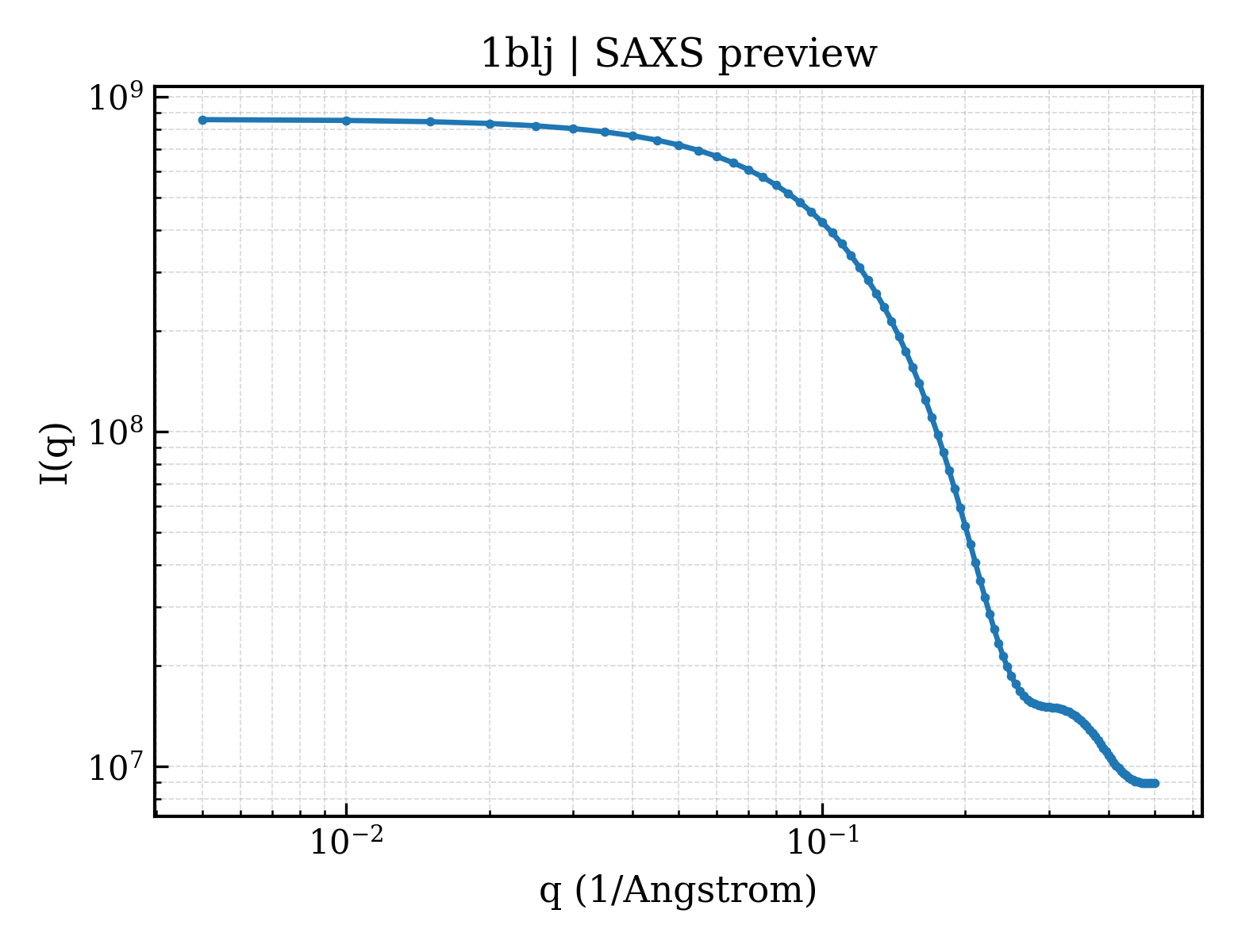

2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.54 Å |
| rg_electron | 14.20 Å |
| i0 | 857671000.00 |
| molecular_weight | 254750.0 kDa |
| excluded_volume | 322010 ų |
| envelope_volume | 35589 ų |
| shell_volume | 16834 ų |
| envelope_diameter | 62.0 Å |
| shell_rg | 24.21 Å |
| envelope_rg | 19.18 Å |
| shape_rg | 14.15 Å |
| total_rg | 14.57 Å |
| total_atoms | 36320 |
| n_residues | 2280 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

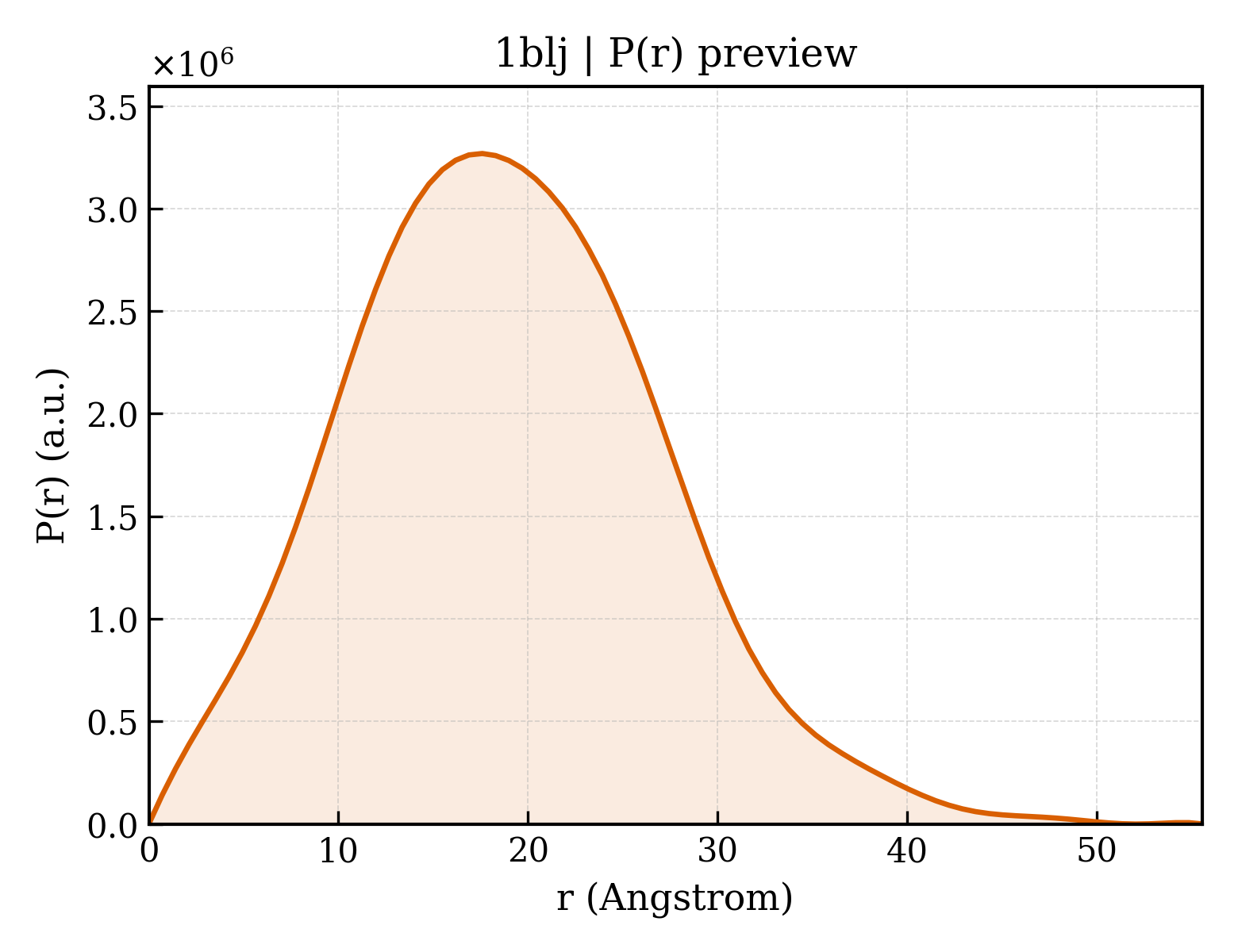

3. P(r) Analysis (GNOM)
| dmax | 55.6 Å |
| rg_real | 14.52 Å |
| rg_real_error | 0.43 Å |
| i0_real | 8.5770e+08 |
| i0_real_error | 9.5790e+06 |
| rg_reciprocal | 14.52 Å |
| i0_reciprocal | 857700000.0000 |
| total_estimate | 0.8062 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.6 Å |
| skewness | 0.340 |
| kurtosis | 0.058 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 274600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.545; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.850; Smooth: 0.993 |
