1blp
STRUCTURAL BASIS FOR THE INACTIVATION OF THE P54 MUTANT OF BETA-LACTAMASE FROM STAPHYLOCOCCUS AUREUS PC1
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1blp |
| deposition_date | 1993-09-23 |
| title | STRUCTURAL BASIS FOR THE INACTIVATION OF THE P54 MUTANT OF BETA-LACTAMASE FROM STAPHYLOCOCCUS AUREUS PC1 |
| keywords | HYDROLASE(ACTING ON CYCLIC AMIDES); HYDROLASE(ACTING ON CYCLIC AMIDES) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.92 Å |
| rg_electron | 17.91 Å |
| i0 | 12991000.00 |
| molecular_weight | 28146.0 kDa |
| excluded_volume | 35854 ų |
| envelope_volume | 40192 ų |
| shell_volume | 18695 ų |
| envelope_diameter | 62.1 Å |
| shell_rg | 24.20 Å |
| envelope_rg | 18.15 Å |
| shape_rg | 17.90 Å |
| total_rg | 18.95 Å |
| total_atoms | 1982 |
| n_residues | 253 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

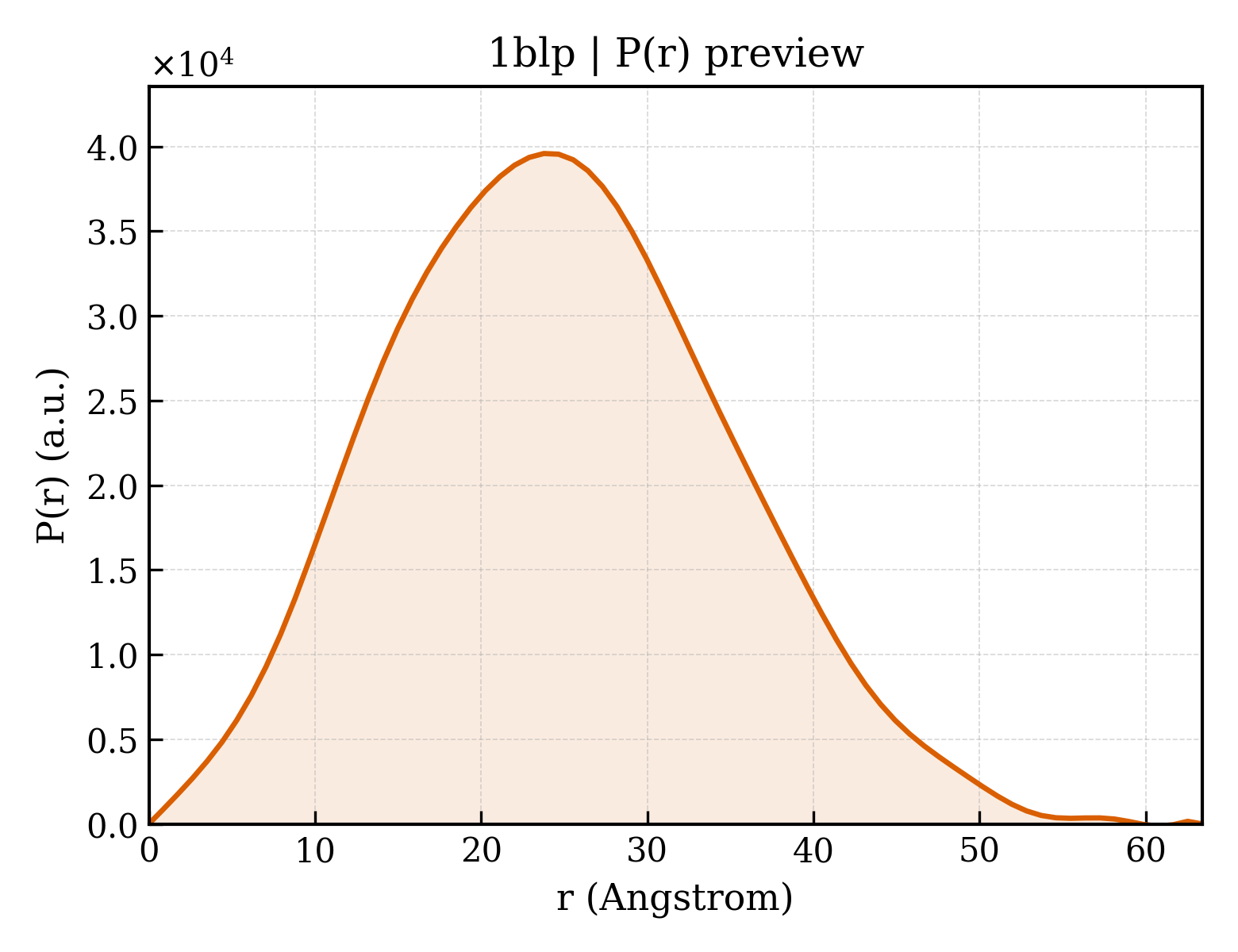

3. P(r) Analysis (GNOM)
| dmax | 63.4 Å |
| rg_real | 18.83 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.2990e+07 |
| i0_real_error | 1.6300e+05 |
| rg_reciprocal | 18.85 Å |
| i0_reciprocal | 12990000.0000 |
| total_estimate | 0.7977 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.8 Å |
| skewness | 0.228 |
| kurtosis | -0.309 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3304000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
