1blr
NMR SOLUTION STRUCTURE OF HUMAN CELLULAR RETINOIC ACID BINDING PROTEIN-TYPE II, 22 STRUCTURES
SAXS Profile

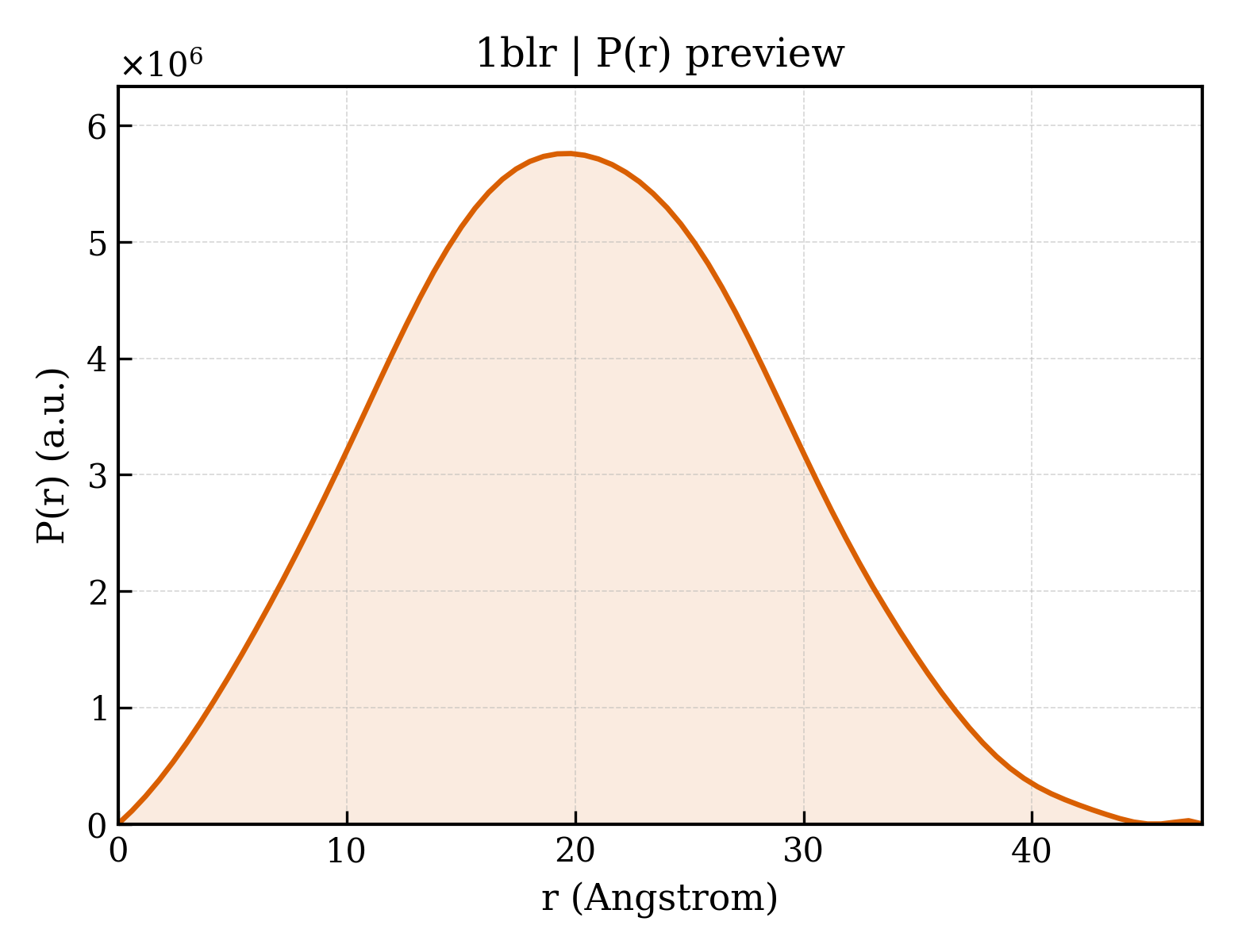

P(r) Distribution
1. Structure Basics
| entry_id | 1blr |
| deposition_date | 1998-07-20 |
| title | NMR SOLUTION STRUCTURE OF HUMAN CELLULAR RETINOIC ACID BINDING PROTEIN-TYPE II, 22 STRUCTURES |
| keywords | CRABPII, VITAMIN A, TRANSPORT; TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.54 Å |
| rg_electron | 15.36 Å |
| i0 | 1601750000.00 |
| molecular_weight | 342320.0 kDa |
| excluded_volume | 429710 ų |
| envelope_volume | 41624 ų |
| shell_volume | 19563 ų |
| envelope_diameter | 56.6 Å |
| shell_rg | 24.05 Å |
| envelope_rg | 17.48 Å |
| shape_rg | 15.35 Å |
| total_rg | 15.56 Å |
| total_atoms | 48334 |
| n_residues | 3014 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.5 Å |
| rg_real | 15.45 Å |
| rg_real_error | 0.23 Å |
| i0_real | 1.6020e+09 |
| i0_real_error | 1.7350e+07 |
| rg_reciprocal | 15.46 Å |
| i0_reciprocal | 1602000000.0000 |
| total_estimate | 0.9035 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 19.8 Å |
| skewness | 0.107 |
| kurtosis | -0.473 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 509200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.948; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.904 |
