1bmc
STRUCTURE OF A ZINC METALLO-BETA-LACTAMASE FROM BACILLUS CEREUS

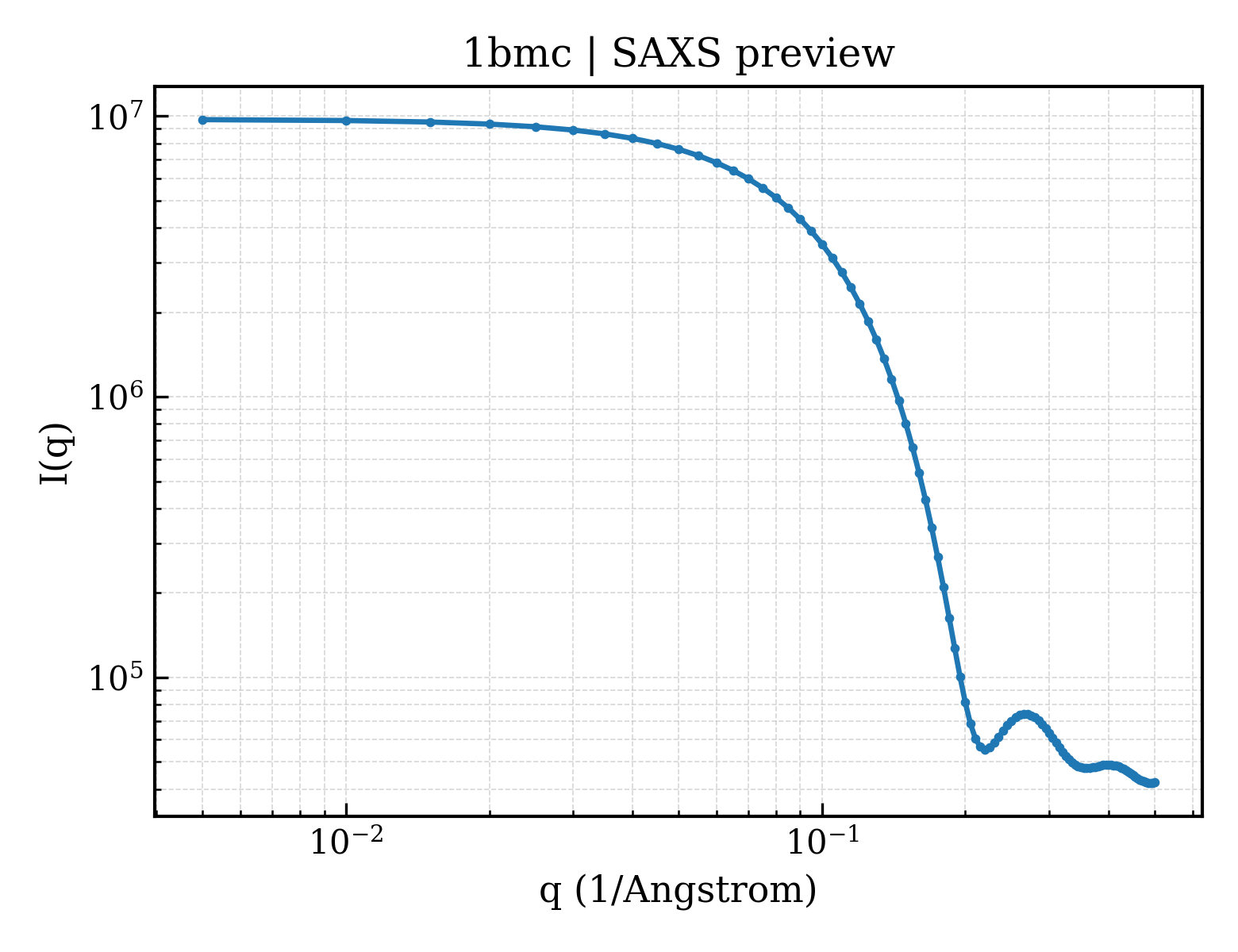

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bmc |
| deposition_date | 1995-06-16 |
| title | STRUCTURE OF A ZINC METALLO-BETA-LACTAMASE FROM BACILLUS CEREUS |
| keywords | HYDROLASE (ACTING IN CYCLIC AMIDES), ANTIBIOTIC RESISTANCE; HYDROLASE (ACTING IN CYCLIC AMIDES) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.18 Å |
| rg_electron | 16.06 Å |
| i0 | 9730610.00 |
| molecular_weight | 23565.0 kDa |
| excluded_volume | 29746 ų |
| envelope_volume | 32450 ų |
| shell_volume | 16649 ų |
| envelope_diameter | 54.3 Å |
| shell_rg | 22.50 Å |
| envelope_rg | 16.29 Å |
| shape_rg | 16.04 Å |
| total_rg | 17.19 Å |
| total_atoms | 1657 |
| n_residues | 213 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.1 Å |
| rg_real | 17.05 Å |
| rg_real_error | 0.31 Å |
| i0_real | 9.7310e+06 |
| i0_real_error | 1.1180e+05 |
| rg_reciprocal | 17.07 Å |
| i0_reciprocal | 9731000.0000 |
| total_estimate | 0.8105 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 22.1 Å |
| skewness | 0.095 |
| kurtosis | -0.422 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2222000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.851; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
