BARNASE A43C/S80C DISULFIDE MUTANT

Method: X-RAY DIFFRACTION D_max: 80.4 Å Quality: EXCELLENT

SAXS Profile

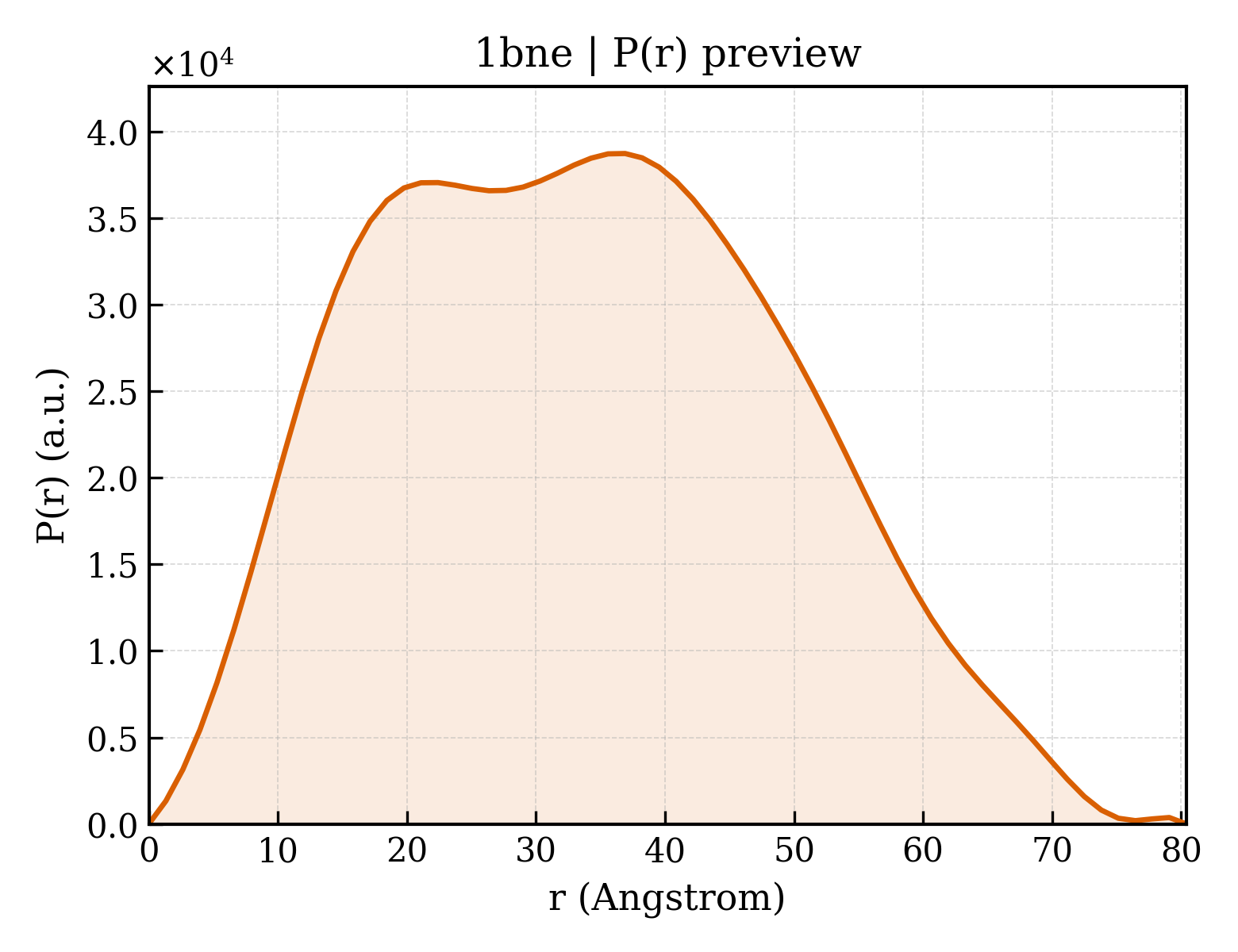

P(r) Distribution

▼

1. Structure Basics

entry_id	1bne
deposition_date	1995-03-31
title	BARNASE A43C/S80C DISULFIDE MUTANT
keywords	ENDONUCLEASE; ENDONUCLEASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.18 Å
rg_electron	25.55 Å
i0	22084800.00
molecular_weight	35692.0 kDa
excluded_volume	44346 Å³
envelope_volume	57209 Å³
shell_volume	19562 Å³
envelope_diameter	83.5 Å
shell_rg	31.06 Å
envelope_rg	25.09 Å
shape_rg	25.52 Å
total_rg	26.27 Å
total_atoms	2527
n_residues	324
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.4 Å
rg_real	26.20 Å
rg_real_error	0.57 Å
i0_real	2.2080e+07
i0_real_error	3.2190e+05
rg_reciprocal	26.20 Å
i0_reciprocal	22080000.0000
total_estimate	0.9063
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	3
r_peak_primary	36.9 Å
skewness	0.204
kurtosis	-0.698
angular_range	— – 0.3050 Å⁻¹
current_alpha	0.0000
highest_alpha	3609000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.926; Smooth: 0.946

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	59.600 Å
length_b	59.600 Å
length_c	81.790 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	9

space_group	P 32
int_tables_number	145
crystal_system	—

resolution	2.100 Å
resolution_low	6.000 Å
r_factor	0.1690
r_work	—
r_free	—

description	BARNASE
formula_weight	12446.9 kDa
ec_number	3.1.27.-
src_method	man
entity_count	3

type	polypeptide(L)
strand_id	A,B,C
atom_count	2770

BARNASE A43C/S80C DISULFIDE MUTANT

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Bacillus amyloliquefaciens
ncbi_taxonomy_id	1390
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	230

fit	/app/data/saxs_computation/bn/1bne/1bne.fit
pddf	/app/data/pr_computation/bn/1bne/1bne.pr.out
profile	/app/data/saxs_computation/bn/1bne/1bne.dat
