1bo9
NMR SOLUTION STRUCTURE OF DOMAIN 1 OF HUMAN ANNEXIN I

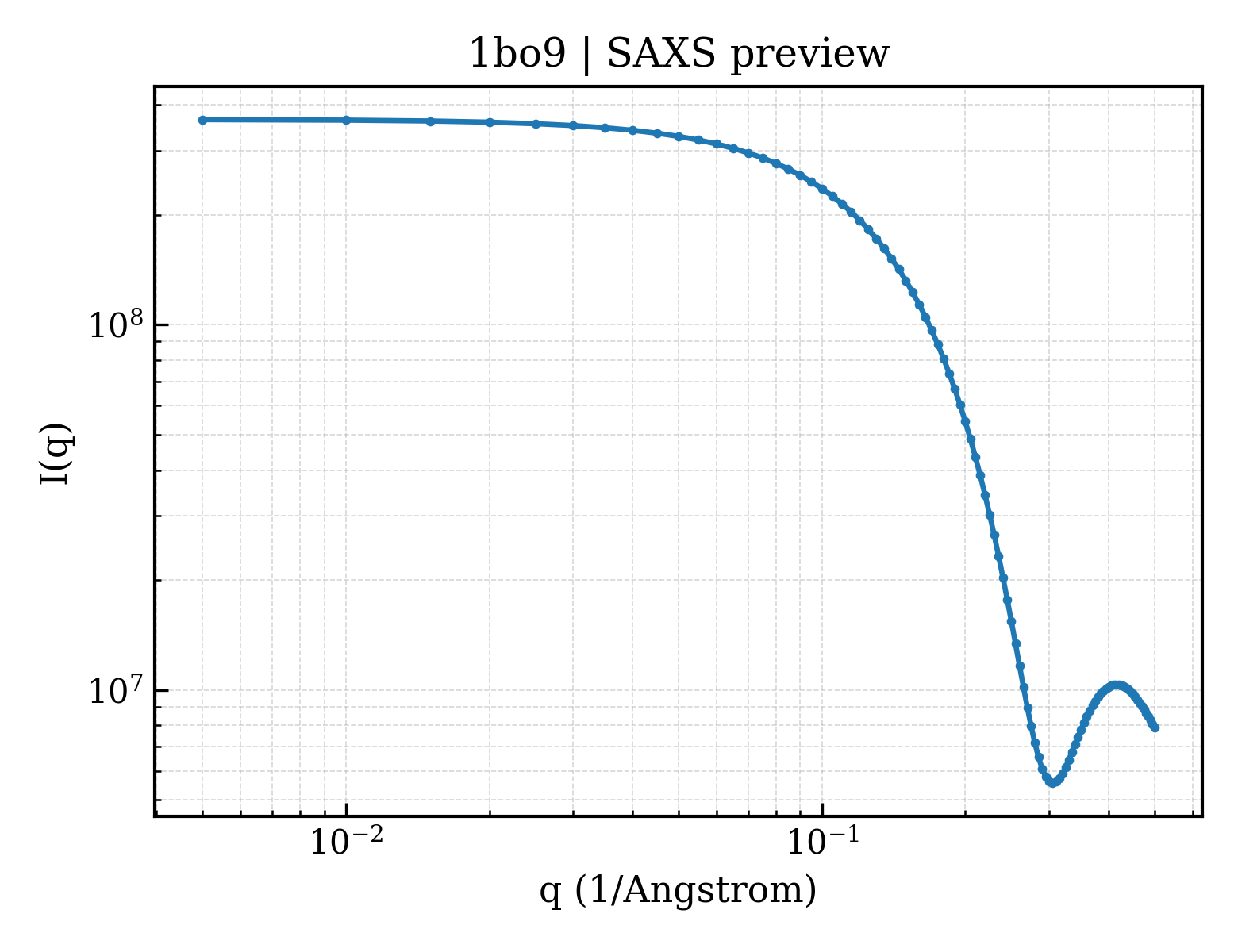

SAXS Profile

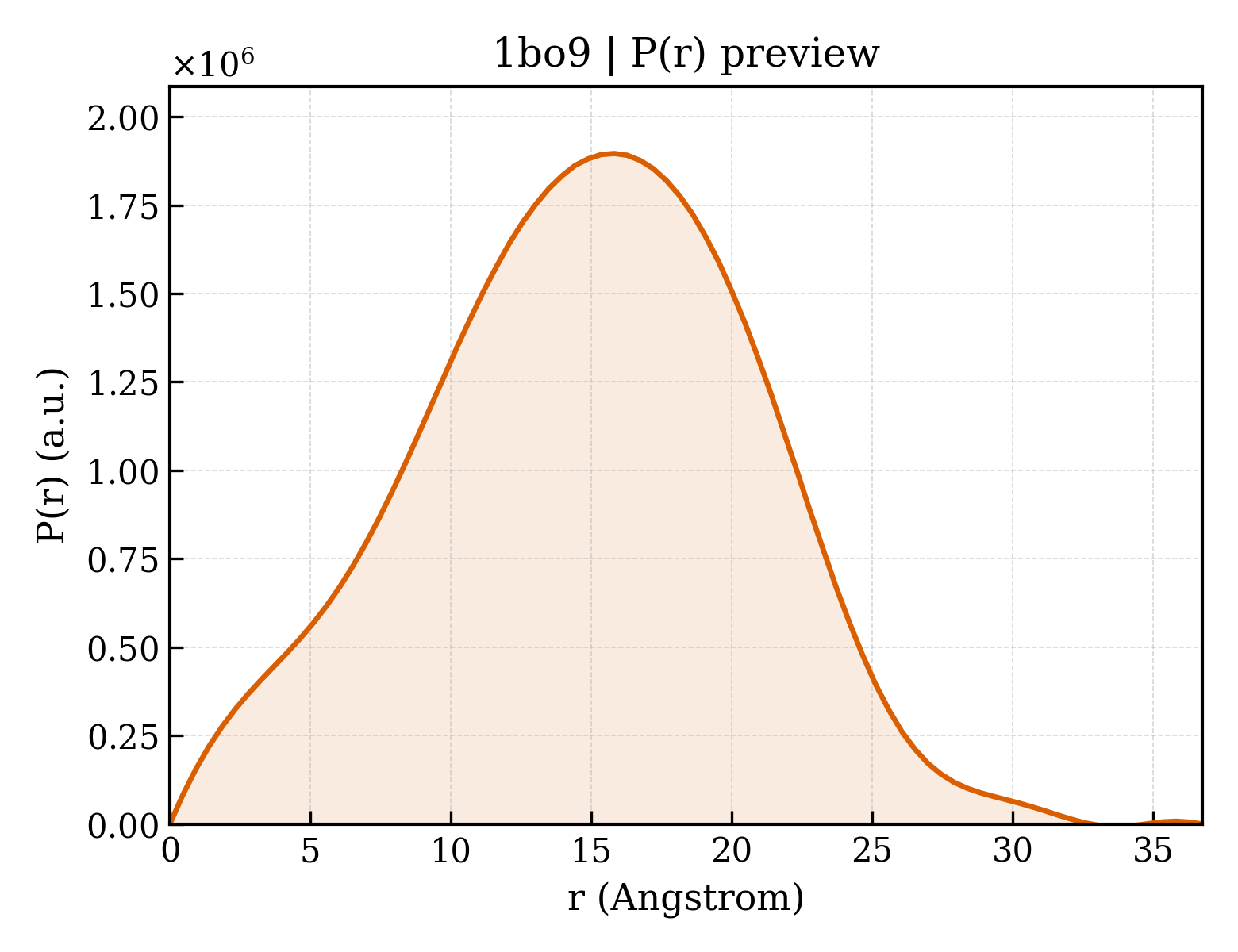

P(r) Distribution
1. Structure Basics
| entry_id | 1bo9 |
| deposition_date | 1998-08-10 |
| title | NMR SOLUTION STRUCTURE OF DOMAIN 1 OF HUMAN ANNEXIN I |
| keywords | DOMAIN 1, METAL TRANSPORT; METAL TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.39 Å |
| rg_electron | 11.14 Å |
| i0 | 365008000.00 |
| molecular_weight | 168260.0 kDa |
| excluded_volume | 214090 ų |
| envelope_volume | 16248 ų |
| shell_volume | 10967 ų |
| envelope_diameter | 39.6 Å |
| shell_rg | 18.42 Å |
| envelope_rg | 12.80 Å |
| shape_rg | 11.11 Å |
| total_rg | 11.40 Å |
| total_atoms | 24402 |
| n_residues | 1533 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.8 Å |
| rg_real | 11.29 Å |
| rg_real_error | 0.29 Å |
| i0_real | 3.6500e+08 |
| i0_real_error | 3.8590e+06 |
| rg_reciprocal | 11.30 Å |
| i0_reciprocal | 365000000.0000 |
| total_estimate | 0.8652 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.8 Å |
| skewness | -0.084 |
| kurtosis | -0.367 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 74440.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.761; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.972 |
