ANTI-P24 (HIV-1) FAB FRAGMENT CB41 COMPLEXED WITH AN EPITOPE-HOMOLOGOUS PEPTIDE

entry_id	1bog
deposition_date	1998-08-04
title	ANTI-P24 (HIV-1) FAB FRAGMENT CB41 COMPLEXED WITH AN EPITOPE-HOMOLOGOUS PEPTIDE
keywords	POLYSPECIFICITY, CROSS REACTIVITY, FAB-FRAGMENT, HIV-1, COMPLEX (ANTIBODY-PEPTIDE), COMPLEX (ANTIBODY-PEPTIDE) complex; COMPLEX (ANTIBODY/PEPTIDE)
method	X-RAY DIFFRACTION

rg_guinier	25.92 Å
rg_electron	24.86 Å
i0	38509500.00
molecular_weight	47733.0 kDa
excluded_volume	59598 ų
envelope_volume	73652 ų
shell_volume	24992 ų
envelope_diameter	81.0 Å
shell_rg	31.89 Å
envelope_rg	24.39 Å
shape_rg	24.84 Å
total_rg	25.72 Å
total_atoms	3356
n_residues	438
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	78.4 Å
rg_real	25.90 Å
rg_real_error	0.50 Å
i0_real	3.8510e+07
i0_real_error	5.5070e+05
rg_reciprocal	25.91 Å
i0_reciprocal	38510000.0000
total_estimate	0.9142
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	28.3 Å
skewness	0.248
kurtosis	-0.612
angular_range	— – 0.3050 Å−1
current_alpha	0.0000
highest_alpha	7232000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.983; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.942

Unit Cell

length_a	104.430 Å
length_b	104.430 Å
length_c	295.050 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

Symmetry

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

Refinement

resolution	2.600 Å
resolution_low	91.000 Å
r_factor	—
r_work	0.2460
r_free	0.3070

Diffraction

temperature

288.0 K

Files (7)

• pr_distribution /app/data/pr_computation/bo/1bog/pr_distribution.json
• pr_output /app/data/pr_computation/bo/1bog/1bog.pr.out

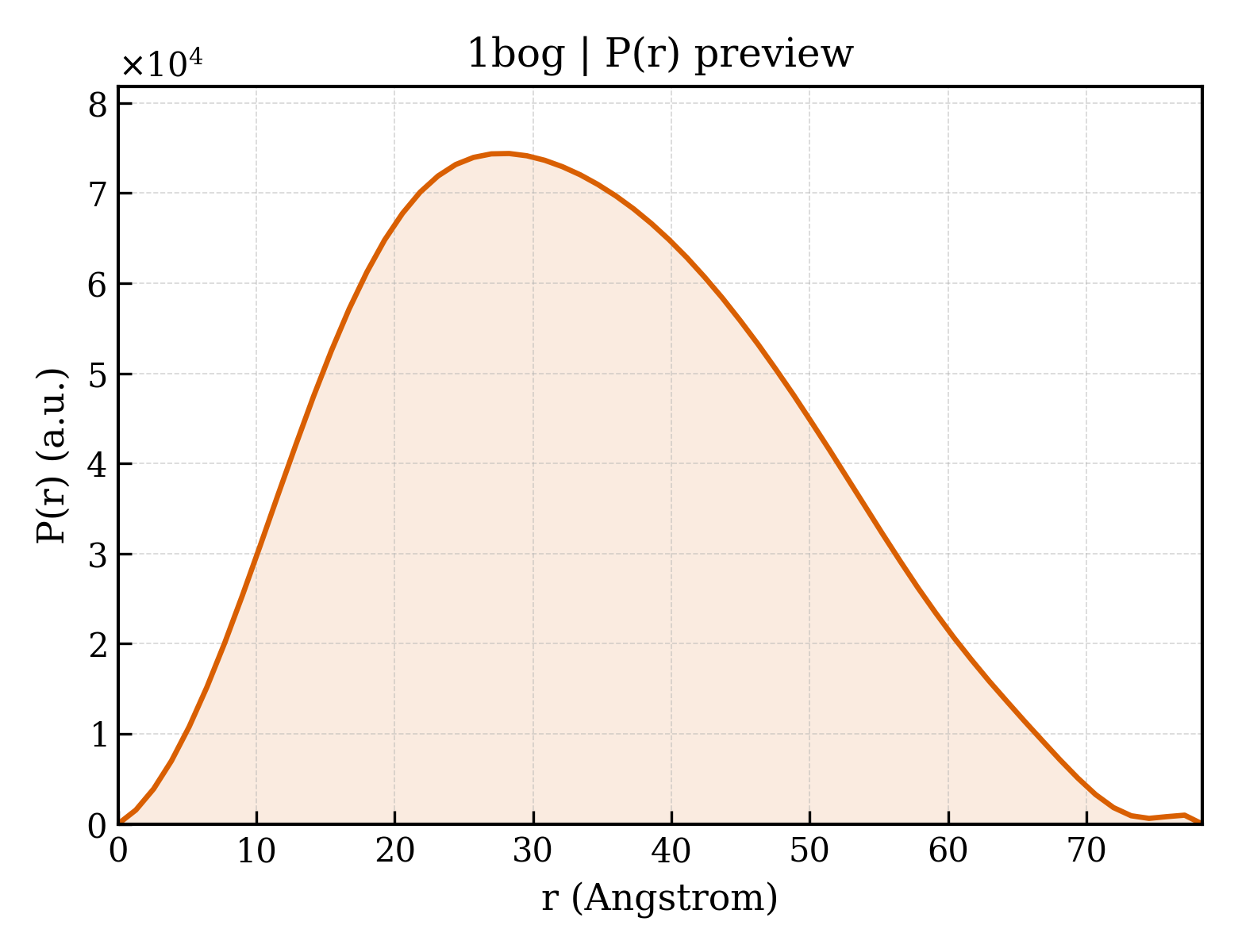

• pr_plot /app/data/visualization/pr_computation/bo/1bog/1bog_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/bo/1bog/1bog.dat
• saxs_fit /app/data/saxs_computation/bo/1bog/1bog.fit
• saxs_log /app/data/saxs_computation/bo/1bog/1bog.log
• saxs_plot /app/data/visualization/saxs_computation/bo/1bog/1bog_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/bo/1bog/1bog.fit
pddf	/app/data/pr_computation/bo/1bog/1bog.pr.out
profile	/app/data/saxs_computation/bo/1bog/1bog.dat
