1bol
THE CRYSTAL STRUCTURE OF RIBONUCLEASE RH FROM RHIZOPUS NIVEUS AT 2.0 A RESOLUTION
SAXS Profile

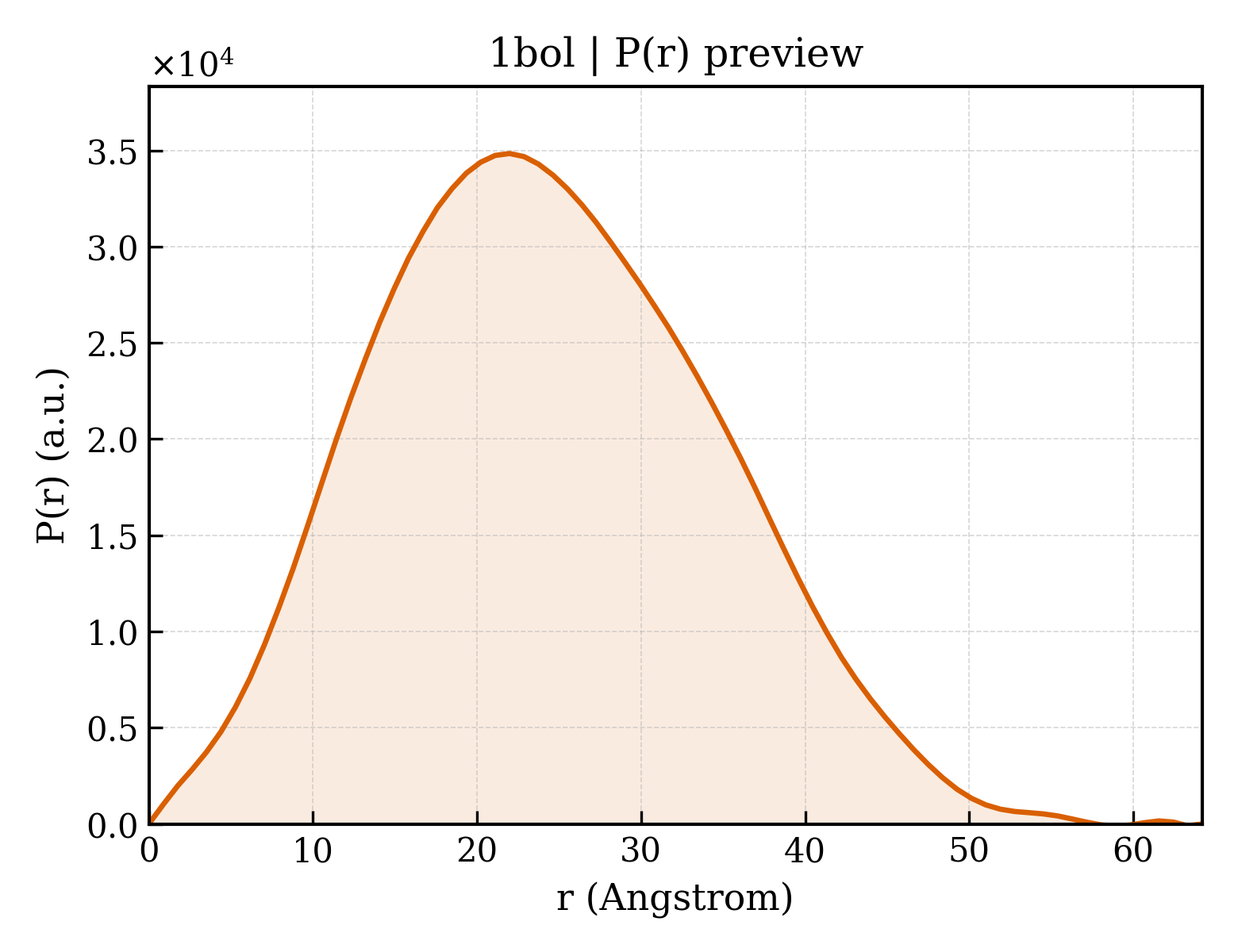

P(r) Distribution
1. Structure Basics
| entry_id | 1bol |
| deposition_date | 1998-08-05 |
| title | THE CRYSTAL STRUCTURE OF RIBONUCLEASE RH FROM RHIZOPUS NIVEUS AT 2.0 A RESOLUTION |
| keywords | RIBONUCLEASES, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.63 Å |
| rg_electron | 17.35 Å |
| i0 | 11696800.00 |
| molecular_weight | 24069.0 kDa |
| excluded_volume | 29350 ų |
| envelope_volume | 33811 ų |
| shell_volume | 16528 ų |
| envelope_diameter | 61.1 Å |
| shell_rg | 23.21 Å |
| envelope_rg | 17.58 Å |
| shape_rg | 17.31 Å |
| total_rg | 18.31 Å |
| total_atoms | 1688 |
| n_residues | 222 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.2 Å |
| rg_real | 18.56 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.1700e+07 |
| i0_real_error | 1.4800e+05 |
| rg_reciprocal | 18.58 Å |
| i0_reciprocal | 11700000.0000 |
| total_estimate | 0.7955 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.0 Å |
| skewness | 0.227 |
| kurtosis | -0.411 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2229000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.784; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
