1bqf
GROWTH-BLOCKING PEPTIDE (GBP) FROM PSEUDALETIA SEPARATA

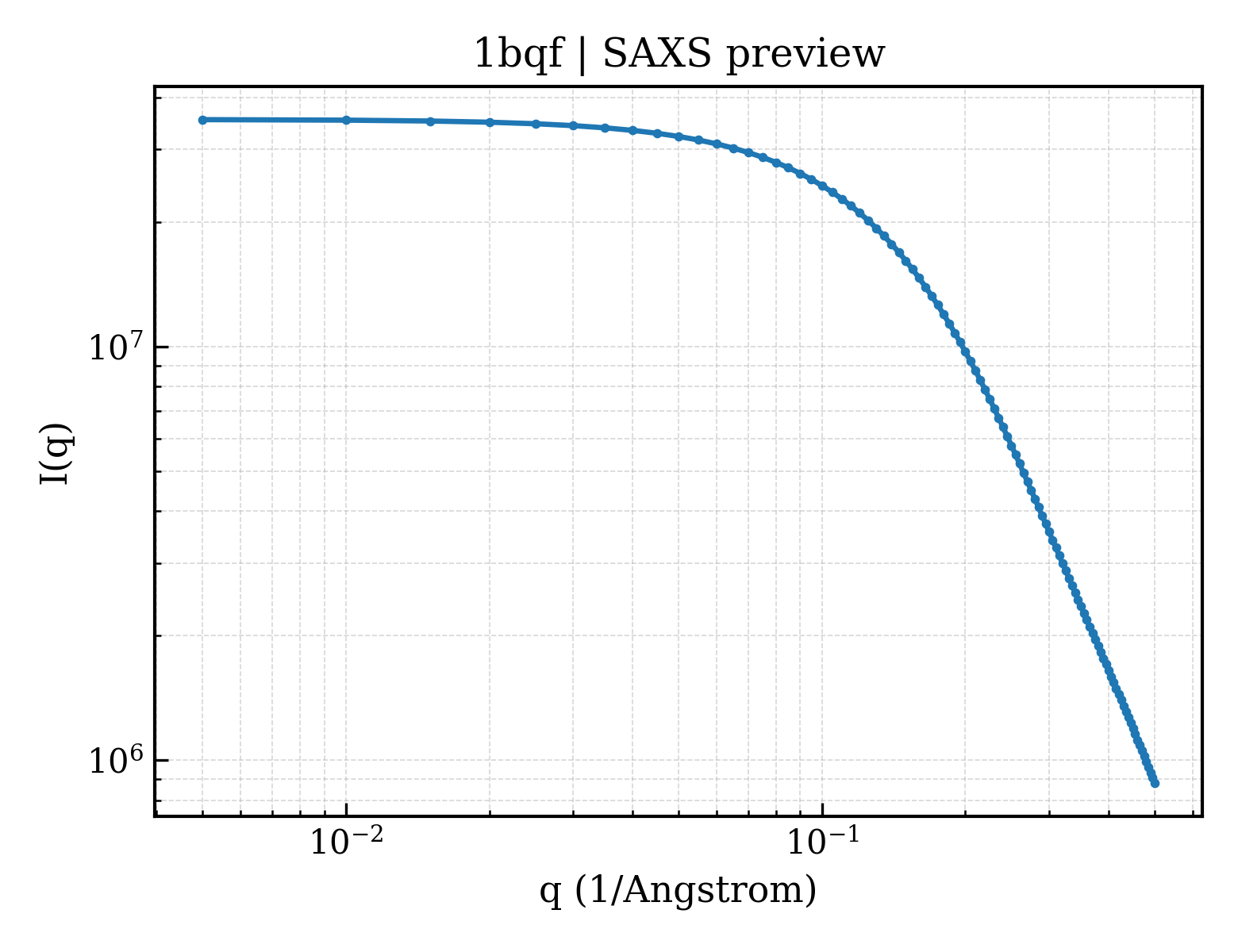

SAXS Profile

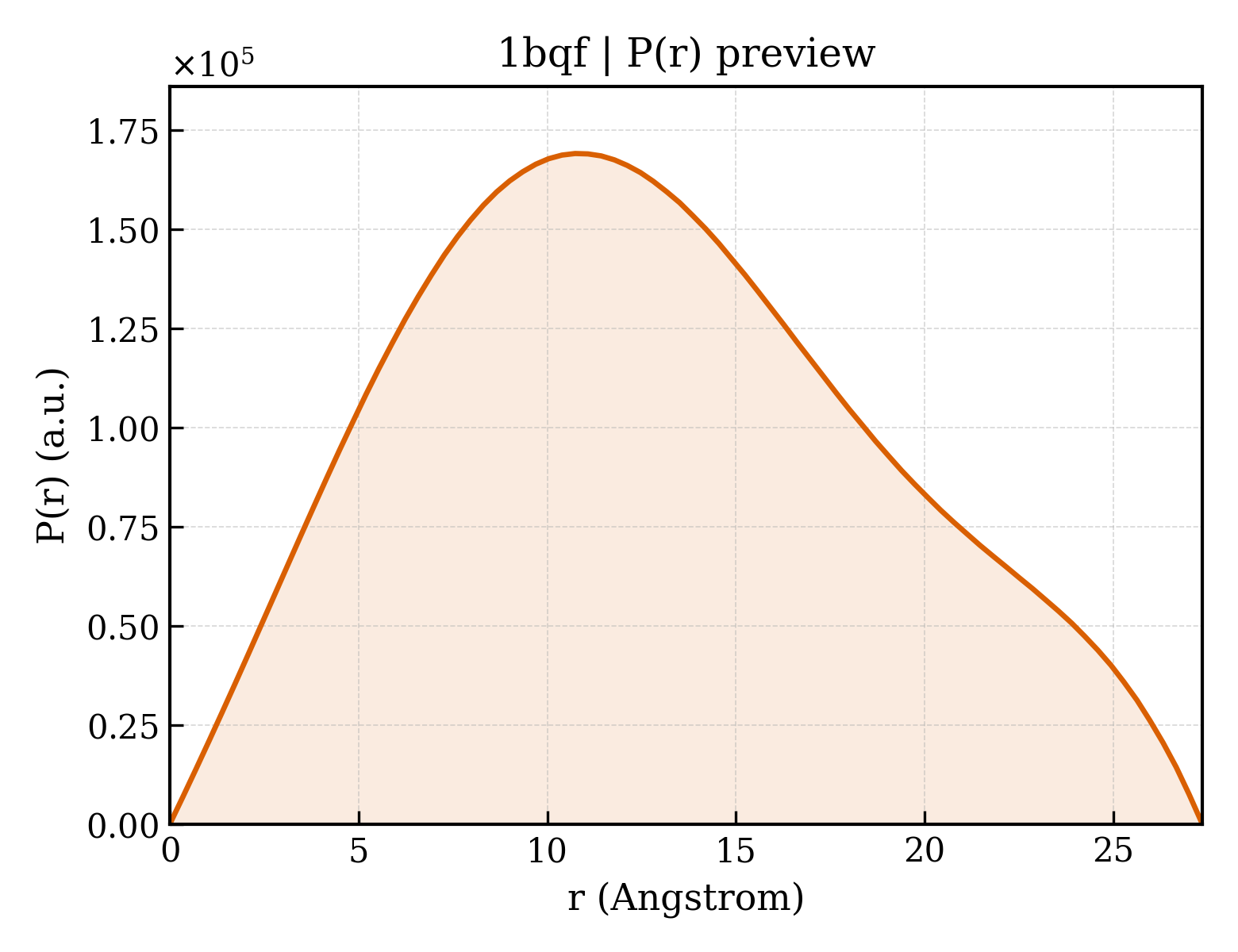

P(r) Distribution
1. Structure Basics
| entry_id | 1bqf |
| deposition_date | 1998-08-09 |
| title | GROWTH-BLOCKING PEPTIDE (GBP) FROM PSEUDALETIA SEPARATA |
| keywords | GROWTH FACTOR, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.52 Å |
| rg_electron | 10.47 Å |
| i0 | 35393700.00 |
| molecular_weight | 44578.0 kDa |
| excluded_volume | 54032 ų |
| envelope_volume | 15438 ų |
| shell_volume | 9846 ų |
| envelope_diameter | 47.8 Å |
| shell_rg | 19.12 Å |
| envelope_rg | 14.58 Å |
| shape_rg | 10.55 Å |
| total_rg | 10.83 Å |
| total_atoms | 5936 |
| n_residues | 400 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 27.4 Å |
| rg_real | 9.89 Å |
| rg_real_error | 0.03 Å |
| i0_real | 3.3880e+07 |
| i0_real_error | 2.1250e+05 |
| rg_reciprocal | 10.69 Å |
| i0_reciprocal | 35390000.0000 |
| total_estimate | 0.6818 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 10.7 Å |
| skewness | 0.253 |
| kurtosis | -0.674 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 4.1380 |
| highest_alpha | 10620.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.998; Stabil: 0.986; Sysdev: 0.000; Positv: 1.000; Valcen: 0.916; Smooth: 0.000 |
