1bqs
THE CRYSTAL STRUCTURE OF MUCOSAL ADDRESSIN CELL ADHESION MOLECULE-1 (MADCAM-1)
SAXS Profile

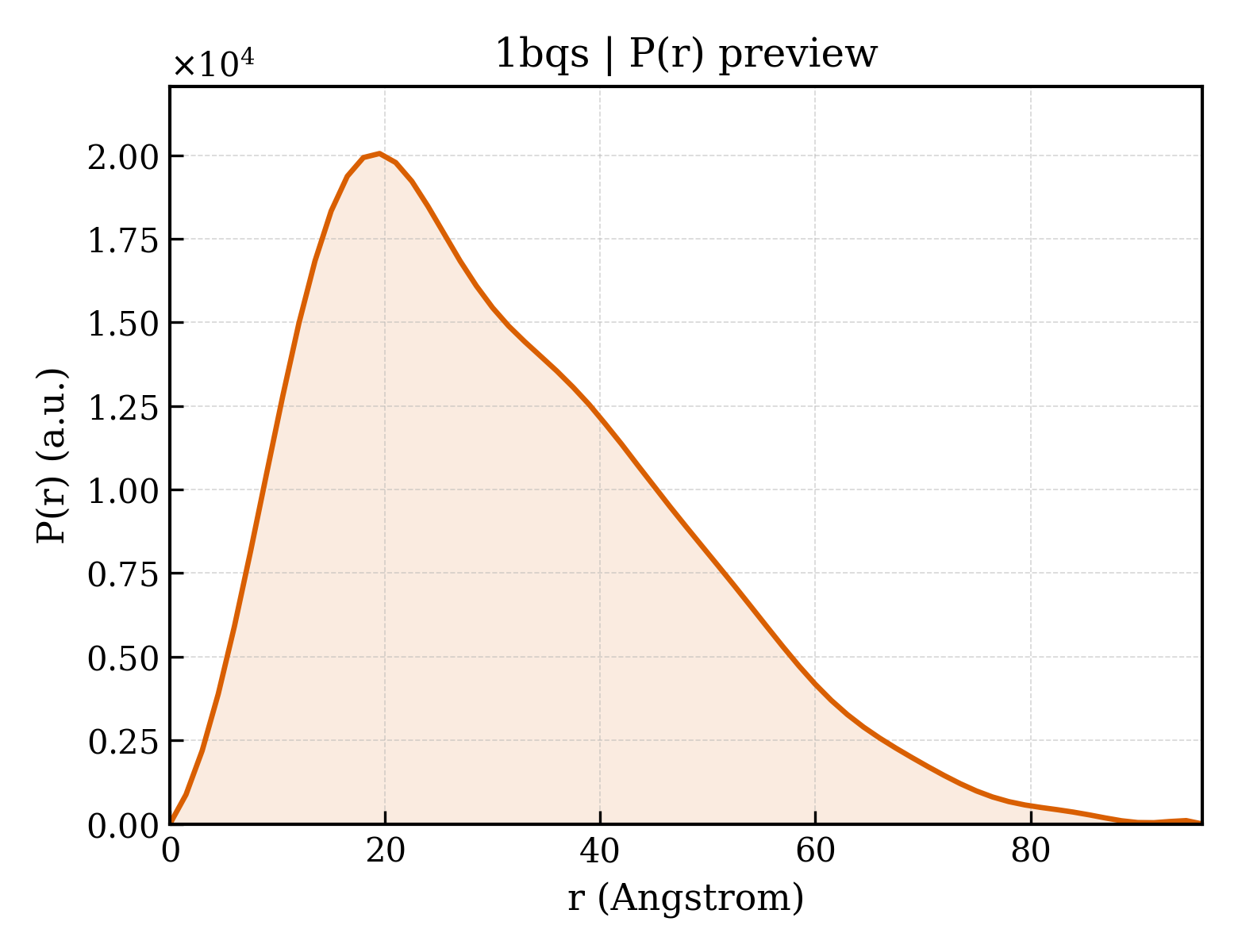

P(r) Distribution
1. Structure Basics
| entry_id | 1bqs |
| deposition_date | 1998-08-18 |
| title | THE CRYSTAL STRUCTURE OF MUCOSAL ADDRESSIN CELL ADHESION MOLECULE-1 (MADCAM-1) |
| keywords | ;CELL ADHESION PROTEIN, MADCAM-1, IMMUNOGLOBULIN FOLD, I-SET FOLD, CELL ADHESION GLYCOPROTEIN, INTEGRIN RECOGINITION, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.20 Å |
| rg_electron | 23.86 Å |
| i0 | 9386190.00 |
| molecular_weight | 22296.0 kDa |
| excluded_volume | 27757 ų |
| envelope_volume | 36660 ų |
| shell_volume | 14768 ų |
| envelope_diameter | 99.0 Å |
| shell_rg | 27.31 Å |
| envelope_rg | 24.63 Å |
| shape_rg | 23.84 Å |
| total_rg | 24.44 Å |
| total_atoms | 1566 |
| n_residues | 209 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 96.0 Å |
| rg_real | 24.65 Å |
| rg_real_error | 1.18 Å |
| i0_real | 9.3860e+06 |
| i0_real_error | 1.4460e+05 |
| rg_reciprocal | 24.55 Å |
| i0_reciprocal | 9386000.0000 |
| total_estimate | 0.7018 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.5 Å |
| skewness | 0.665 |
| kurtosis | -0.032 |
| angular_range | — – 0.3300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2767000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.351; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.093; Smooth: 0.972 |
