1brk
BARNASE MUTANT WITH ILE 96 REPLACED BY ALA
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1brk |
| deposition_date | 1995-03-09 |
| title | BARNASE MUTANT WITH ILE 96 REPLACED BY ALA |
| keywords | ALPHA/BETA PROTEIN, ENDONUCLEASE; ENDONUCLEASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.90 Å |
| rg_electron | 25.28 Å |
| i0 | 22760200.00 |
| molecular_weight | 36220.0 kDa |
| excluded_volume | 44999 ų |
| envelope_volume | 56949 ų |
| shell_volume | 19765 ų |
| envelope_diameter | 82.1 Å |
| shell_rg | 30.75 Å |
| envelope_rg | 24.83 Å |
| shape_rg | 25.25 Å |
| total_rg | 26.02 Å |
| total_atoms | 2552 |
| n_residues | 322 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

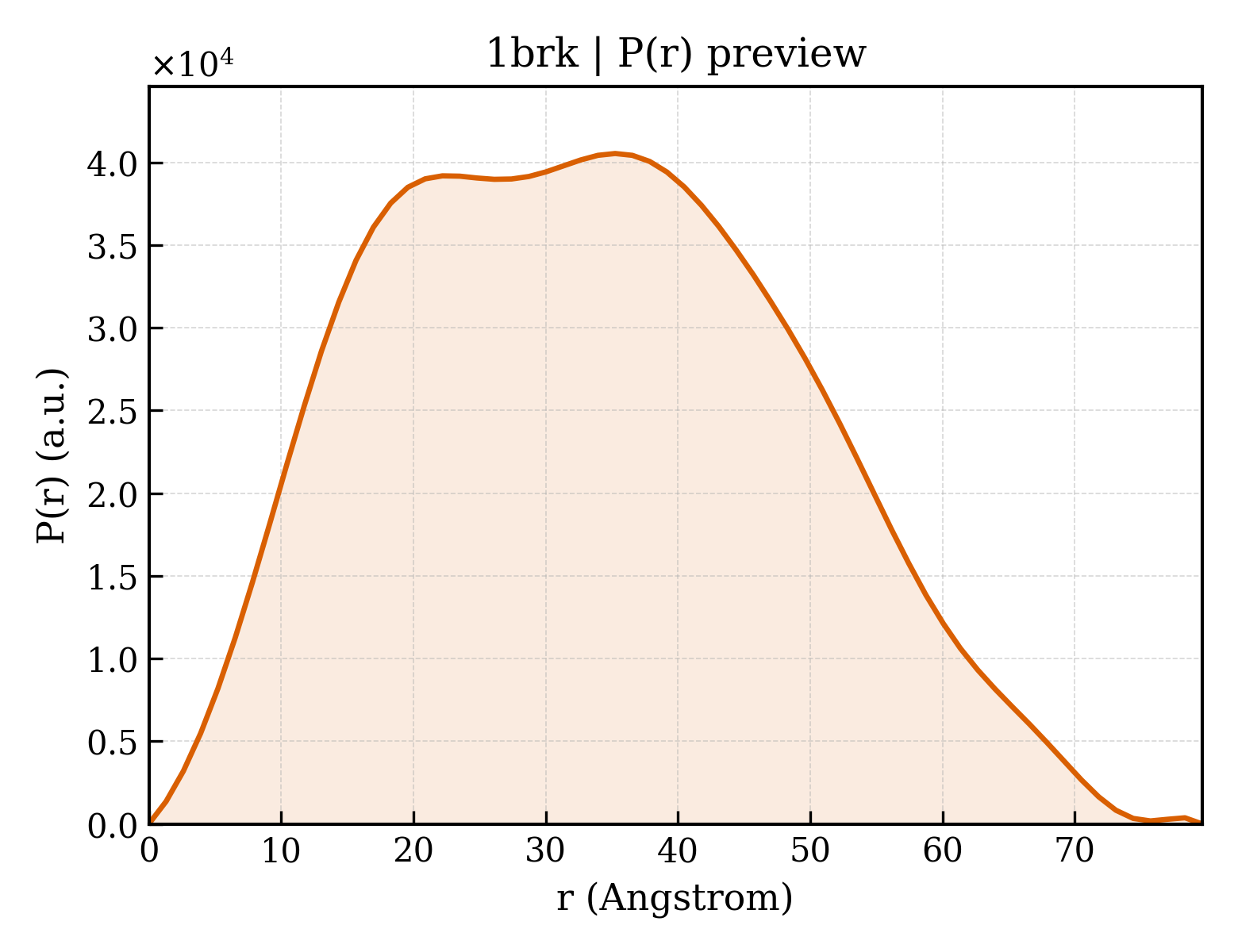

3. P(r) Analysis (GNOM)
| dmax | 79.6 Å |
| rg_real | 25.91 Å |
| rg_real_error | 0.58 Å |
| i0_real | 2.2760e+07 |
| i0_real_error | 3.5660e+05 |
| rg_reciprocal | 25.91 Å |
| i0_reciprocal | 22760000.0000 |
| total_estimate | 0.9080 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 35.2 Å |
| skewness | 0.210 |
| kurtosis | -0.680 |
| angular_range | — – 0.3050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3599000.0000 |
| n_real_points | 62 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.943 |
