1bse
CRYSTAL STRUCTURAL ANALYSIS OF MUTATIONS IN THE HYDROPHOBIC CORES OF BARNASE
SAXS Profile

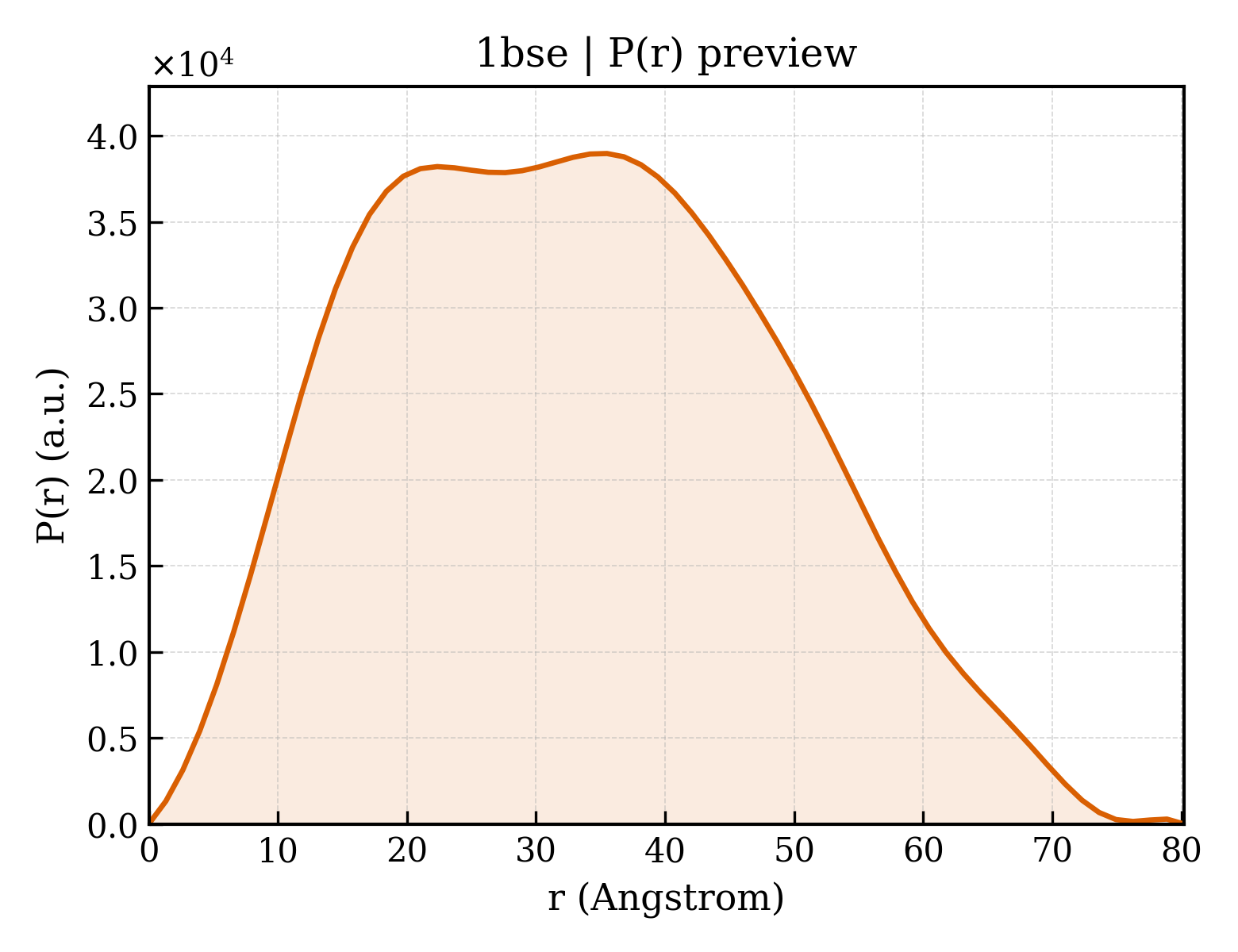

P(r) Distribution
1. Structure Basics
| entry_id | 1bse |
| deposition_date | 1993-07-19 |
| title | CRYSTAL STRUCTURAL ANALYSIS OF MUTATIONS IN THE HYDROPHOBIC CORES OF BARNASE |
| keywords | ENDONUCLEASE; ENDONUCLEASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.86 Å |
| rg_electron | 25.19 Å |
| i0 | 22029000.00 |
| molecular_weight | 35890.0 kDa |
| excluded_volume | 44745 ų |
| envelope_volume | 56291 ų |
| shell_volume | 19550 ų |
| envelope_diameter | 81.8 Å |
| shell_rg | 30.76 Å |
| envelope_rg | 24.78 Å |
| shape_rg | 25.17 Å |
| total_rg | 25.91 Å |
| total_atoms | 2547 |
| n_residues | 324 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.2 Å |
| rg_real | 25.87 Å |
| rg_real_error | 0.55 Å |
| i0_real | 2.2030e+07 |
| i0_real_error | 3.1990e+05 |
| rg_reciprocal | 25.87 Å |
| i0_reciprocal | 22030000.0000 |
| total_estimate | 0.9068 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 35.5 Å |
| skewness | 0.224 |
| kurtosis | -0.676 |
| angular_range | — – 0.3050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3592000.0000 |
| n_real_points | 62 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.957 |
