1bud
ACUTOLYSIN A FROM SNAKE VENOM OF AGKISTRODON ACUTUS AT PH 5.0
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bud |
| deposition_date | 1998-09-03 |
| title | ACUTOLYSIN A FROM SNAKE VENOM OF AGKISTRODON ACUTUS AT PH 5.0 |
| keywords | METALLOPROTEINASE, SNAKE VENOM, MMP, TOXIN; TOXIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.11 Å |
| rg_electron | 15.87 Å |
| i0 | 9345310.00 |
| molecular_weight | 21940.0 kDa |
| excluded_volume | 27159 ų |
| envelope_volume | 30160 ų |
| shell_volume | 15796 ų |
| envelope_diameter | 54.4 Å |
| shell_rg | 22.04 Å |
| envelope_rg | 16.16 Å |
| shape_rg | 15.88 Å |
| total_rg | 16.86 Å |
| total_atoms | 1530 |
| n_residues | 197 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

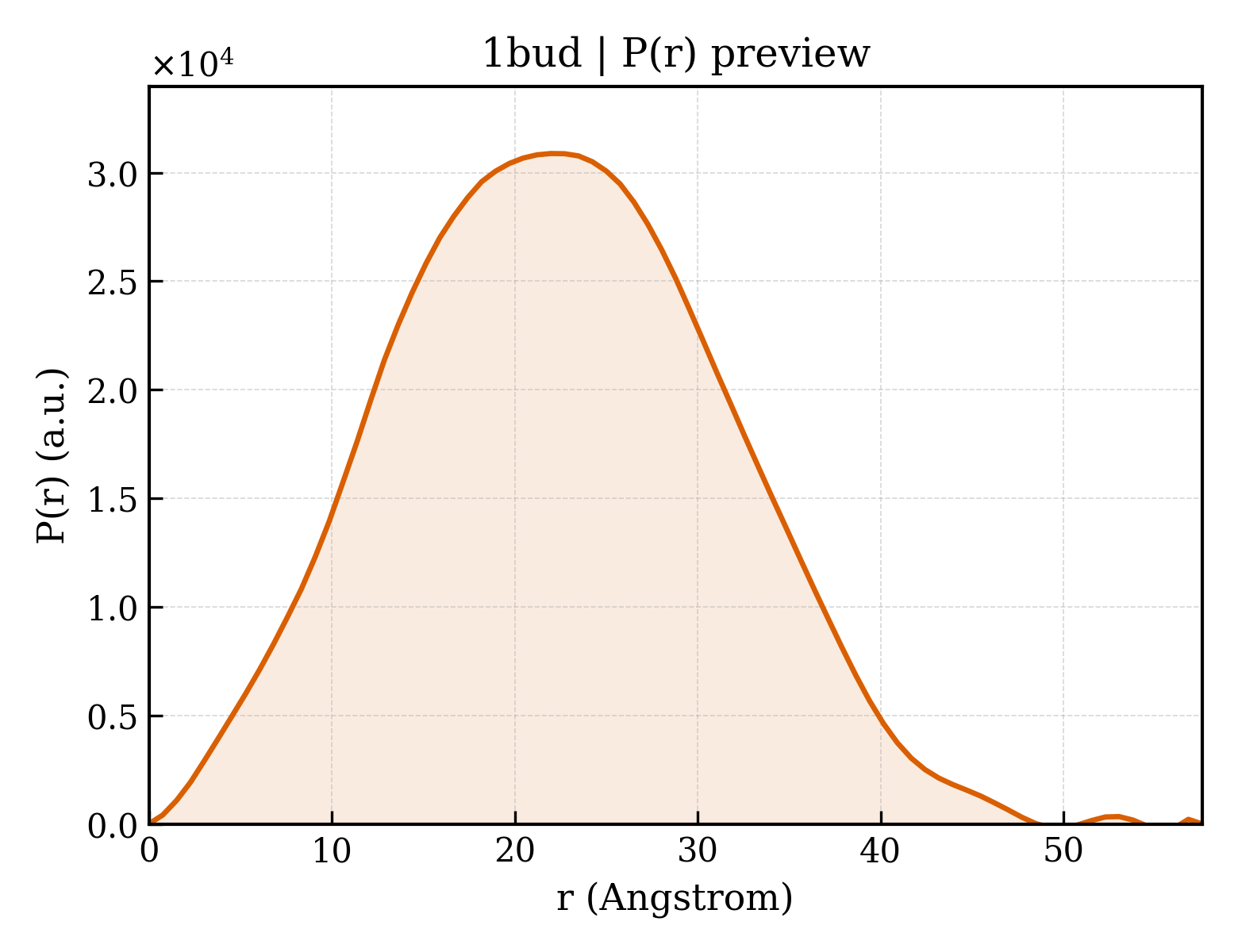

3. P(r) Analysis (GNOM)
| dmax | 57.6 Å |
| rg_real | 16.99 Å |
| rg_real_error | 0.41 Å |
| i0_real | 9.3450e+06 |
| i0_real_error | 1.0960e+05 |
| rg_reciprocal | 17.00 Å |
| i0_reciprocal | 9345000.0000 |
| total_estimate | 0.7917 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 22.0 Å |
| skewness | 0.117 |
| kurtosis | -0.437 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1761000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.767; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
