1bv2
LIPID TRANSFER PROTEIN FROM RICE SEEDS, NMR, 14 STRUCTURES

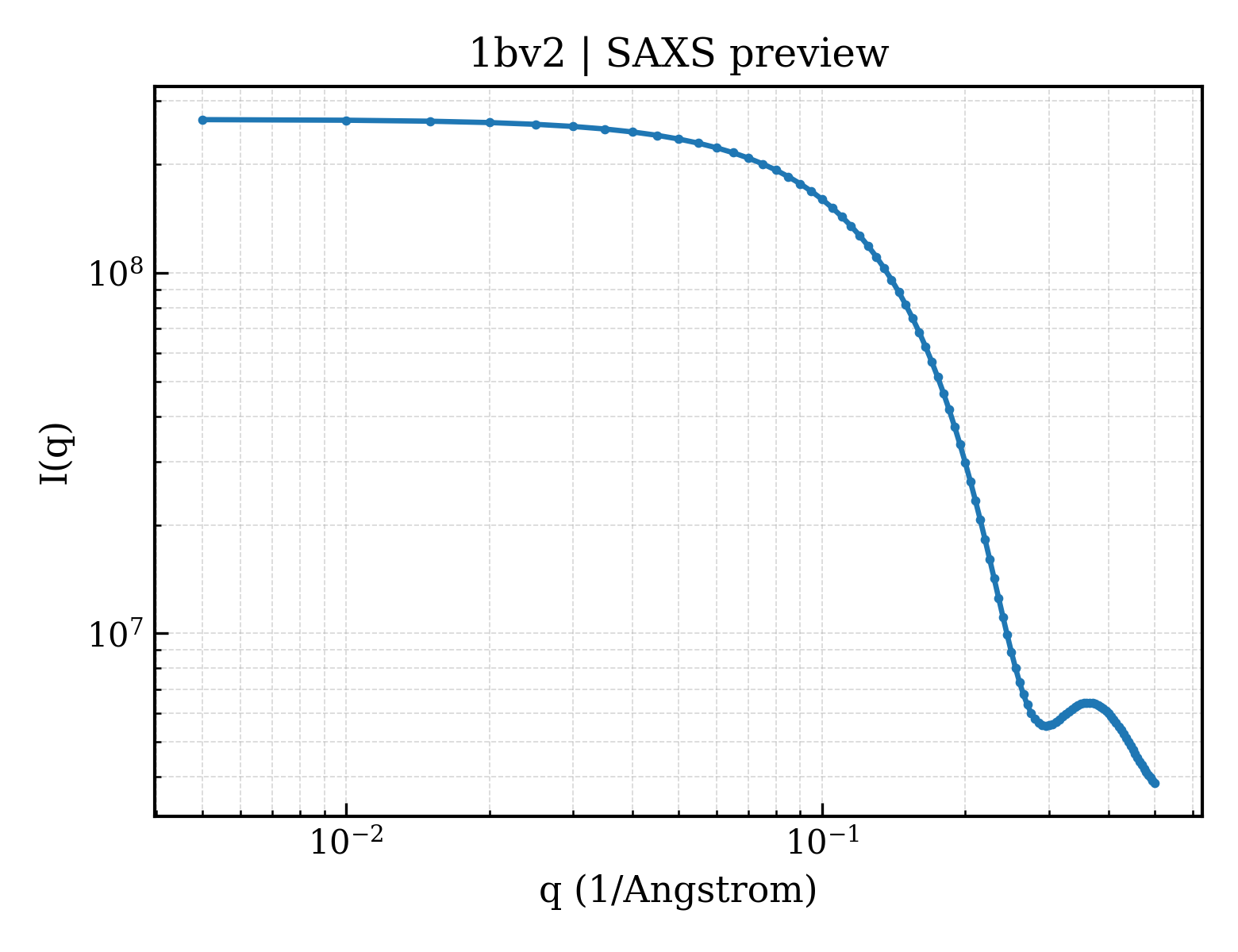

SAXS Profile

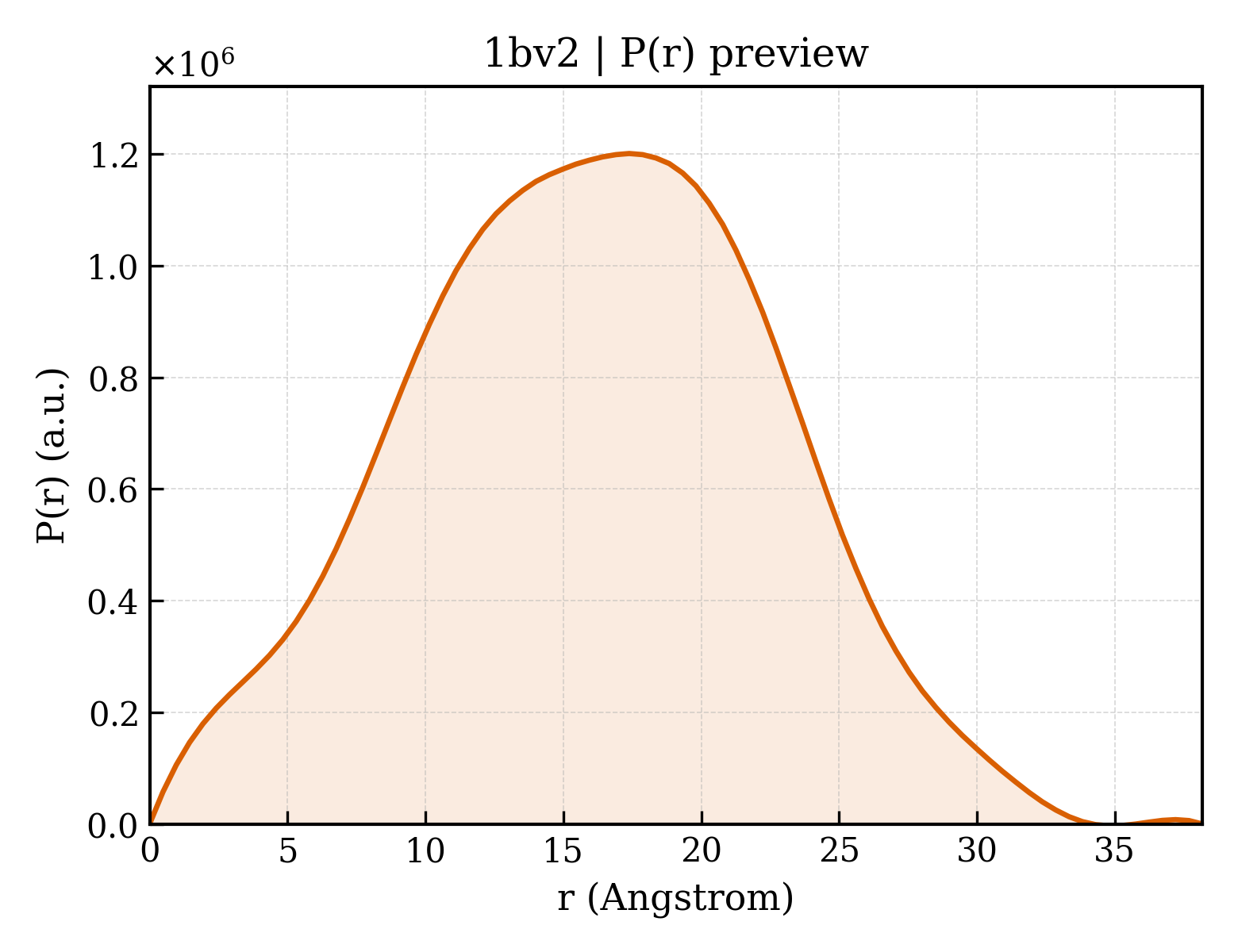

P(r) Distribution
1. Structure Basics
| entry_id | 1bv2 |
| deposition_date | 1998-09-21 |
| title | LIPID TRANSFER PROTEIN FROM RICE SEEDS, NMR, 14 STRUCTURES |
| keywords | LIPID-BINDING PROTEIN, LIPID TRANSFER PROTEIN, RICE, MOLECULAR MODELING, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.31 Å |
| rg_electron | 11.95 Å |
| i0 | 266737000.00 |
| molecular_weight | 124840.0 kDa |
| excluded_volume | 151850 ų |
| envelope_volume | 17065 ų |
| shell_volume | 11126 ų |
| envelope_diameter | 44.5 Å |
| shell_rg | 18.82 Å |
| envelope_rg | 13.49 Å |
| shape_rg | 11.94 Å |
| total_rg | 12.15 Å |
| total_atoms | 17318 |
| n_residues | 1274 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 38.2 Å |
| rg_real | 12.21 Å |
| rg_real_error | 0.22 Å |
| i0_real | 2.6670e+08 |
| i0_real_error | 2.8500e+06 |
| rg_reciprocal | 12.22 Å |
| i0_reciprocal | 266700000.0000 |
| total_estimate | 0.8928 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.4 Å |
| skewness | -0.015 |
| kurtosis | -0.453 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 84490.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.966 |
