1bv4
APO-MANNOSE-BINDING PROTEIN-C
SAXS Profile

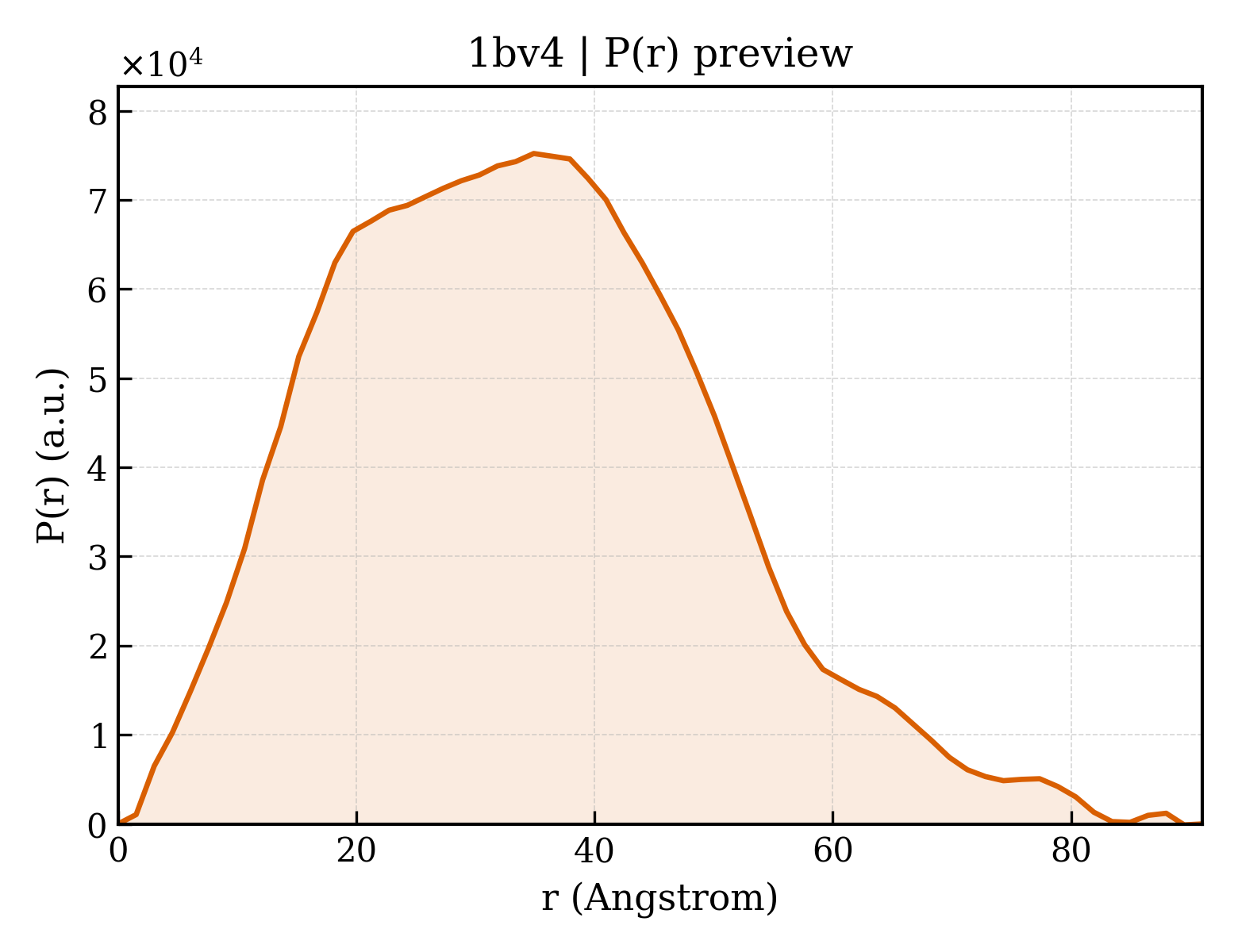

P(r) Distribution
1. Structure Basics
| entry_id | 1bv4 |
| deposition_date | 1998-09-22 |
| title | APO-MANNOSE-BINDING PROTEIN-C |
| keywords | C-TYPE LECTIN, CALCIUM-BINDING PROTEIN, COLLECTIN, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.45 Å |
| rg_electron | 25.73 Å |
| i0 | 39413800.00 |
| molecular_weight | 46102.0 kDa |
| excluded_volume | 56680 ų |
| envelope_volume | 71412 ų |
| shell_volume | 24346 ų |
| envelope_diameter | 94.9 Å |
| shell_rg | 31.28 Å |
| envelope_rg | 25.59 Å |
| shape_rg | 25.74 Å |
| total_rg | 26.28 Å |
| total_atoms | 3228 |
| n_residues | 412 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 91.0 Å |
| rg_real | 26.52 Å |
| rg_real_error | 1.07 Å |
| i0_real | 3.9410e+07 |
| i0_real_error | 6.3890e+05 |
| rg_reciprocal | 26.50 Å |
| i0_reciprocal | 39410000.0000 |
| total_estimate | 0.7761 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 34.9 Å |
| skewness | 0.418 |
| kurtosis | -0.116 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 12400000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.739; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.891; Smooth: 0.000 |
