1bvc
STRUCTURE OF A BILIVERDIN APOMYOGLOBIN COMPLEX (FORM D) AT 118 K
SAXS Profile

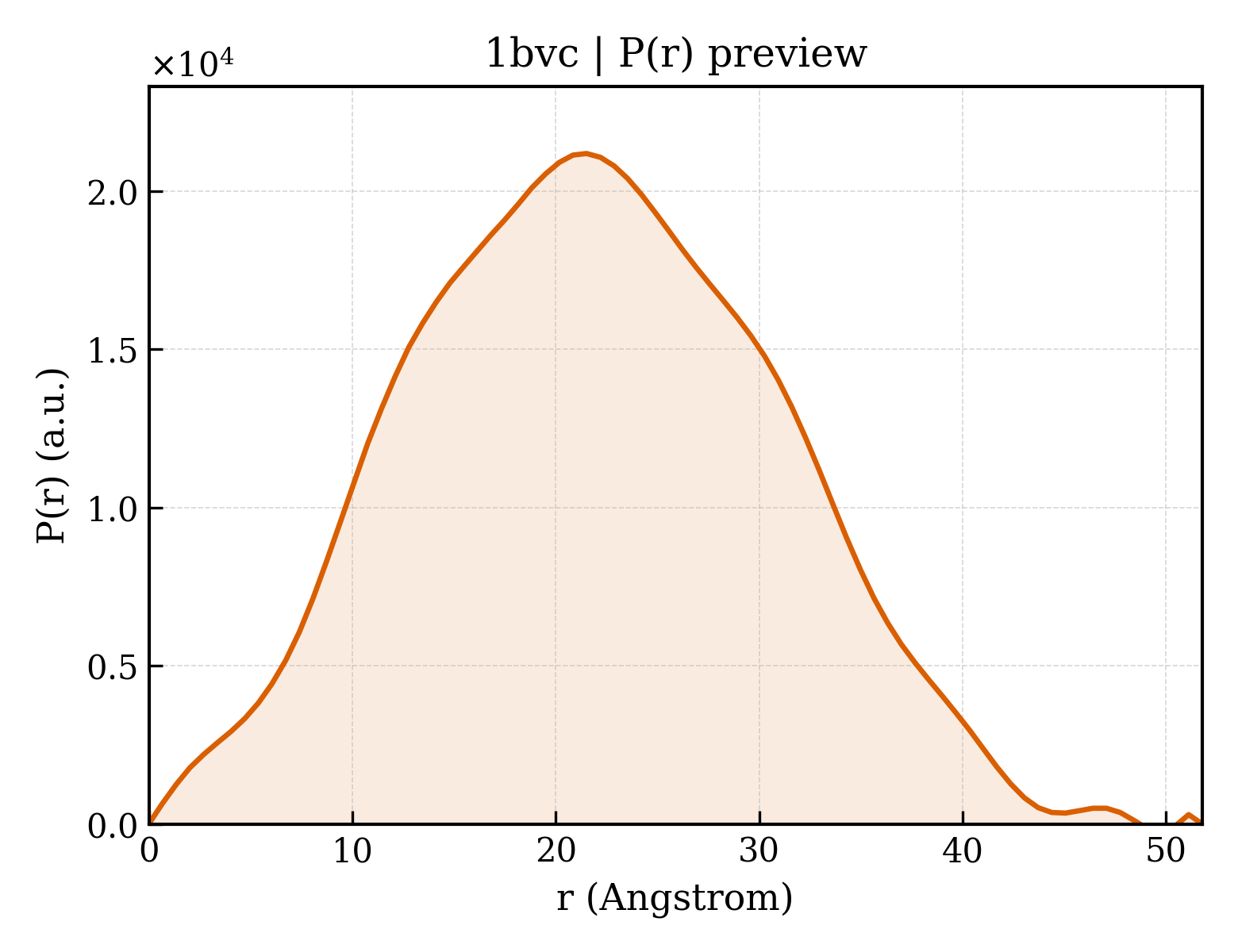

P(r) Distribution
1. Structure Basics
| entry_id | 1bvc |
| deposition_date | 1994-12-16 |
| title | STRUCTURE OF A BILIVERDIN APOMYOGLOBIN COMPLEX (FORM D) AT 118 K |
| keywords | OXYGEN STORAGE; OXYGEN STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.77 Å |
| rg_electron | 15.26 Å |
| i0 | 6190250.00 |
| molecular_weight | 18164.0 kDa |
| excluded_volume | 22784 ų |
| envelope_volume | 25467 ų |
| shell_volume | 14138 ų |
| envelope_diameter | 50.3 Å |
| shell_rg | 21.08 Å |
| envelope_rg | 15.46 Å |
| shape_rg | 15.20 Å |
| total_rg | 16.46 Å |
| total_atoms | 1280 |
| n_residues | 153 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.8 Å |
| rg_real | 16.66 Å |
| rg_real_error | 0.34 Å |
| i0_real | 6.1900e+06 |
| i0_real_error | 6.9130e+04 |
| rg_reciprocal | 16.68 Å |
| i0_reciprocal | 6190000.0000 |
| total_estimate | 0.8196 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 21.5 Å |
| skewness | 0.094 |
| kurtosis | -0.476 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 954500.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.890; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
