1bvd
STRUCTURE OF A BILIVERDIN APOMYOGLOBIN COMPLEX (FORM B) AT 98 K
SAXS Profile

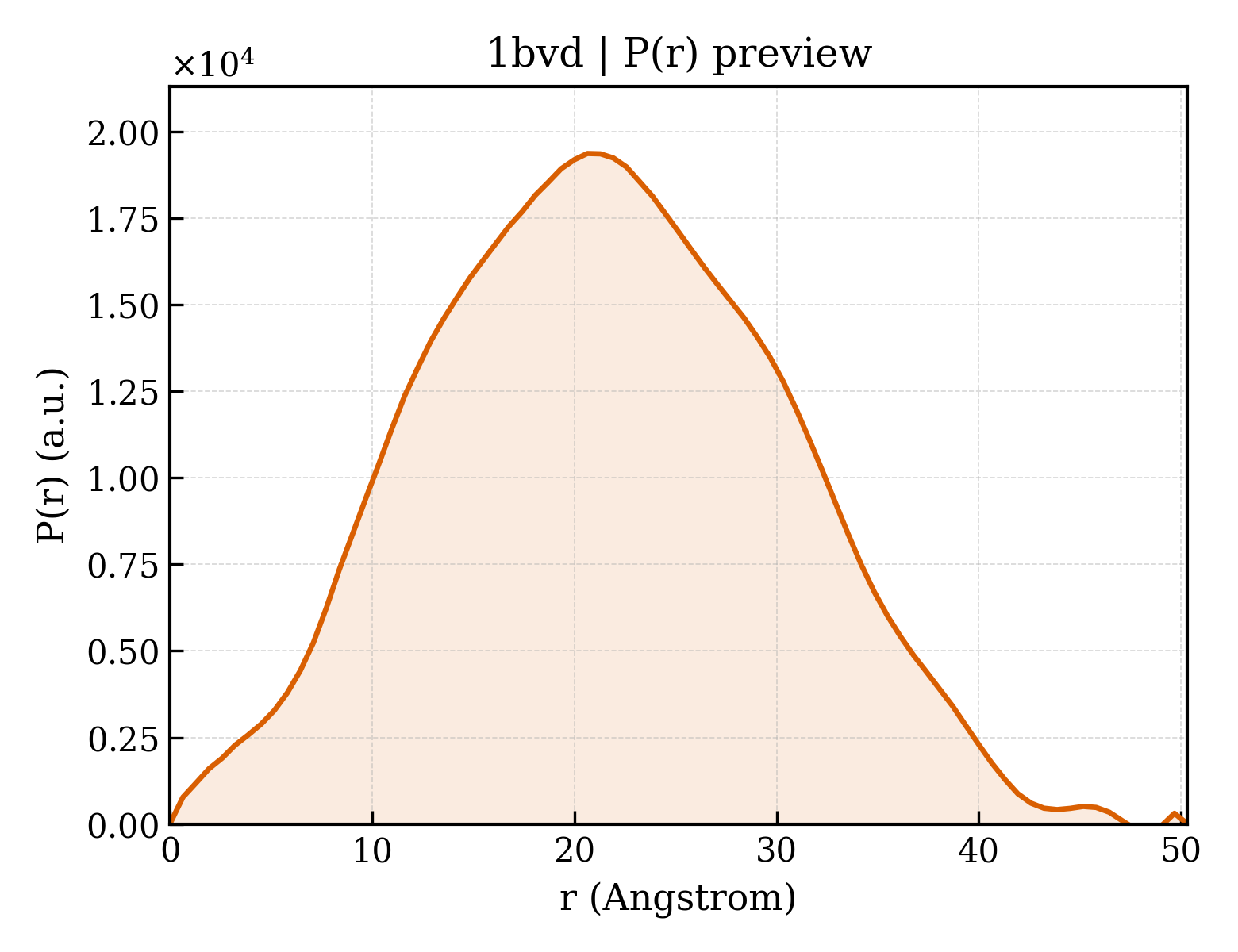

P(r) Distribution
1. Structure Basics
| entry_id | 1bvd |
| deposition_date | 1994-12-16 |
| title | STRUCTURE OF A BILIVERDIN APOMYOGLOBIN COMPLEX (FORM B) AT 98 K |
| keywords | OXYGEN STORAGE; OXYGEN STORAGE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.48 Å |
| rg_electron | 15.06 Å |
| i0 | 5537110.00 |
| molecular_weight | 17726.0 kDa |
| excluded_volume | 22517 ų |
| envelope_volume | 24584 ų |
| shell_volume | 13839 ų |
| envelope_diameter | 48.6 Å |
| shell_rg | 20.85 Å |
| envelope_rg | 15.27 Å |
| shape_rg | 15.03 Å |
| total_rg | 16.25 Å |
| total_atoms | 1256 |
| n_residues | 153 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.3 Å |
| rg_real | 16.36 Å |
| rg_real_error | 0.29 Å |
| i0_real | 5.5370e+06 |
| i0_real_error | 5.9070e+04 |
| rg_reciprocal | 16.37 Å |
| i0_reciprocal | 5537000.0000 |
| total_estimate | 0.8218 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.6 Å |
| skewness | 0.090 |
| kurtosis | -0.467 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 841700.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.899; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000 |
