1bvu
GLUTAMATE DEHYDROGENASE FROM THERMOCOCCUS LITORALIS

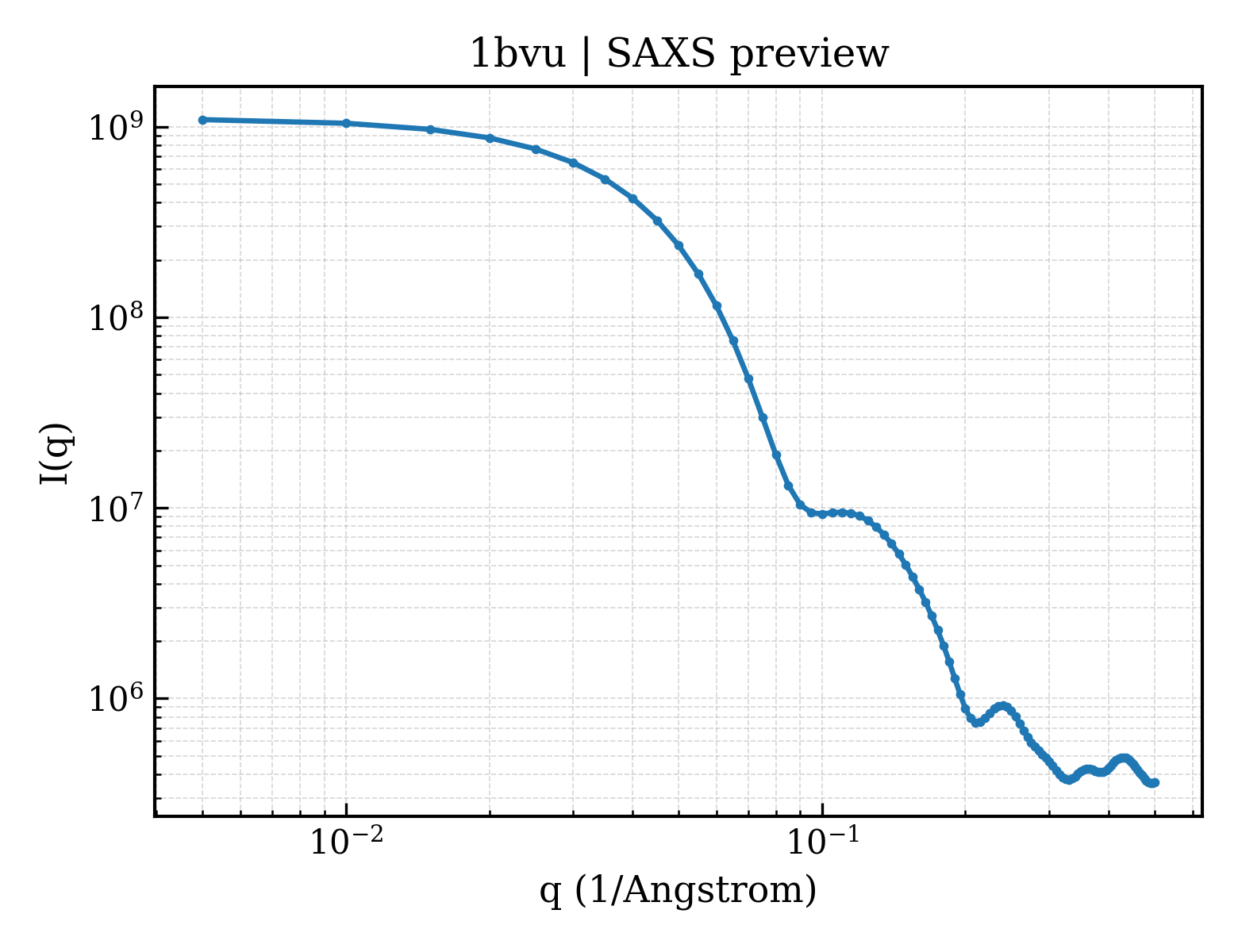

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bvu |
| deposition_date | 1999-07-20 |
| title | GLUTAMATE DEHYDROGENASE FROM THERMOCOCCUS LITORALIS |
| keywords | OXIDOREDUCTASE, Thermal Stability; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 41.95 Å |
| rg_electron | 41.48 Å |
| i0 | 1104890000.00 |
| molecular_weight | 278260.0 kDa |
| excluded_volume | 349930 ų |
| envelope_volume | 440950 ų |
| shell_volume | 84597 ų |
| envelope_diameter | 137.5 Å |
| shell_rg | 48.96 Å |
| envelope_rg | 41.61 Å |
| shape_rg | 41.46 Å |
| total_rg | 41.92 Å |
| total_atoms | 19566 |
| n_residues | 2496 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 132.1 Å |
| rg_real | 41.77 Å |
| rg_real_error | 0.95 Å |
| i0_real | 1.1050e+09 |
| i0_real_error | 1.9650e+07 |
| rg_reciprocal | 41.95 Å |
| i0_reciprocal | 1105000000.0000 |
| total_estimate | 0.8796 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 52.1 Å |
| skewness | 0.209 |
| kurtosis | -0.346 |
| angular_range | — – 0.1900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 184000000.0000 |
| n_real_points | 39 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.788 |
